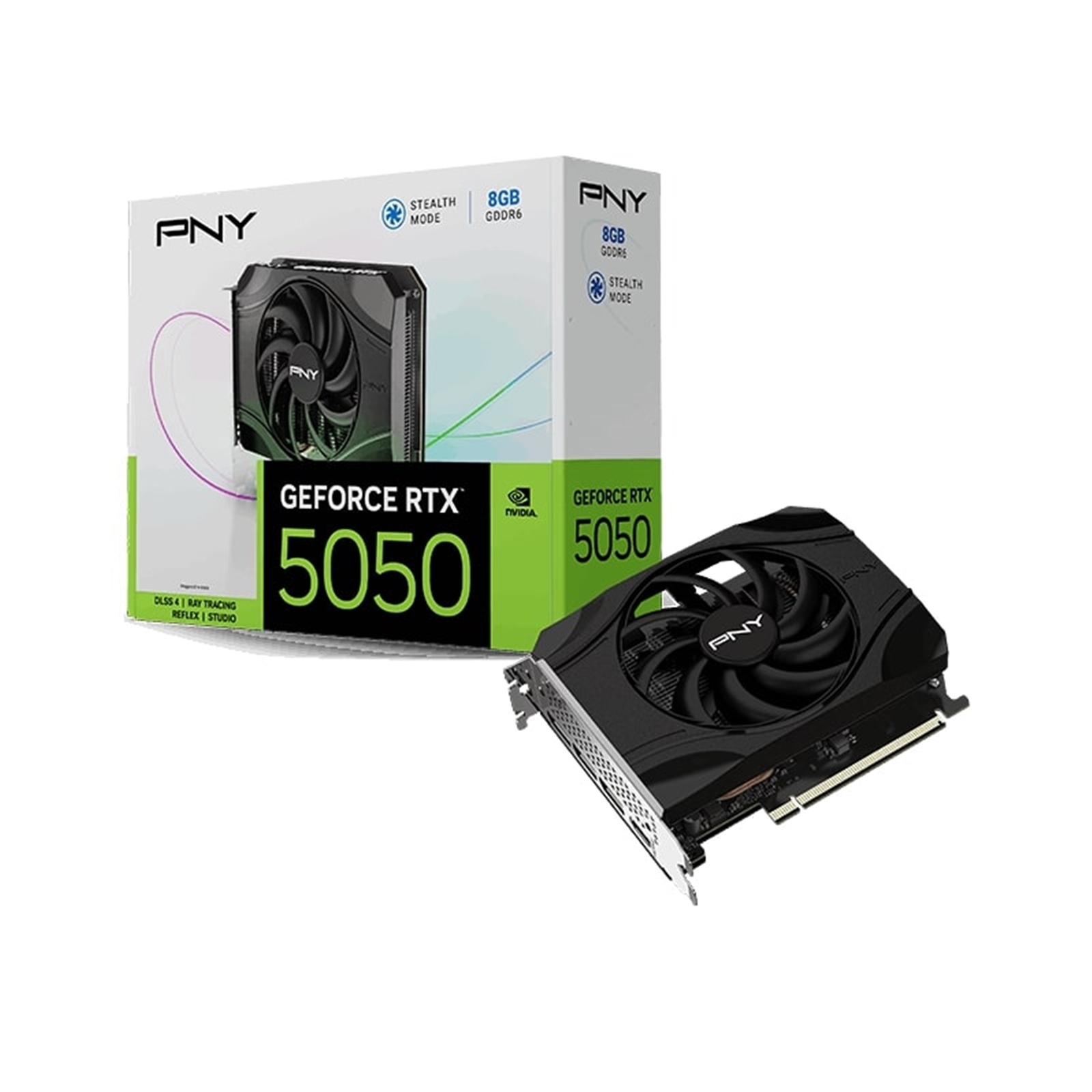

PNY GeForce RTX 5050 Single Fan Graphics Card

Step up to NVIDIA Blackwell architecture with PNY GeForce RTX 5050, featuring 4th-gen Ray Tracing Cores and 5th-gen Tensor Cores for game-changing AI capabilities and performance in top games and apps.

Game Changer

Powered by NVIDIA Blackwell, GeForce RTX Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI Horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at at unprecedented speed, and unleash your creativity with NVIDIA Studio.

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

Features

NVIDIA Blackwell Architecture
8GB GDDR6 Memory
3 x Display Port 1x HDMI
2560 CUDA Cores
130 W Max Power Consumption

Specifications

Architecture
Blackwell

CUDA Cores
2560

Clock Speed
2317 MHz

Boost Speed
2572 MHz

Memory Speed (Gbps)
20

Memory Size
8GB GDDR6

Memory Interface
128-bit

Memory Bandwidth (GB/sec)
Up to 320

TDP
130 W

NVLink
Not Supported

Outputs
DisplayPort 2.1b (x3), HDMI 2.1b

Multi-Screen
4

Resolution
4K at 480Hz or 8K at 165Hz with DSC3

Power Input
8-pin

Bus Type
PCI-Express 5.0 x8

Card Dimensions
147 x 125 x 40 mm
5.8? x 4.9? x 1.6?; 2 Slot

Box Dimensions
242 x 190 x 70 mm
9.53" x 7.48" x 2.76"
