Target Components

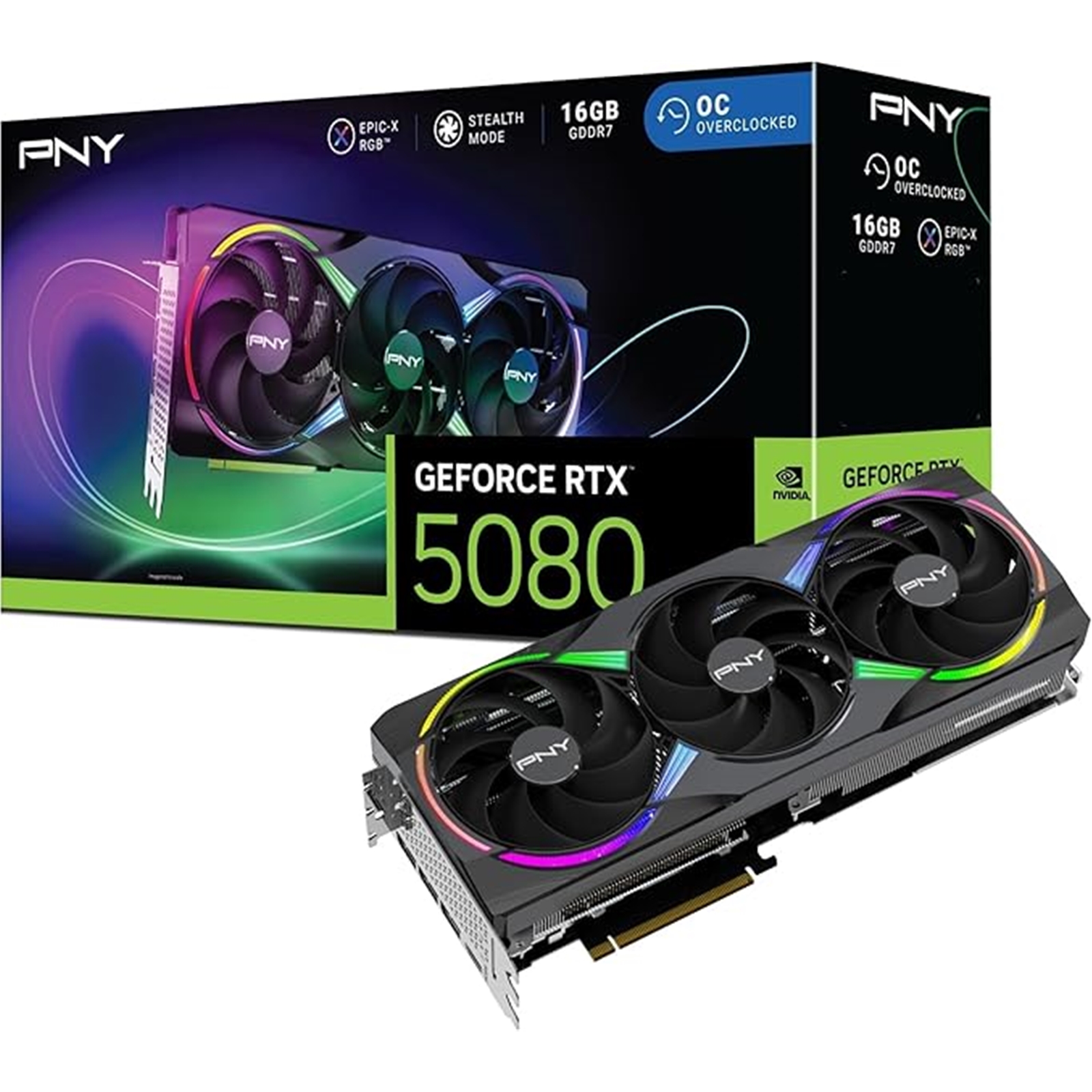

PNY GeForce PNY GeForce RTX 5080 ARGB EPIC-X RGB Overclocked Triple Fan GPU

GAME CHANGER
Gear up for game-changing experiences with the NVIDIA GeForce RTX 5080 and AI-powered DLSS 4. Built with NVIDIA Blackwell and equipped with blistering-fast GDDR7 memory, it lets you run the most graphically demanding games and creative applications with stunning fidelity and performance. With NVIDIA Studio you can bring your creative projects to life faster than ever.

NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

Fourth-Gen Ra Tracing Cores
Built for Mega Geometry

SOLID PHYSICAL CONNECTION
The top two screws shown in the picture above are physically mounted to the cooler, providing a solid physical connection between the mounting bracket and the cooling solution.

EXCELLENT PERFORMANCE
Excellent thermal performance keeping the GPU temperature lower during operating, and super quiet.

TRIPLE FAN COOLING
With three fans working together, heat is distributed and dissipated more efficiently across the GPU surface

CUSTOMIZABLE LIGHTING
Featuring electrifying EPIC-X RGB lighting, for the ultimate controllable lighting experience with endless ARGB lighting possibilities (EPIC-X RGB versions only).

KEY FEATURES

NVIDIA DLSS 4
NVIDIA Reflex 2
GDDR7 Graphics Memory
NVIDIA App
PCI Express Gen 5
NVIDIA Broadcast

SYSTEM REQUIREMENTS

PCI Express-compliant motherboard with one 3.0-width x16 graphics slot
Three 8-pin supplementary power connectors
850 W or greater system power supply2
Microsoft Windows 11 64-bit, Windows 10 64-bit, Linux 64-bit
Internet connection

PRODUCT SPECIFICATIONS

NVIDIA CUDA Cores
10752

Clock Speed
2295 MHz

Boost Speed
2775 MHz

Memory Speed (Gbps)
30

Memory Size
16GB GDDR7

Memory Interface
256-bit

Memory Bandwidth (GB/s)
960

TDP
360 W

Outputs DisplayPort
2.1b with UHBR20 (x3),

HDMI
2.1b

Multi-Screen
4

Resolution
4K 480Hz or 8K 165Hz with DSC

Power Input
1x16 (1x16 to 3x8 adapter included)

Bus Type
PCI-Express 5.0 x16

Card Dimensions
12.94" x 5.42" x 2.35"; 3 Slot
