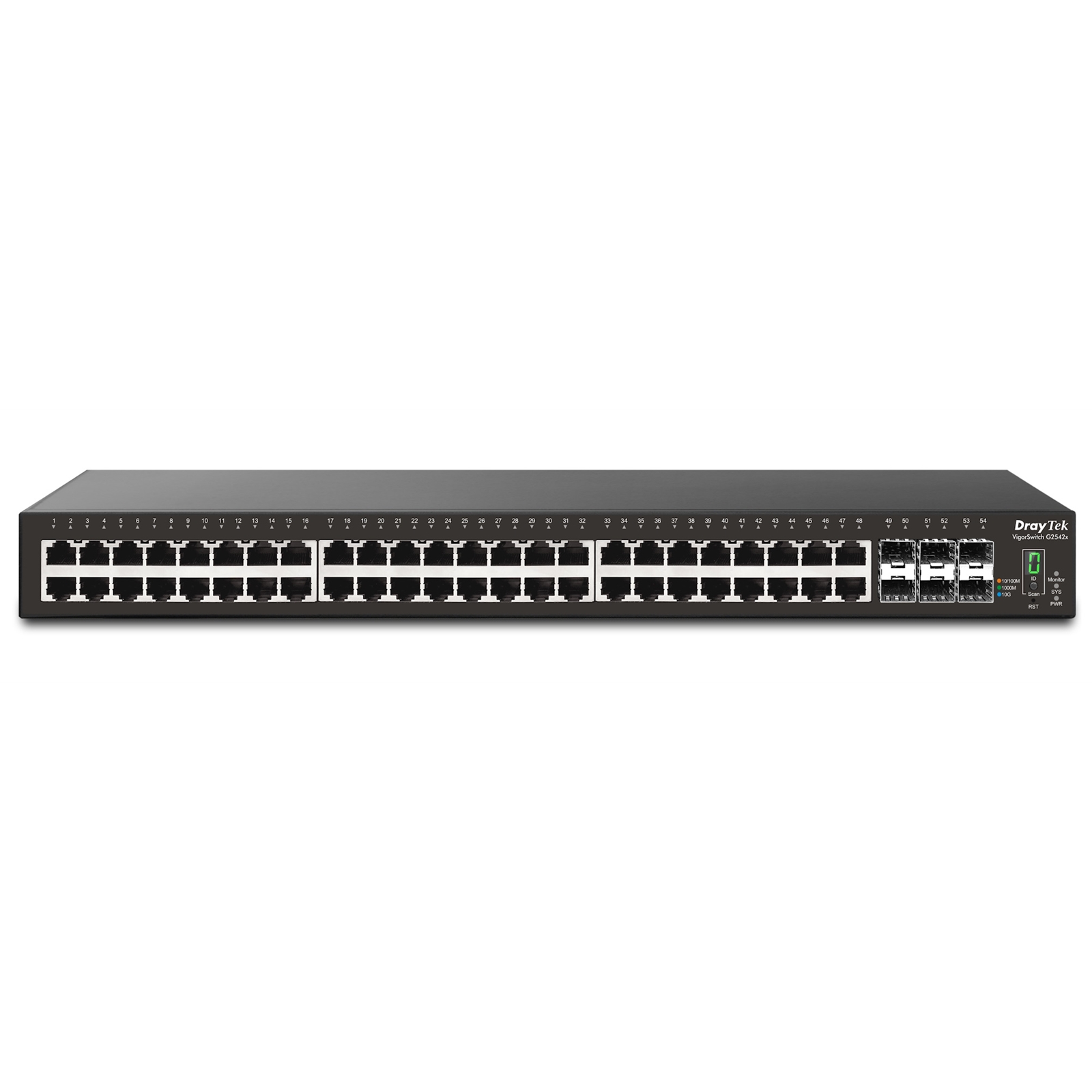

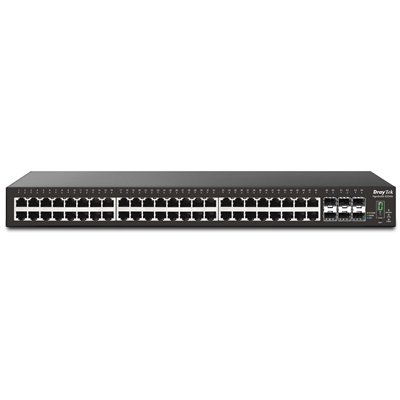

DrayTek VigorSwitch P542x

Product Overview
VigorSwitch P2542x is a L2+ managed switch, with a plethora of management options and enterprise-level feature to improve network stability and security for businesses including stacking, and power backup input. It comes with 48 RJ-45 LAN ports, 6 10Gbps SFP+ slots, and Layer 3 capabilities, including DHCP server, static routes, and VLANs. The switch is also equipped with advanced management features, including ONVIF support, QoS prioritization, and remote monitoring, making it ideal for use in small to medium-sized businesses and enterprise environments. Our cutting-edge and versatile networking switch with power redundancy options allows seamless operation and minimised downtime and comes equipped with both DC and AC power options, to cater to your unique power requirements.

Key Features & Benefits

High Speed 10 Gigabit SFP+ Uplinks
6 SFP+ ports allow your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network.
Benefits: Easily increase network throughput and meet demanding bandwidth requirements.

Advanced Layer 2+ Routing Features
Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch.
Benefits: Provides a fast and secure bridge between networks

Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, DrayTek's Central Switch Management for Vigor routers, or directly via the device's Web Interface.

Benefits: Saves time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.

Auto Surveillance & Voice VLAN
Recognise business-critical traffic from IP cameras and IP phones automatically and use CoS tag for QoS prioritization.
Benefits: Improved scalability and network efficiency.

Great Security Features
Protect your network against unauthorised access and network problems with 802.1X port authentication, IP Conflict Prevention, DHCP Snooping, IP Source Guard and Access Control List.
Benefits: Secure & control access to your network.

ONVIF IP Camera Surveillance Management
Make IP camera management easier with detection and management of ONVIF cameras. View a topology of all cameras connected. Use PoE Device Check and Camera Snapshot Email Alerts to rapidly detect & troubleshoot problems
Benefits: Easily configure, deploy & manage connected IP Cameras.

Key Specification
48 x RJ-45 Gigabit Ethernet Ports
6 x SFP+ 10GbE Ports for Uplink / Fibre
802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
VLAN Routing & Static Route with DHCP server / relay
Virtual Router Redundancy Protocol*
QoS for Application traffic prioritisation
802.1x RADIUS / TACACS+ Port Authentication with Accounting
Voice VLAN for QoS (OUI Mode)
Access Control List (ACL)
Port Mirroring & Link Aggregation
IGMP Snooping & Querying
IPv4 and IPv6 Support with IP Conflict Prevention
Hardware Monitor
Centrally managed or standalone operation
Console Port

Technical Specification (UK Hardware Spec.)

Physical Interfaces
48 RJ-45 Ethernet Ports – 10/100/1000Mbps
6 SFP+ Ports – 1000Mbps/10Gbps
Console Port (RJ-45 physical, RS-232 electrical)
Factory Reset Button
Stacking Scan Button – New!
AC Power Socket
DC Backup Power Input – New!

PoE Specification
48-ports 802.3af & 802.3at (High Power) PoE PSE
400 Watts Total Power Budget for PoE
Up to 30 watts per port
Auto Detection of Powered Device (PD) and Consumption
Levels
Per Port PoE Status LED Indicators
Alert LED for high PoE Usage
Port Power Consumption Monitoring via Web Interface & CLI
Circuit Protection to Prevent Power Interference between Ports
PoE PD Monitoring & Maintenance Features (per port)
– Scheduling
– PoE PD Priority
– Restart PoE PD if not responding to ping
– Restart PoE IP Camera if not providing camera output

VLAN
802.1q Tag-based VLAN
Port-based and MAC-based VLANs
QinQ (Basic)
GVRP – General VLAN Registration Protocol
Up to 256 VLANs (out of 4096 VLAN IDs)
802.1v Protocol-Based VLAN
Voice VLAN (OUI Mode)
Surveillance VLAN (OUI Mode)
Protocol VLAN
MAC-based VLAN
Management VLAN
Port Isolation

QoS
Support 8 priority queues
Port-Based rate control (Ingress & Egress)
Priority queue schedule (WRR or Strict Priority)
Rate Limit
Class of Service
– 802.1p CoS
– DSCP
– CoS-DSCP
– IP Precedence ToS

Network Security
IP Source Guard with ARP inspection
Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)
DoS Attack protection
AAA Authentication
MAC Authentication
Protected Port / Port Isolation
Static Port Security
Dynamic ARP Inspection
DHCP Snooping with Option 82
Loop Detection & Prevention
Access Control Lists (ACL)
– Up to 512 ACL Entries
– Source and destination MAC
– VLAN ID
– IPv4/v6 address
– Protocol
– TCP/UDP port

Spanning Tree
Spanning Tree Protocol (STP)
Rapid Spanning Tree Protocol (RSTP)
Multiple Spanning Tree Protocol (MSTP)

Link Aggregation
Combine multiple ports to increase bandwidth
8 Aggregation Groups
Up to 8 ports in each group
LACP or Static setup
Supports traffic load balancing

Networking Performance
Switching Capacity: 216Gbps
Forwarding Rate: 160.7Mpps at 64 bytes
MAC Addresses Supported: 32,000
Jumbo Frames up to 12KB
Packet Buffer size: 16Mbit
Layer 3 Routing Table

Multicast
Up to 256 multicast groups
Multicast Group Filtering / Throttling
GMP Snooping V2/V3 (BISS)
IGMP V2/V3 Querier
Multicast VLAN registration
MLD Snooping V1/V2
– Immediate Leave
– Report Suppression
– IGMP/MLD Querier

AAA
RADIUS / TACACS+ Authentication for Management
Multiple AAA Server
MAC / Inaccessible Authentication bypass
RADIUS Authentication 802.1X
– Accounting
– Guest VLAN
– Port based Authorisation
802.1X Single/Multi
MAC-based
Web-based
– Attribute Assignment
User Privilege
VLAN
TACACS+ Authentication
– Port Authorisation
– Accounting

ONVIF Surveillance Management
Discovery of ONVIF-compliant IP Cameras
Surveillance Topology
Real-Time Video Streaming
ONVIF Device Maintenance
– Device Information
– Network Settings Configuration
– Time Settings
– Reboot
– Reset to Factory Default Settings
– Ping Check with Mail Alert on disconnection

Management
Central Management
– VigorACS
– VigorConnect
– Vigor Router Switch Management (requires router firmware
support)
Running/Startup/Backup Configuration
sFlow
IPv4 & IPv6 Dual-Stack
LLDP(802.1ab) + MED
Web User Interface (HTTP or HTTPS)
Firmware Upgrade/Backup by HTTP/HTTPS
HTTP (Non-TLS) can be disabled for increased security
Configuration Backup/Restore
Factory Default
System Reboot
Dual Firmware Image (Active & Backup Firmware)
Command Line Interface (CLI) via SSH/Telnet
Console Port (RJ45) for CLI management
OpenVPN Client with Certificate-based auth
SNMP v1, v2c, v3 (with Generic Traps)
RMON Groups 1, 2, 3, 9 (History, Statistics, Alarms, Events)
SNTP (Simple Network Time Protocol)

Diagnostics
Port Status & Usage display
CPU/RAM Usage display
MAC Address Table
Device Check
Syslog
Mail Alert
– Port Status
– Port Speed Change
– System Restart
– Device Check
– IP Conflict
– ONVIF IP Camera Snapshot
Port Mirroring
Ping Diagnostics
Port-based Cable Test

Hardware Monitor
Remote Monitoring through Web Interface & VigorACS
Hardware Monitor Data Recording & Graphing
Email & LED alert on Fan failure, voltage high/low and overheat
Temperature Monitoring
Voltage Monitoring
Smart Fan Control for low noise operation
Power Saving Mode

Layer 3 Networking Features
Static Route
VLAN Routing
Virtual Router Redundancy (VRRP) Protocol

IPv4 Features
DHCP Client
DNS Client
DHCP Server
– Option 82, 66, 67
– DHCP Relay
– DHCP Snooping
– DHCP IP Source Guard

IPv6 Features
Auto Configuration
Static IPv6 Address & Prefix Length
Static IPv6 Default Gateway
IPv6 Neighbour Discovery (ND)
IPv6 Duplicate Address Detection
ICMPv6
DHCPv6 Client

General IEEE Standards Compliance
802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
802.3ae 10GBase-T
802.3x Flow Control Capability
802.3 Auto-negotiation
802.3ad Port trunk with LACP
802.3az Energy Efficient Ethernet
802.1q VLAN
802.1p Class of Service
802.1d Spanning Tree
802.1w Rapid Spanning Tree
802.1s Multiple Spanning Tree
802.1x Port Based Network Access Control
802.1ab Link Layer Discovery Protocol (LLDP)
802.1ad QinQ

Operating Requirements
Operating Requirements
Power Input Requirements: 100-240VAC @ 0.7A
Backup Power Input: DC 12V @ 4.8A
Power supply: Internal
Maximum Input Power Consumption: 64.2 Watts
Cooling: Smart Fan
Operating Temperature: 0 °C to 50 °C
Storage Temperature: -20 °C to 70 °C
Operating Humidity: 10% to 90% RH (non-condensing)
Storage Humidity: 5% to 90% RH (non-condensing)

Physical Specifications
Dimensions: 440 x 281 x 44 mm (W x D x H)
Rack mountable: 1U
Weight: 3.95 kg (excluding SFP modules/cables)
Brackets included for rack or wall mounting

Others
ROHS & CE Compliant
Warranty : 2 Year Manufacturer's RTB
Box Contents
VigorSwitch P2542x Network Switch
UK IEC13 Power Cable
1U Rack Mount Fittings
RJ-45 to RS-232 Console Cable Adapter
Console Cable (RJ-45)
Quick Start GuidOthers
