Strong Dual Band Wi-Fi Speed — Speeds up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)

Wider Signal Coverage — Two high-performance antennas

Bluetooth 5.0 — The Bluetooth 5.0 technology achieves faster speeds and broader coverage

MU-MIMO — Simultaneously serve several devices with no more latency or bandwidth congestion

Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety

Backward Compatibility — Full support for 802.11ac/a/b/g/n standards

Windows Compatible — Supported operating system: Windows 10, 11 (64 bit)

Specifications

Wireless

Wireless Standards
IEEE 802.11 a/n/ac 5 GHz
IEEE 802.11 b/g/n 2.4 GHz

Signal Rate
867 Mbps on 5 GHz
300 Mbps on 2.4 GHz

Reception Sensitivity
5 GHz:
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm

2.4 GHz:
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm

Wireless Security
WPA-PSK/WPA2-PSK/WPA3-SAE

Hardware

Dimensions (W x D x H)
8.9 x 4.8 x 0.85 in (226.3 x 120.8x 21.5 mm)

Antenna Type
2x Fixed High-Performance Omni-Directional Antennas

Others

Package Contents

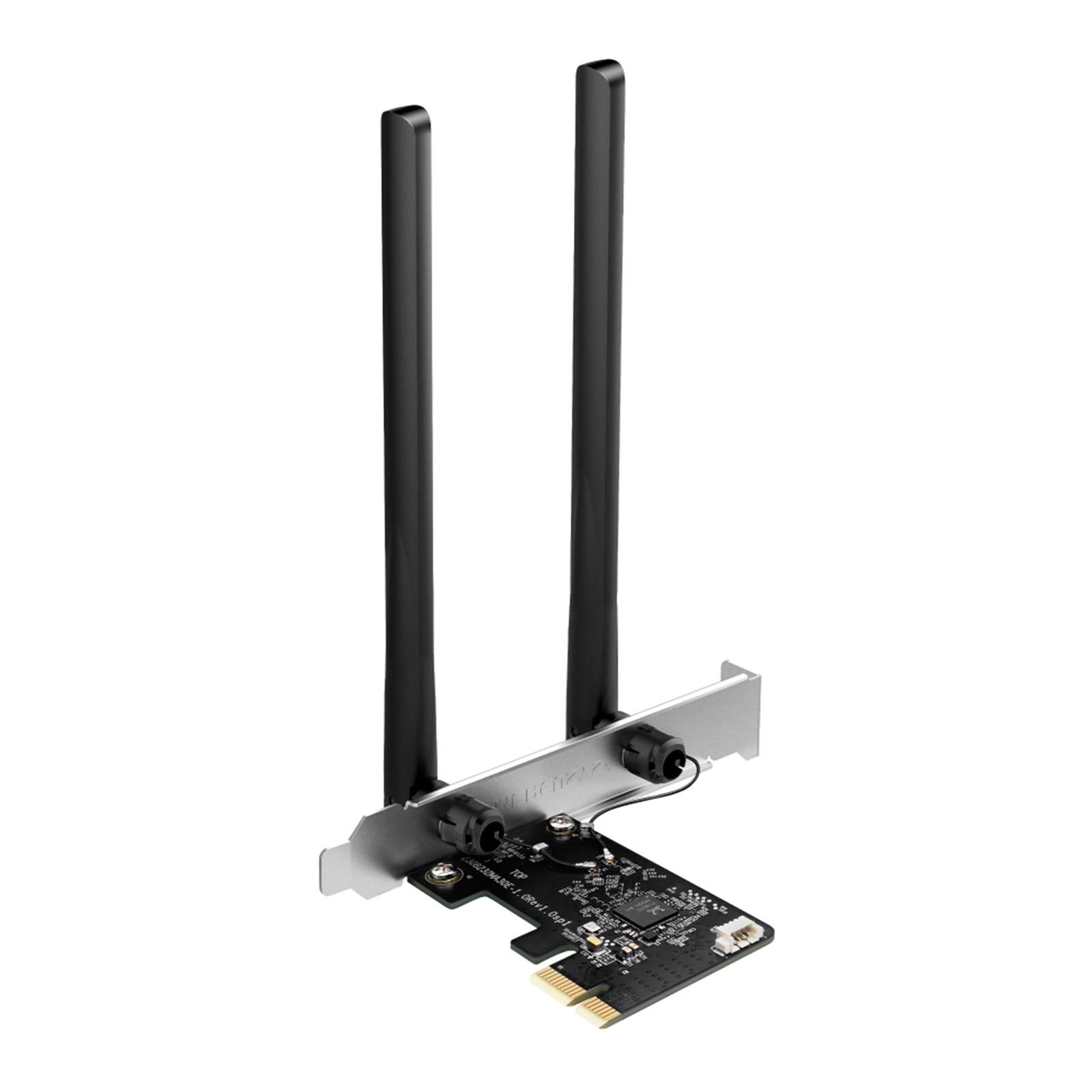

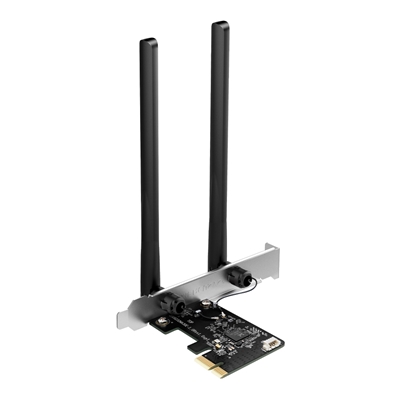

AC1200 Wi-Fi Bluetooth 5.0 PCIe Adapter (MA30E)
Bluetooth Header Cable
Quick Installation Guide
Resource CD

Manufacturer's Website:

www.mercusys.com

Warranty:

3 Years Return to Base Warranty.

DESIGN
Internal	Yes
Certification	FCC, CE, RoHS
Receiver sensitivity	5 GHz: 11ac HT80: -59.0dBm; 11n HT40: -68.5dBm; 11a 54Mbps: -73.5dBm; 11a 6Mbps: -91dBm , 2.4 GHz: 11n HT40: -69.5dBm; 11g 54Mbps: -74dBm; 11b 11Mbps: -87dBm
Product colour	Black
Antenna	Yes
Component for	PC
Antenna direction type	Omni-directional
NETWORKING
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Security algorithms	WPA-PSK, WPA2-PSK, WPA3-SAE
Maximum data transfer rate	1200 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
WLAN data transfer rates supported	11,54,300,867 Mbit/s
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
PACKAGING CONTENT
Quick installation guide	Yes
Resource CD	Yes
PORTS & INTERFACES
Interface	WLAN / Bluetooth
Connectivity technology	Wireless
Host interface	PCI Express
SYSTEM REQUIREMENTS
Windows operating systems supported	Windows 10, Windows 11
WEIGHT & DIMENSIONS
Height	21.5 mm
Width	226.3 mm
Depth	120.8 mm
