4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests

300 Mbps WiFi – Fast WiFi speeds up to 300 Mbps to share your network

Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection

Specifications

Wireless

Wireless Standards
IEEE 802.11b/g/n

Frequency
2.4 GHz

Signal Rate
300 Mbps

Reception Sensitivity
11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm

Transmission Power
< 20 dBm (2.4 GHz)

Wireless Security
WPA-PSK / WPA2-PSK

Wireless Functions
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

Software

DHCP
Server

Hardware

Dimensions (W x D x H)
90x92x150.5 mm

Interfaces
1x 10/100Mbps LAN/WAN Port
1x 10/100Mbps LAN Port
2x 4G/3G External Antenna Ports
1x Nano SIM Card Slot

Button
WPS/Reset Button

Ethernet Ports
1x 10/100 Mbps LAN/WAN Port +
1x 10/100 Mbps LAN

Network Type
EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)

UN:
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 (2100/1900/1800/1700/850/2600/900/700/1700 MHz)
TDD-LTE: B40 (2300 MHz)
HSPA+/UMTS: B1/B2/B4/B5/B8 (2100/1900/1700/850/900 MHz)

Others

Package Contents

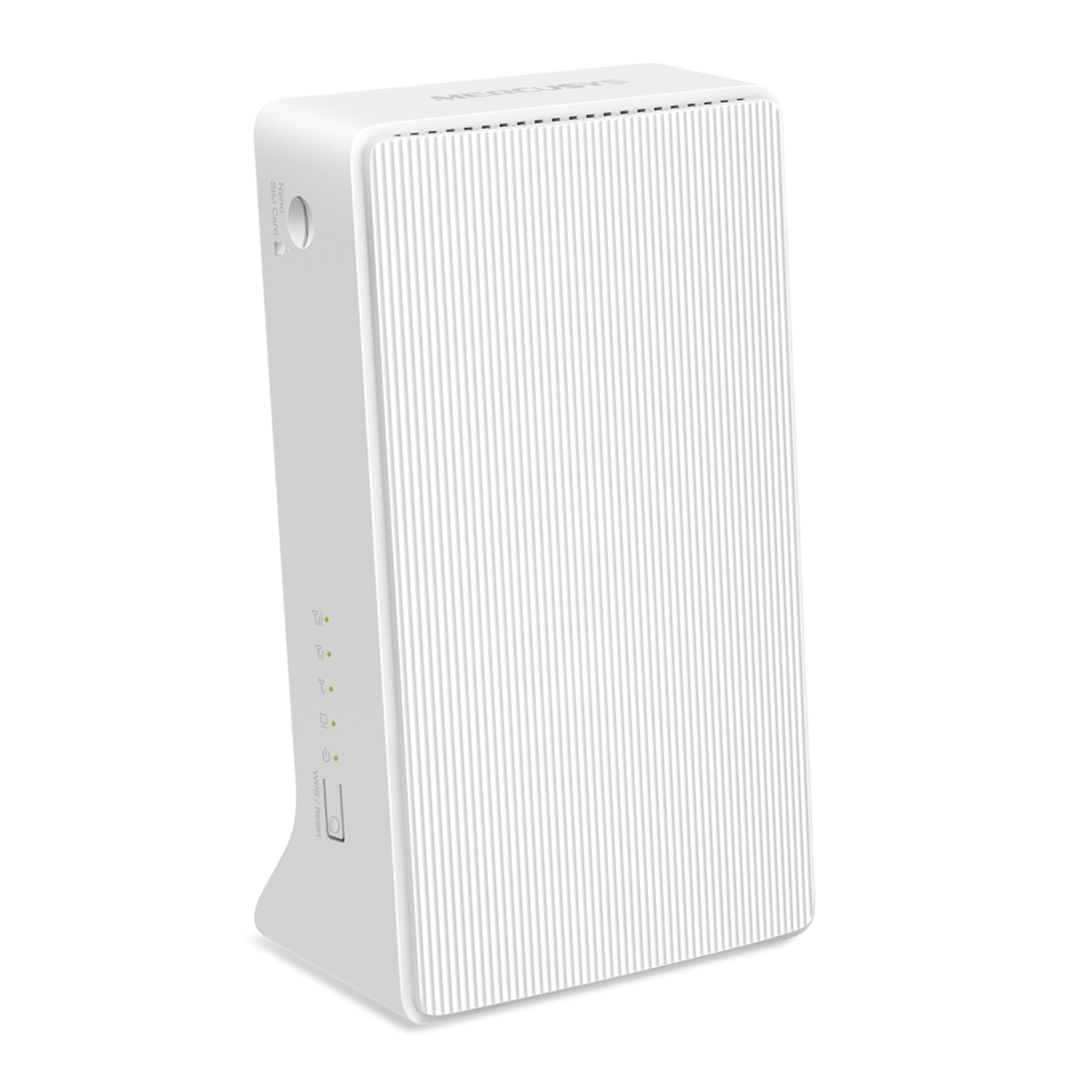

300 Mbps Wireless N 4G LTE Router (MB110-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

Manufacturer's Website:

www.mercusys.com

Warranty:

3 Years Return to Base Warranty.

ANTENNA
Antenna design	Internal
DESIGN
Product colour	White
Indication light	Yes
Product type	Desktop/pole router
FEATURES
Firmware upgradeable	Yes
MANAGEMENT FEATURES
Reset button	Yes
WPS push button	Yes
Wi-Fi Multimedia�(WMM)/(WME)	Yes
MOBILE NETWORKING
Dual SIM support	No
3G bands supported	850,900,2100 MHz
SIM card type	NanoSIM
4G bands supported	700,800,850,900,1800,2100,2300,2500,2600 MHz
4G standard	LTE-TDD & LTE-FDD
3G standards	HSPA, HSPA+, UMTS
SIM card slot	Yes
Mobile network generation	4G
NETWORKING
Cabling technology	10/100Base-T(X)
Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10,100 Mbit/s
Port forwarding	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN interface type	Ethernet
Port triggering	Yes
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
PACKAGING CONTENT
AC adapter included	Yes
Quick installation guide	Yes
PACKAGING DATA
AC adapter included	Yes
Package type	Box
Quick installation guide	Yes
Number of products included	1 pc(s)
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes
USB port	No
POWER
Output voltage	9 V
Output current	0.85 A
Power source type	DC
PROTOCOLS
VoIP protocols	IPv4, IPv6
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
SECURITY
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
System event log	Yes
DMZ support	Yes
Firewall	Yes
Port-based Network Access Control (PNAC)	Yes
WAN CONNECTION
Dual SIM support	No
WAN connection type	RJ-45
DSL WAN	No
Ethernet WAN	Yes
SIM card slot	Yes
3G/4G USB modem compatibility	Yes
WEIGHT & DIMENSIONS
Height	150.5 mm
Width	90 mm
Depth	92 mm
WIRELESS LAN FEATURES
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi band	Single-band (2.4 GHz)
WLAN data transfer rate (max)	300 Mbit/s
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
