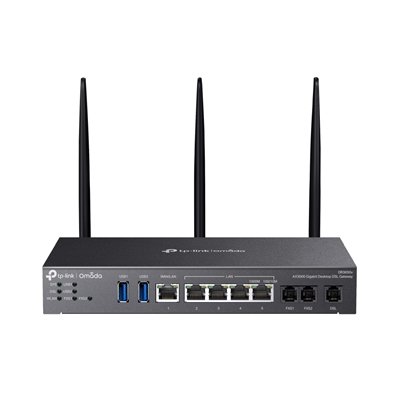

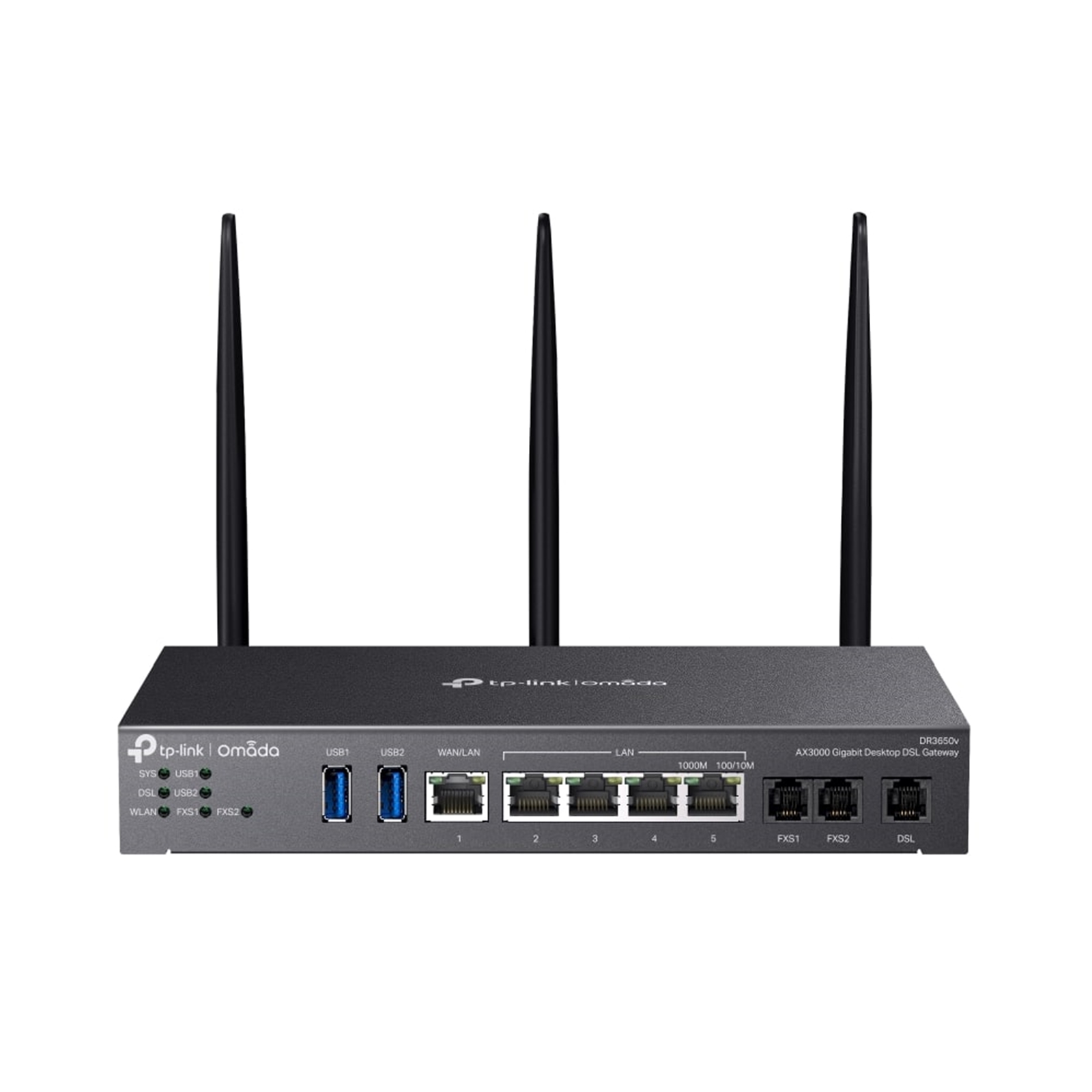

Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway Coming Soon
Key Features
AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*1*4
VDSL2 35b: Supports 350Mbps DSL Access*2
VDSL2/ADSL2+/ADSL2/ADSL Compatibility
Centralized Cloud Management
IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
Load Balancing Between DSL and Ethernet WAN
Omada Mesh Technology*3
3 x RJ11 Ports (2 x FXS, 1 x DSL) & 5 x RJ45 Gigabit Ports & 2 x USB 3.0 Ports
Desktop/Wall Mounting
8.9 x 5.2 x 1.4 in (226 x 131.2 x 35 mm)
Specifications
Security
Access Control
Source/Destination IP Based Access Control
Filtering
Web Group Filtering*5
URL Filtering
Web Security*5
ARP Inspection
Sending GARP Packets
ARP Scanning*5
IP-MAC Binding
Attack Defense
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
Hardware Features
Interface
3 x RJ11 Ports (2 x FXS, 1 x DSL)
5 x RJ45 Gigabit Ports (1 x WAN/LAN Port, 4 x LAN Ports)
2 x USB 3.0 Ports
Button
Reset Button
Power Supply
12VDC / 3.3A Power Adapter
Wi-Fi Frequency & Signal Rate
2.4 GHz: 574 Mbps
5 GHz: 2402 Mbps (HE160)
Flash
256 MB NAND
DRAM
512 MB DDR4
Dimensions ( W x D x H )
8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm) (Antenna dimensions are not included)
Antenna
2.4 GHz: 2x 3 dBi dual-band detachable antennas
5 GHz: 3x 4.5 dBi dual-band detachable antennas
Mounting
Desktop/Wall-mounting
Max Power Consumption
EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)
Performance
GRE
Unencrypted: 624.2Mbps
Encrypted: 301.5Mbps
WireGuard VPN
393.5Mbps
Concurrent Session
150,000
New Sessions /Second
5,100
NAT (Static IP)
937.2 Mbps / 936.1Mbps
NAT(DHCP)
945.8 Mbps / 940.6Mbps
NAT(PPPoE)
942.9 Mbps / 942.9Mbps
NAT (L2TP)
837.4 Mbps / 881.5Mbps
NAT (PPTP)
803.0 Mbps / 910.5 Mbps
IPsec VPN Throughput
ESP-SHA1-AES256: 646.9Mbps
ESP-SHA256-AES256: 642.8Mbps
ESP-SHA384-AES256: 648.9Mbps
ESP-SHA512-AES256: 658.4 Mbps
OpenVPN
129.3Mbps
L2TP VPN Throughput
Unencrypted: 1034.0 Mbps
Encrypted: 570.0 Mbps
PPTP VPN Throughput
Unencrypted: 1165.0 Mbps
Encrypted: 209.0 Mbps
SSL VPN Throughput
126.7Mbps
66 Byte Packet forwarding rate 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate 81,274 pps / 91,275 pps
Wirless Features
Advanced Functions
Seamless Roaming
Mesh (with EAP that supports Mesh)
OFDMA
Beamforming
MU-MIMO
Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Guest Network
Support
Basic Functions
WAN Connection Type
Static IP
Dynamic IP
PPPoE (supports MRU Configuration)
PPTP
L2TP
MAC Clone
Modify WAN Address
DHCP
DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
IPv6
StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN
802.1Q VLAN
IPTV
IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Advanced Functions
Advanced Routing
Static Routing
Policy Routing
RIP*5
OSPF*5
Bandwidth Control
IP-Based Bandwidth Control
Load Balance
Intelligent Load Balance
Application Optimized Routing
Link Backup(Timing, Failover)
Online Detection
NAT
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering*5
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Session Limit
IP-Based Session Limit
VPN
SSL VPN
50 Tunnels
IPsec VPN
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN
PPTP VPN Server
PPTP VPN Client (10)*6
50 Tunnels
PPTP with MPPE Encryption
L2TP VPN
L2TP VPN Server
L2TP VPN Client (10)*6
50 Tunnels
L2TP over IPSec
OpenVPN
OpenVPN Server
OpenVPN Client (5)*6
55 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode
WireGuard VPN
20 Tunnels
Authentication
Web Authentication
No Authentication
Simple Password*6
Hotspot (Local User / Voucher*6 / SMS*6 / Radius*6)
External Radius Sever
External Portal Sever*6
LDAP
Management
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access
Yes. Require the use of Omada Cloud-Based Controller.
Service
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)*5
NTP Synchronize*5
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support
TR-069 (data models of TR-098 and TR181 are supported)
Zero-Touch Provisioning
Yes. Require the use of Omada Cloud-Based Controller.
Management Features
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
Others
Certification
CE, RoHS
Package Contents
DR3650v
Power Adapter
Ethernet Cable
Phone Cable
Quick Installation Guide
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
MAC OS, NetWare, UNIX or Linux
Environment
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
Warranty:
3 Years Return to Base Warranty.
|
ANTENNA
|
| Antenna gain level (max) |
4.5 dBi |
| Antennas quantity |
5 |
| Detachable antenna(s) |
Yes |
| Antenna design |
External |
DESIGN
|
| LED indicators |
DSL, LAN, USB, WLAN |
| Wall mountable |
Yes |
| Product colour |
Black |
| Indication light |
Yes |
| Product type |
Tabletop router |
DSL FEATURES
|
| ADSL |
Yes |
| ADSL2 |
Yes |
| ADSL2+ |
Yes |
| VDSL2 |
Yes |
FEATURES
|
| Internal memory |
512 MB |
| Internal memory type |
DDR4 |
| Mean time between failures (MTBF) |
671034 h |
MANAGEMENT FEATURES
|
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Reset button |
Yes |
| MU-MIMO technology |
Yes |
MOBILE NETWORKING
|
| SIM card slot |
No |
NETWORKING
|
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| VPN support |
IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Load balancing system |
Yes |
| Built-in FTP server |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Static route |
Yes |
| Policy-based routing |
Yes |
| Port triggering |
Yes |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
Yes |
PACKAGING CONTENT
|
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45), Phone |
| Antenna included |
Yes |
PACKAGING DATA
|
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45), Phone |
| Antenna included |
Yes |
PORTS & INTERFACES
|
| Ethernet LAN (RJ-45) ports |
4 |
| DC-in jack |
Yes |
| RJ-11 ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB port |
Yes |
POWER
|
| Output voltage |
12 V |
| Output current |
3.3 A |
| Power source type |
AC |
PROTOCOLS
|
| Voice codecs |
G.711a, G.711ulaw, G.722, G.726, G.729ab |
| DHCP client |
Yes |
| DHCP server |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
SECURITY
|
| Security algorithms |
WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| NAT functionality |
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering1
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP |
| Access Control List (ACL) |
Yes |
| System event log |
Yes |
| DMZ support |
Yes |
| Network address translation (NAT) |
Yes |
| URL filtering |
Yes |
| Guest access |
Yes |
WAN CONNECTION
|
| WAN connection type |
RJ-45 |
| DSL WAN |
Yes |
| Ethernet WAN |
Yes |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
Yes |
WEIGHT & DIMENSIONS
|
| Height |
35 mm |
| Width |
226 mm |
| Depth |
131.2 mm |
WIRELESS LAN FEATURES
|
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (max) |
2402 Mbit/s |
| WLAN data transfer rate (first band) |
574 Mbit/s |
| WLAN data transfer rate (second band) |
2402 Mbit/s |
