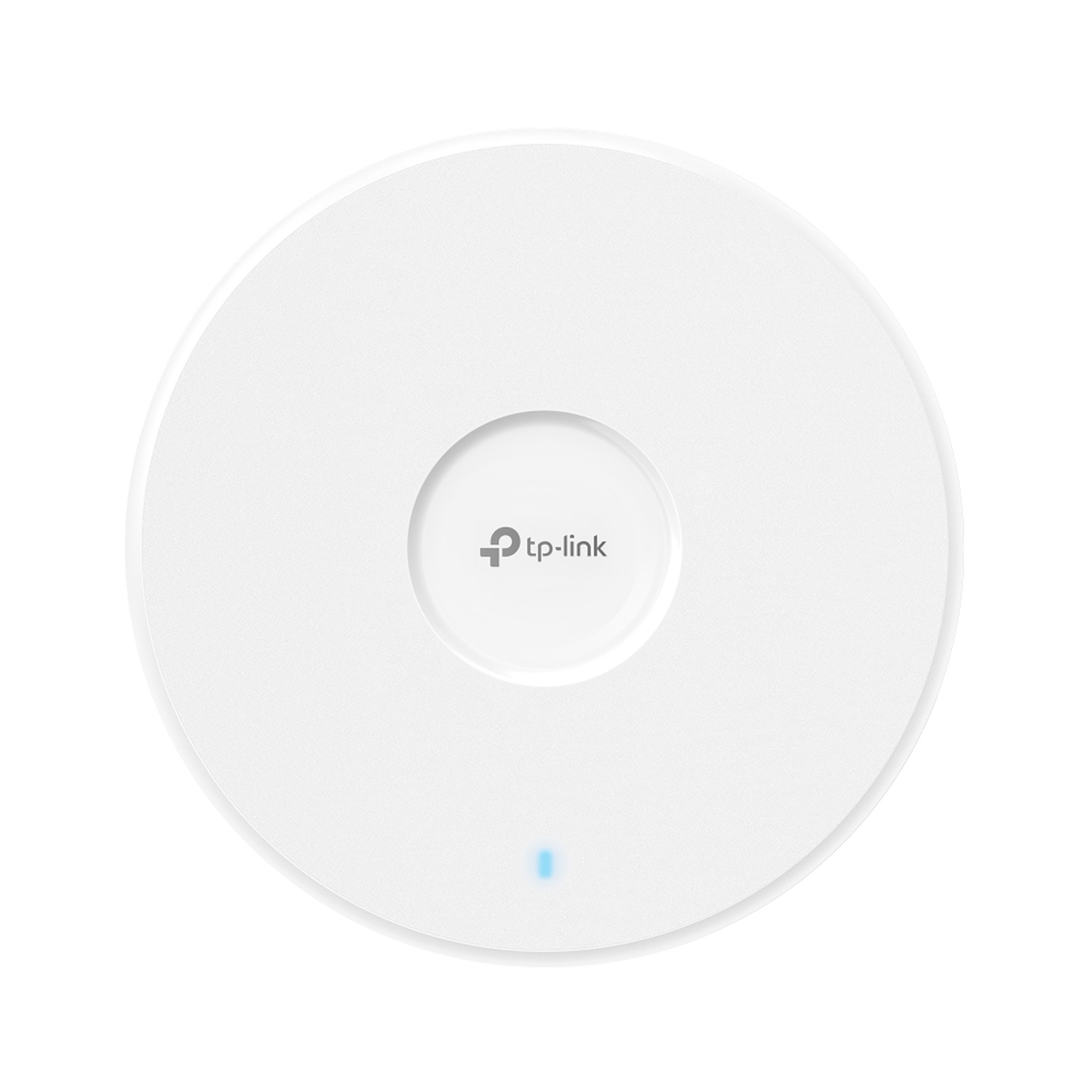

BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Features
BE9300 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
1x 2.5G Port: Unlock the full potential of Wi-Fi 7.
Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
Advanced Functions: Supports centralized management, mesh, and AI roaming
Specifications
HARDWARE FEATURES
Interface
1x 2.5G Ethernet Port
Button
Reset
Power Supply
802.3at PoE or 12V/2.5A DC
Max. Power Consumption
24.05 W (For PoE);
20.92 W (For DC)
Dimensions ( W x D x H )
8.7 x 8.7 x 1.3 in (220 x 220 x 32.5 mm)
Antenna
2.4 GHz: 2 x 3.0 dBi
5 GHz: 2 x 3.0 dBi
6 GHz: 2 x 3.0 dBi
Bluetooth
1 x 4.0 dBi, Bluetooth 5.2
*Firmware update may be required.
Mounting
Ceiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
Coverage
140m squared(1500 ft²)
Concurrent Clients
380+**
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax/be
Frequency
6 GHz, 5 GHz, and 2.4 GHz
Signal Rate
574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)
Wireless Functions
MLO
4K-QAM
MU-MIMO
HE320
Mesh
BSS Coloring
OFDMA
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDS:24(8 on each band)
Wireless Schedule
Reboot Schedule
QoS(WMM)
Rate Limit
Static IP/Dynamic IP
RADIUS Accounting
MAC Authentication
Wireless Security
Captive Portal Authentication
Access Control
Maximum number of MAC Filter: 4,000
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
<20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, band 1&band 2, EIRP)
< 28 dBm (5 GHz, band 3, EIRP)
< 23dBm (6 GHz, EIRP)
Management Features
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Yes
Web-based Management
Yes
OTHERS
Certification CE, FCC, RoHS, IC
Package Content
EAP773
Installation Guide
Ceiling/Wall Mounting Kits
Note: Power Adapter is NOT included.
Environment
Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
Warranty:
3 Years Return to Base Warranty.
Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our
Returns Policy for more information.
|
ANTENNA
|
| Antenna type |
Internal |
CERTIFICATION
|
| Certification |
CE, FCC, RoHS, IC |
DESIGN
|
| Certification |
CE, FCC, RoHS, IC |
| LED indicators |
Yes |
| Product colour |
White |
| Placement |
Ceiling, Wall |
FEATURES
|
| Maximum data transfer rate |
9300 Mbit/s |
| Bluetooth version |
5.2 |
| Number of users |
380 user(s) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Bluetooth |
Yes |
| Quality of Service (QoS) support |
Yes |
| Ethernet LAN data rates |
2500 Mbit/s |
| VLAN support |
Yes |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| MIMO |
Yes |
| Airtime Fairness (ATF) |
Yes |
| MIMO type |
Multi User MIMO |
| Maximum data transfer rate (2.4 GHz) |
574 Mbit/s |
| Maximum data transfer rate (5 GHz) |
2880 Mbit/s |
| BeamForming |
Yes |
| 6 GHz |
Yes |
| Maximum data transfer rate (6 GHz) |
5760 Mbit/s |
LOGISTICS DATA
|
| Quantity per pack |
1 pc(s) |
MANAGEMENT FEATURES
|
| Web-based management |
Yes |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage relative humidity (H-H) |
5 - 90% |
PACKAGING CONTENT
|
| AC adapter included |
No |
| Mounting kit |
Yes |
| Quantity per pack |
1 pc(s) |
PACKAGING DATA
|
| AC adapter included |
No |
| Mounting kit |
Yes |
PORTS & INTERFACES
|
| USB 2.0 ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
SECURITY
|
| Security algorithms |
SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| MAC address filtering |
Yes |
| Access Control List (ACL) |
Yes |
| Number of SSID supported |
24 |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Service Set Identifier (SSID) features |
Multiple SSIDs |
WEIGHT & DIMENSIONS
|
| Height |
32.5 mm |
| Width |
220 mm |
| Depth |
220 mm |
