Target Components

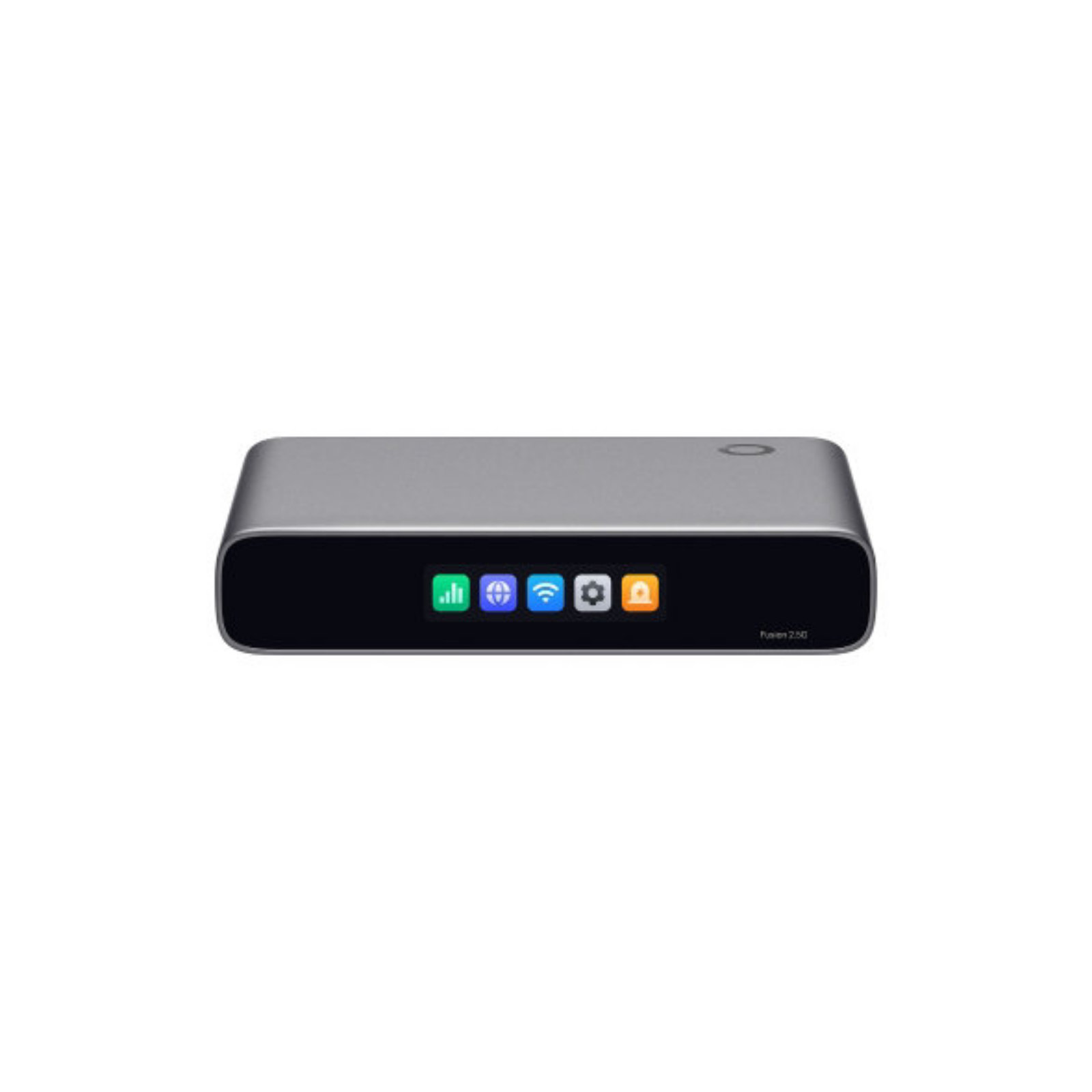

TPLink Omada Fusion 2.5G Gateway

Features

License-Free Cloud Management for Multi-Site Work
Simplified Setup with App-Guided Onboarding via Bluetooth and One-Tap Bulk Device Adoption
Enterprise-Grade Performance: Quad-Core CPU, 5X 2.5G Ports, Up to 4-WAN Load Balancing with Auto Failover, 2.1 Gbps-Class IDS/IPS Throughput*
Quick Troubleshooting via Touchscreen, Reducing On-Site Visits
Secure Remote Network Access in One Click Away with Omada LightLink VPN
Advanced Software Capabilities: App-Based ACL, Auto QoS, Full Mesh SD-WAN, Content Filtering & Ad Blocking, DPI
Flexible Mounting Options: Desktop, Wall-Mountable**, Rack-Mountable**

Overview

Built-In Omada Applications
Network Application

Built-In Omada OS Applications
Network Application

Managed Omada Devices
Recommended for up to 30 devices

Client Capacity
Recommended for up to 300 connected clients

Interface
1x 2.5G RJ45 WAN port
4x 2.5G RJ45 LAN/WAN ports
Up to 4 simultaneous WAN ports

IPS Throughput
2,183 Mbps

Site-to-Site VPN Throughput
1,023 Mbps

Management
Cloud, local, and Omada App management

Mounting

Desktop
Wall-mount (magnetic-mount plate sold separately)
Rack-mount (rackmount kit sold separately)

Dimensions
6.3 x 5.12 x 1.24 in (160 x 130 x 31.5 mm)

Built-in Omada Controller

Cloud Access
Yes

Local Management
Yes

Omada App
Yes

Multi-Site Management
Via the Omada Cloud Management Platform

Restore & Backup
Yes

Automatic Device Discovery
Yes

Network Topology
Yes

Dashboard
Yes

Device List / Client List
Yes

Logs / Alerts / Events
Yes

Batch Firmware Upgrade
Yes

Health Monitoring
Yes

Internet Activity
Yes

Captive Portal
Yes

RADIUS / LDAP Authentication
Yes

802.1XAuthentication
Yes

OUI-Based VLAN
Yes

Diagnostics Tools
Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring

SNMP
v1/v2c/v3

SECURITY

IDS/IPS
Yes

DPI
Yes

Application-Based ACL
Yes

Content Filtering
Yes

Ad Blocker
Yes

Safe Search
Yes

DNS Security
Yes

Firewall
Yes

Attack Defense
Yes

ARP Inspection
Yes

VPN & SD-WAN

Omada LightLink VPN
Yes

Site-to-Site VPN
WireGuard VPN / IPsec VPN

VPN Server
WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN

VPN Client
WireGuard VPN / OpenVPN / L2TP VPN / PPTP VPN

SD-WAN
Full Mesh Mode

VPN Throughput
Omada LightLink VPN: 527 Mbps
IPsec VPN: 1,023 Mbps
WireGuard VPN: 605 Mbps
OpenVPN: 223 Mbps
L2TP VPN: 892 Mbps
PPTP VPN: 193 Mbps
SSL VPN: 250 Mbps

Networking

WAN Connection
Static IP / Dynamic IP / PPPoE / PPTP / L2TP / MAP-E / DS-Lite

Multi-WAN Failover & Load Balancing
Yes

DHCP Server
Yes

VLAN Segmentation
Yes

Bandwidth Control
Yes

QoS
Yes

Static Routing
Yes

Policy Routing
Yes

NAT
Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT

Dynamic DNS
TP-Link DDNS, 3rd-party DDNS, custom DDNS

IPv6
Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode

Bonjour / mDNS
Yes

IGMP v2/v3 Proxy
Yes

HARDWARE

Touchscreen
2.51-inch color LCM touchscreen

Button
Reset button

Memory
2 GB DDR4

Power Supply
USB-C power adapter, 100–240 V AC, 50/60 Hz input, 5 V DC / 3 A output

Max Power Consumption
8.18 W, with power adapter

Enclosure
Polycarbonate

LED
Ethernet

Fan
Fanless

Net Weight
1.12 lb (510 g)

Surge Protection
4 kV surge protection

ESD Protection
±8 kV (Air), ±4 kV (Contact)

Onboarding
Bluetooth or Ethernet

Certifications
CE, FCC, RoHS

Environment
Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C)
Storage Temperature: -22 °F to 158 °F (-30 °C to 70 °C)
Operating Humidity: 10% to 90% RH, non-condensing
Storage Humidity: 5% to 90% RH, non-condensing
