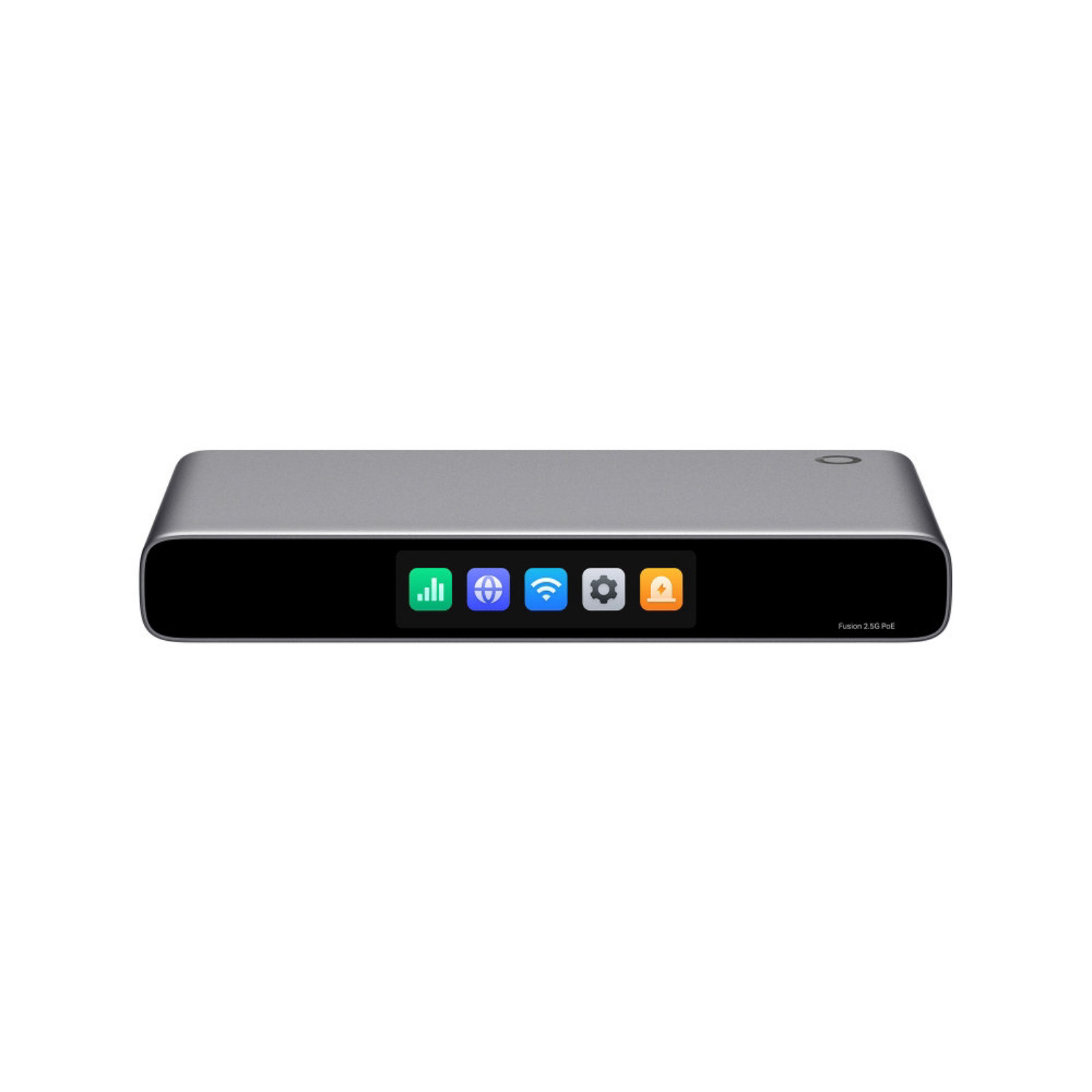

TPLink Omada Fusion 2.5G PoE/b>
Features
License-Free Cloud Management for Multi-Site Work
Simplified Setup with App-Guided Onboarding via Bluetooth and One-Tap Bulk Device Adoption
Enterprise-Grade Performance: Quad-Core CPU, 9× 2.5G Ports, Up to 8-WAN Load Balancing with Auto Failover, 8× PoE+ Ports with 110W Total Budget, 2.1 Gbps-Class IDS/IPS Throughput*
Quick Troubleshooting via Touchscreen, Reducing On-Site Visits
Secure Remote Network Access in One Click Away with Omada LightLink VPN
Advanced Software Capabilities: App-Based ACL, Auto QoS, Full Mesh SD-WAN, Content Filtering & Ad Blocking, DPI
Flexible Mounting Options: Desktop, Wall-Mountable**, Rack-Mountable**
Fusion Gateway at the Center of the Omada Networking Ecosystem
Gateway and controller integrated into a single device, delivering a unified solution that combines networking and centralized management at the core of the Omada networking ecosystem—improving the installation and management experience.
Simplified Setup for Faster Deployment, Boosting Efficiency
Easily set up the Fusion 2.5G PoE via Bluetooth using the Omada App. Automatically discover and batch adopt all other Omada networking devices at once, saving time and simplifying IT deployment.
Quick Troubleshooting via Touchscreen
Reducing On-Site Work
With an innovative 3.69-inch touchscreen, enjoy quick troubleshooting — all at your fingertips. Reduce on-site visit and save time with direct, on-device monitoring.
Secure Remote Network Access, One Click Away
With Omada LightLink VPN, you can securely access your network from anywhere with one click. Powered by Smart Split Tunneling, only essential traffic goes through the VPN, reducing unnecessary VPN load and preserving a smooth user experience.
Overview
Built-In Omada Applications
Network Application
Managed Omada Devices
Recommended for up to 30 devices
Client Capacity
Recommended for up to 300 connected clients
Interface
• 1× 2.5G RJ45 WAN port
• 8× 2.5G RJ45 LAN/WAN ports
• 8× PoE+ ports, 110W Total Budget
• Up to 8 simultaneous WAN ports
IPS Throughput
2,183 Mbps
Site-to-Site VPN Throughput
1,023 Mbps
Management
Cloud, local, and Omada App management
Mounting
Desktop
• Desktop
• Wall-mount (magnetic-mount plate sold separately)
• Rack-mount (rackmount kit sold separately)
Dimensions
8.90 × 5.31 × 1.24 in (226 × 135 × 31.5 mm)
Built-in Omada Controller
Cloud Access
Yes
Local Management
Yes
Omada App
Yes
Multi-Site Management
Via the Omada Cloud Management Platform
Restore & Backup
Yes
Automatic Device Discovery
Yes
Network Topology
Yes
Dashboard
Yes
Device List / Client List
Yes
Logs / Alerts / Events
Yes
Batch Firmware Upgrade
Yes
Health Monitoring
Yes
Internet Activity
Yes
Captive Portal
Yes
RADIUS / LDAP Authentication
Yes
802.1XAuthentication
Yes
OUI-Based VLAN
Yes
Diagnostics Tools
Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring
SNMP
v1/v2c/v3
SECURITY
IDS/IPS
Yes
DPI
Yes
Application-Based ACL
Yes
Content Filtering
Yes
Ad Blocker
Yes
Safe Search
Yes
DNS Security
Yes
Firewall
Yes
Attack Defense
Yes
ARP Inspection
Yes
VPN & SD-WAN
Omada LightLink VPN
Yes
Site-to-Site VPN
WireGuard VPN / IPsec VPN
VPN Server
WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN
VPN Client
WireGuard VPN / OpenVPN / L2TP VPN / PPTP VPN
SD-WAN
Full Mesh Mode
VPN Throughput
• Omada LightLink VPN: 527 Mbps
• IPsec VPN: 1,023 Mbps
• WireGuard VPN: 605 Mbps
• OpenVPN: 223 Mbps
• L2TP VPN: 892 Mbps
• PPTP VPN: 193 Mbps
• SSL VPN: 250 Mbps
Networking
WAN Connection
Static IP / Dynamic IP / PPPoE / PPTP / L2TP / MAP-E / DS-Lite
Multi-WAN Failover & Load Balancing
Yes
DHCP Server
Yes
VLAN Segmentation
Yes
Bandwidth Control
Yes
QoS
Yes
Static Routing
Yes
Policy Routing
Yes
NAT
Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT
Dynamic DNS
TP-Link DDNS, 3rd-party DDNS, custom DDNS
IPv6
Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode
Bonjour / mDNS
Yes
IGMP v2/v3 Proxy
Yes
HARDWARE
Touchscreen
3.69-inch color LCM touchscreen
Button
Reset button
Memory
2 GB DDR4
Power Supply
54V DC / 2.43A Adapter
PoE Budget
110W***
Max Power Consumption
131 W, with power adapter
Enclosure
Polycarbonate
LED
Ethernet
Fan
Yes
Net Weight
1.60 lb (728 g)
Surge Protection
4 kV surge protection
ESD Protection
±8 kV (Air), ±4 kV (Contact)
Onboarding
Bluetooth or Ethernet
Certifications
CE, FCC, RoHS
Environment
Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C)
Storage Temperature: -22 °F to 158 °F (-30 °C to 70 °C)
Operating Humidity: 10% to 90% RH, non-condensing
Storage Humidity: 5% to 90% RH, non-condensing
Warranty:
3 Years Return to Base Warranty.
Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our
Returns Policy for more information.
|
CERTIFICATES
|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
DATA TRANSMISSION
|
| Static route |
Yes |
DESIGN
|
| LED indicators |
LAN |
| Product colour |
Black, Grey |
| Mounting type |
Rack/Desktop/Wall |
| Enclosure material |
Polycarbonate (PC) |
DISPLAY
|
| Display diagonal |
9.37 cm (3.69") |
| Control display unit |
Yes |
ENERGY MANAGEMENT
|
| Power over Ethernet (PoE) |
Yes |
| Input current |
2.43 A |
| DC input voltage |
54 V |
| Power consumption (max) |
131 W |
| Electrostatic Discharge (ESD) protection (air) |
8 kV |
| Electrostatic Discharge (ESD) protection (contact) |
4 kV |
| Electrostatic Discharge (ESD) protection |
Yes |
| Power over Ethernet (PoE) type supported |
PoE+ |
ILLUMINATION/ALARMS
|
| LED indicators |
LAN |
MANAGEMENT FEATURES
|
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Reset button |
Yes |
| Syslog |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
MEMORY
|
| Internal memory |
2048 MB |
| Internal memory type |
DDR4 |
NETWORKING
|
| Networking standards |
IEEE 802.1x |
| VPN support |
Omada LightLink VPN, WireGuard VPN, OpenVPN, IPsec VPN, SSL VPN, L2TP VPN, PPTP VPN |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Dynamic DNS (DDNS) |
Yes |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-30 - 70 °C |
| Operating temperature (T-T) |
-10 - 40 °C |
| Storage relative humidity (H-H) |
5 - 90% |
PACKAGING CONTENT
|
| AC adapter included |
Yes |
| Cables included |
AC, LAN (RJ-45) |
| Manual |
Yes |
PERFORMANCE
|
| Internal memory |
2048 MB |
| Internal memory type |
DDR4 |
| Number of processors installed |
1 |
| Built-in processor |
Yes |
| Display type |
LCM |
| Control display unit |
Yes |
PORTS & INTERFACES
|
| WAN connection |
Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports |
9 |
| DC-in jack |
Yes |
PROTOCOLS
|
| DHCP server |
Yes |
| DMZ support |
Yes |
SECURITY
|
| Security algorithms |
SNMP, SNMPv2c, SNMPv3 |
| Firewall security |
Yes |
| Access Control List (ACL) |
Yes |
| VLAN support |
Yes |
| Network address translation (NAT) |
Yes |
TECHNICAL DETAILS
|
| Number of processors installed |
1 |
| Built-in processor |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
WEIGHT & DIMENSIONS
|
| Weight |
728 g |
| Height |
31.5 mm |
| Width |
226 mm |
| Depth |
135 mm |
