Target Components

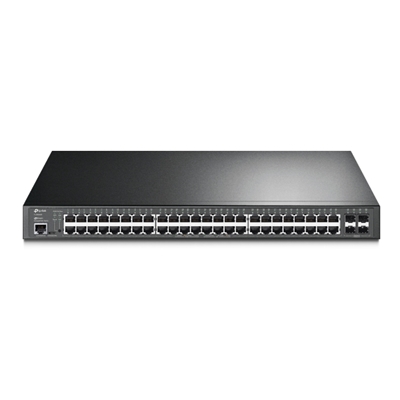

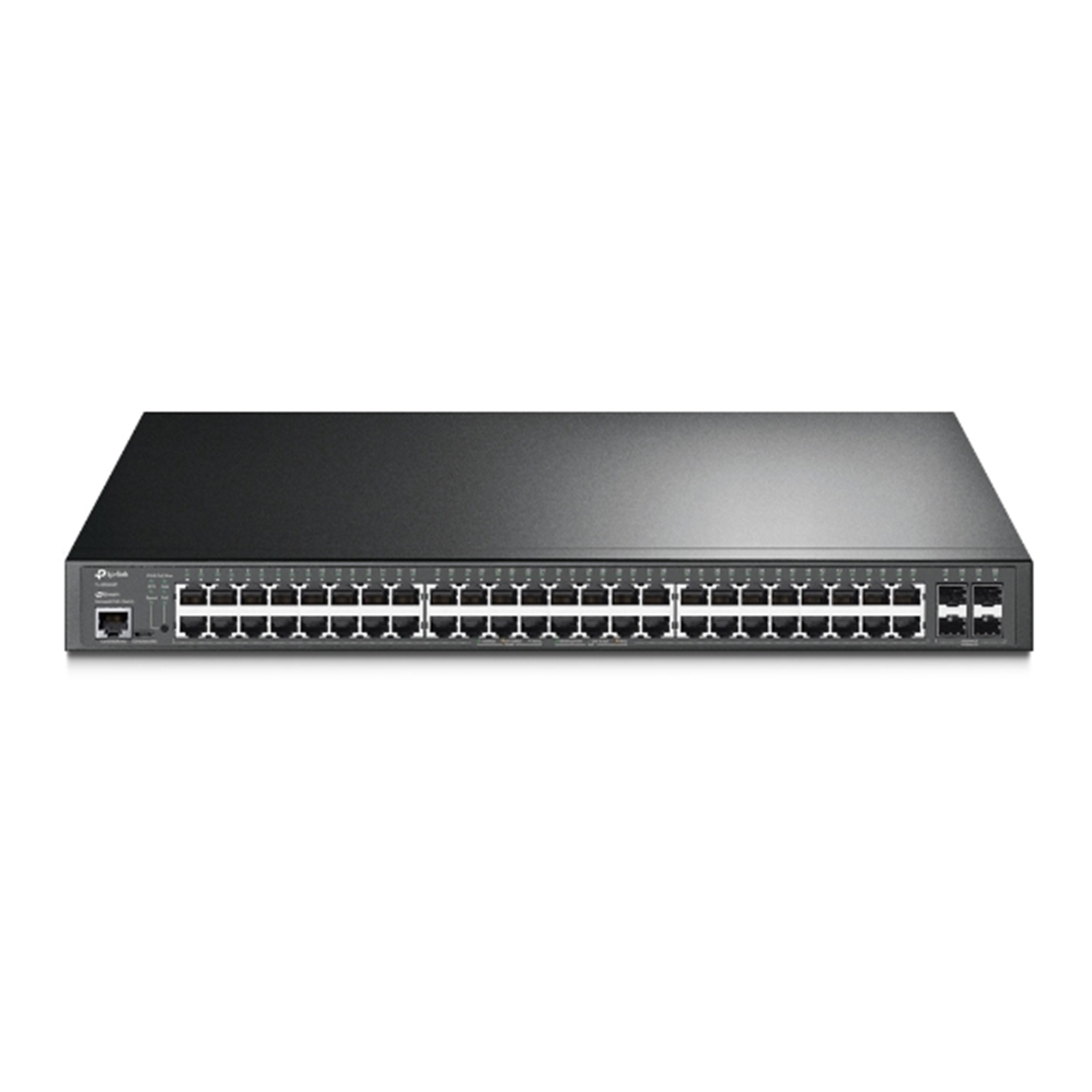

TP-Link TLSG3452P JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+

Key Features
384 W PoE Budget: 48× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W.
Full Gigabit Ports: 48× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

Affordable Solutions Designed for Surveillance
100Mbps PoE Switches
TP-Link 100 Mbps PoE Switch series is designed to address specific SMB surveillance needs and satisfy the demands of most IP cameras. Many robust features like Extend Mode, Priority Mode, and Isolation Mode provide value well beyond basic networking needs, creating a versatile and reliable surveillance network to grow your business.


Smarter Solution for Business Networking
Gigabit / Multi-Gigabit PoE Switches - SDN Integration
Managed switches integrating Omada SDN (Software Defined Networking) provide 100% centralised cloud management to create highly scalable networks. Seamless wireless and wired connections are provided - ideal for hospitality, education, retail, office and more.

Features
- 384 W PoE Budget: 48× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W.
- Full Gigabit Ports: 48× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralised Cloud Management, and Intelligent Monitoring.
- Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

Specifications

Edition
JetStream

Form Factor
1U Rackmount

Total Network Ports
48 x 10/100/1000 (Gigabit) RJ-45
4 x 100/1000 (Gigabit) SFP

PoE Support Type
PoE+

No. of Ports Providing PoE
48 x 10/100/1000 (Gigabit) RJ-45

Other Non-Network Ports
1 x Micro-USB Console
1 x RJ45 Console

Switching Capacity
104 Gbps

Network Protocols
IEEE 802.1ab
IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1x
IEEE 802.3ad (LACP)
IEEE 802.3af
IEEE 802.3at
IEEE 802.3x

Max. Power Consumption
485.4 W (110 V/60 Hz) (with 384 W PD connected) W

Max. PoE Wattage per Port
30 W

Power Supply
Internal AC Power Supply

Dimensions (WxHxD)
440 x 44 x 330 mm
