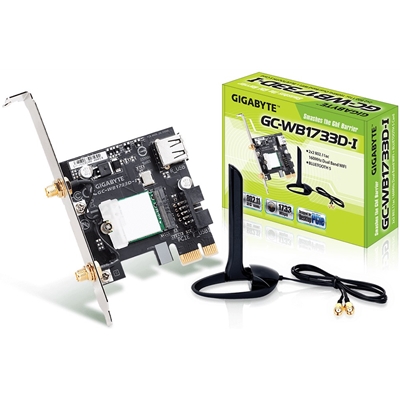

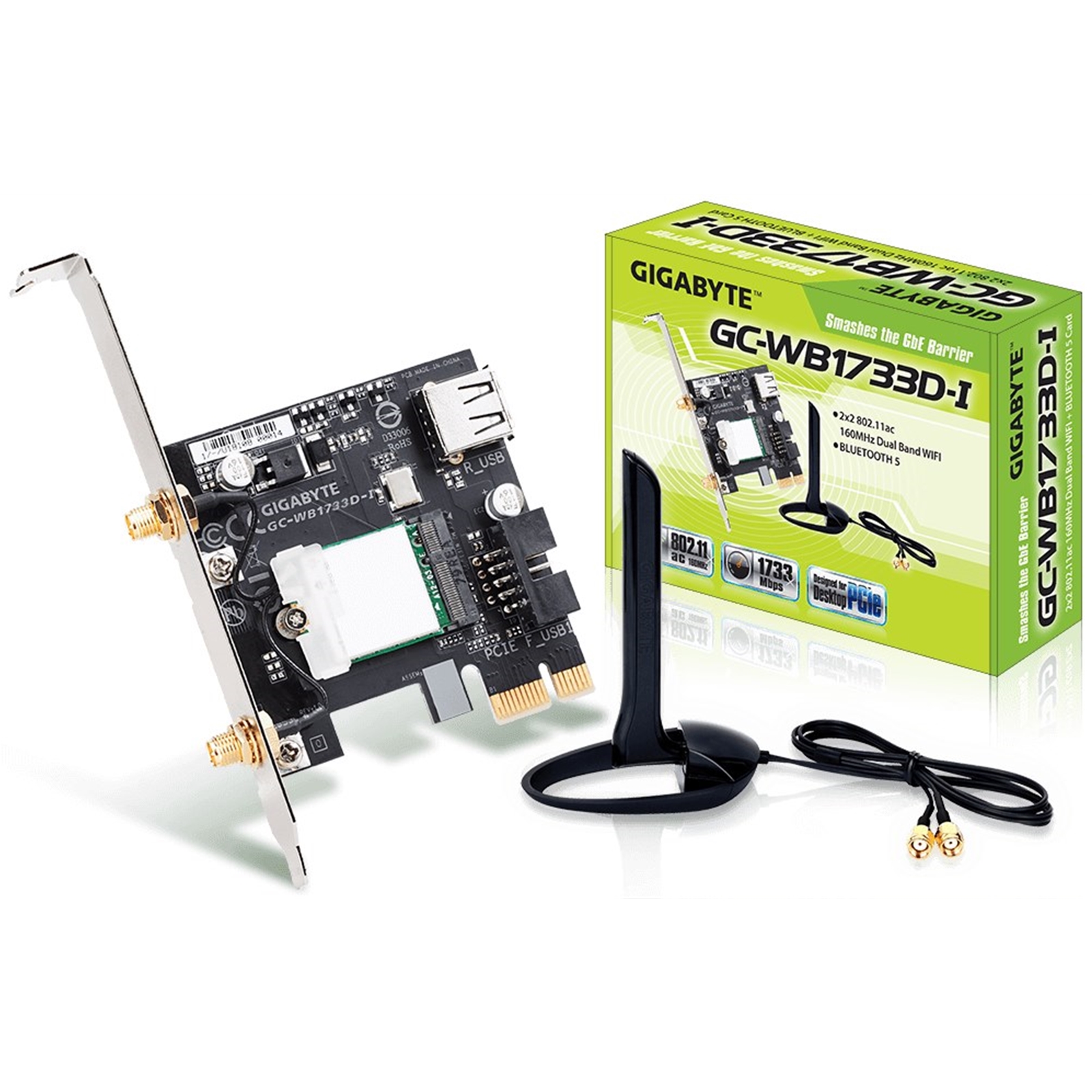

Gigabyte GC-WB1733D-I Wireless AC1750 Bluetooth 5.0 Dual Band PCI-Express WiFi Card

Key Specifications
Internal/ExternalInternal
SpeedUp to 1733 Mbps
High-Gain AntennaYes
/productImages/80/NPGIG-GCWB1733I.JPG
/productImages/80/133655.JPG
Manufacturer : GIGABYTE
EAN : 4719331803513
Manufacturer Part Code : GC-WB1733D-I
Weight : 0.25 kg
Login For Pricing

Key Specifications
Internal/ExternalInternal
SpeedUp to 1733 Mbps
High-Gain AntennaYes
Manufacturer :
GIGABYTE

EAN :
4719331803513

Manufacturer Part Code :
GC-WB1733D-I

Weight :
0.25 kg
Recommended Products
1326Routers & Access Points
See details
1329Mesh & Range Extenders
See details
1327Switches
See details

Intel Wireless-AC 9260 included
IEEE 802.11ac standards compliant
Antenna supports WLAN 2Tx2R transmission
High speed wireless connection up to 1733 Mbps
BLUETOOTH 5

Smashes the GbE Barrier
2x2 802.11ac Dual Band WIFI + BLUETOOTH 5 card GC-WB1733D-I is an exclusive PCIe expansion card that offers support for the latest 2x2 802.11ac 160MHz Dual Band WIFI and BLUETOOTH 5 connectivity.

Bluetooth Function
BLUETOOTH 5

WiFi Function
Wireless: a/b/g/n/ac with wave 2 features, WMM, WMM-PS, WPA, WPA2, WPS2, Protected Management Frames Wi-Fi Miracast as Source, and Wi-Fi Direct
IEEE WLAN Standard: IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w; 802.11r, 802.11k; Fine Timing Measurement based on 802.11REVmc
Security: WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP,EAP-SIM, EAP-AKA, EAP-AKA)
Manufacturer's Website:
Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns

ANTENNA
Antenna type External
Antenna Y
Antennas quantity 1
BANDWIDTH
Data transfer rate (max) 1733 Mbit/s
DESIGN
Internal Yes
Internal Y
Antenna Yes
Antenna type External
Antenna design External
Antenna Y
Antennas quantity 1
Antenna design External
LOGISTICS DATA
Harmonized System (HS) code 85176990
NETWORKING
Wi-Fi standards 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms EAP-AKA, EAP-SIM, EAP-TLS, PEAP, TTLS, WPA, WPA2
Maximum data transfer rate 1733 Mbit/s
Bluetooth version 5.0
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11w
Wi-Fi standards 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Security algorithms EAP-AKA,EAP-SIM,EAP-TLS,PEAP,TTLS,WPA,WPA2
Wi-Fi Yes
Maximum data transfer rate 1733 Mbit/s
Bluetooth version 5.0
Networking standards IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11d,IEEE 802.11e,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.11w
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi Y
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
OTHER FEATURES
Bluetooth version 5.0
Antenna type External
Antennas quantity 1
Harmonized System (HS) code 85176990
Antennas quantity 1
PERFORMANCE
Security algorithms EAP-AKA,EAP-SIM,EAP-TLS,PEAP,TTLS,WPA,WPA2
PORTS & INTERFACES
Interface WLAN / Bluetooth
Interface WLAN / Bluetooth
Internal Y
Connectivity technology Wireless
Host interface PCI Express
Connectivity technology Wireless
Host interface PCI Express
SECURITY
Security algorithms supported EAP-AKA,EAP-SIM,EAP-TLS,PEAP,TTLS,WPA,WPA2
WIRELESS LAN FEATURES
Wireless LAN type 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Wireless LAN connection Y
Wi-Fi standard Wi-Fi 5 (802.11ac)
