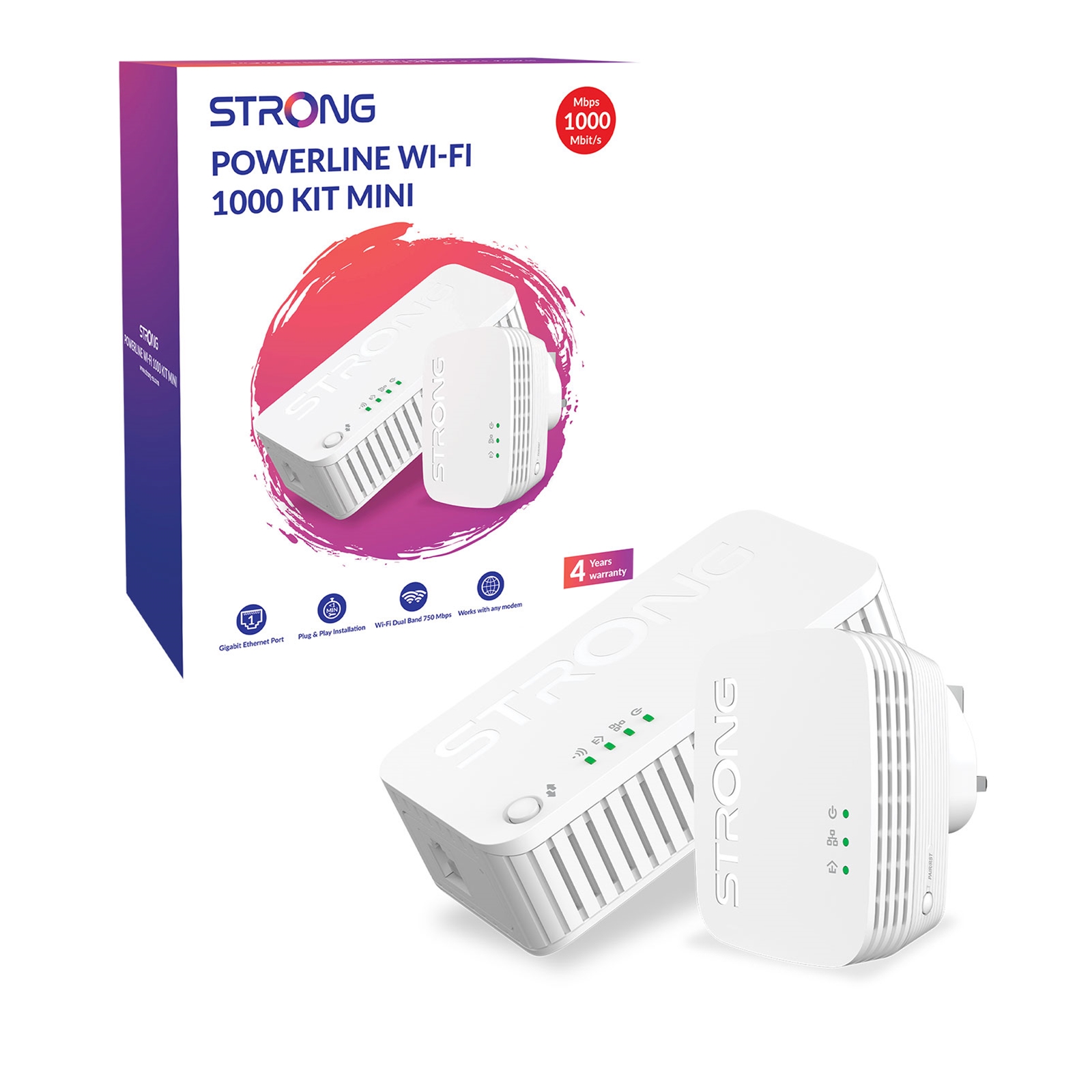

Powerline Wi-Fi 1000 Kit Mini offers a straightforward solution to create a high-speed Wi-Fi hotspot using your home's existing electrical wiring. This kit consists of one Powerline 1000 Mini adapter and one Powerline Wi-Fi 1000 Mini adapter, allowing you to extend your Wi-Fi coverage effortlessly.
Key Features:
- Speeds up to 1200 Mbit/s
- Easy setup with zero-time configuration
- No new wiring required
- Extend Wi-Fi coverage to any room
Usage:
Begin by connecting the Powerline 1000 Mini adapter to your existing Internet modem via an Ethernet port. This establishes an Internet connection available at any power socket. Next, plug in the Powerline Wi-Fi 1000 Mini adapter in the desired room to create a new Wi-Fi hotspot, extending your network's reach.
Technical Specifications
Powerline 1000 Mini Adapter
Frequency Wi-Fi: 2412MHz-2462MHz, 5180MHz-5240MHz, 5250MHz-5350MHz, 5470MHz-5580MHz
Standards Wi-Fi: HomePlug™ AV2, HomePlug™ AV, IEEE 802.11 ac/n/g/b/a, IEEE 802.3, IEEE 802.3u
Signal Rate Wi-Fi: Up to 1200 Mbit/s (300Mbps@2.4GHz+867Mbps@5GHz)
Security Wi-Fi: WPA-Personal, WPA2-Personal, WPA-Personal/WPA2-Personal mixed mode, MAC address filtering
Antenna: 2x 3dBi omnidirectional, adjustable
Transmit Power Wi-Fi: Europe: <23 dBm@5GHz
Supported Channels: 2.4 GHz: 1-13
Interface: 10/100/1000 Mbp LAN port (Auto MDI/MDIX)
Buttons: Connect & Secure, Reset/WPS
LEDs: Power, LAN/WAN, Powerline, Wi-Fi
Size: 60 x 72.5 x 117 mm
Weight: 0.120 kg
Powerline 1000 Mini Adapter
Frequency: 2 MHz ~ 68 MHz
Standards: HomePlug™ AV, IEEE 802.11 ac/n/g/b/a, IEEE 802.3, IEEE 802.3u
Signal Rate: Up to 600 Mbit/s
Security: 128 bit AES
Transmit Power: Europe: <20 dBm@2.4GHz
Interface: 10/100M Ethernet, Extra Power Socket 250 V AC 16 A max.
Buttons: Connect & Secure/Reset
LEDs: Power, Powerline, Ethernet
Size: 63 x 68 x 75 mm
Weight: 0.079 kg
OTHERS
Certification: CE
Package contents: 1x Powerline Wi-Fi 1000 Mini Adapter, 1x Powerline 1000 Mini Adapter, 2x Ethernet cables, 1x Installation instructions
System requirements: Windows 7, 8, 8.1, 10, Mac OS X, Linux, Internet Browser
ENVIRONMENT
Operating temperature: 0 °C ~ +40 °C
Storage temperature: -40 °C ~ +70 °C
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Warranty:
4 Year Return to Base Warranty
