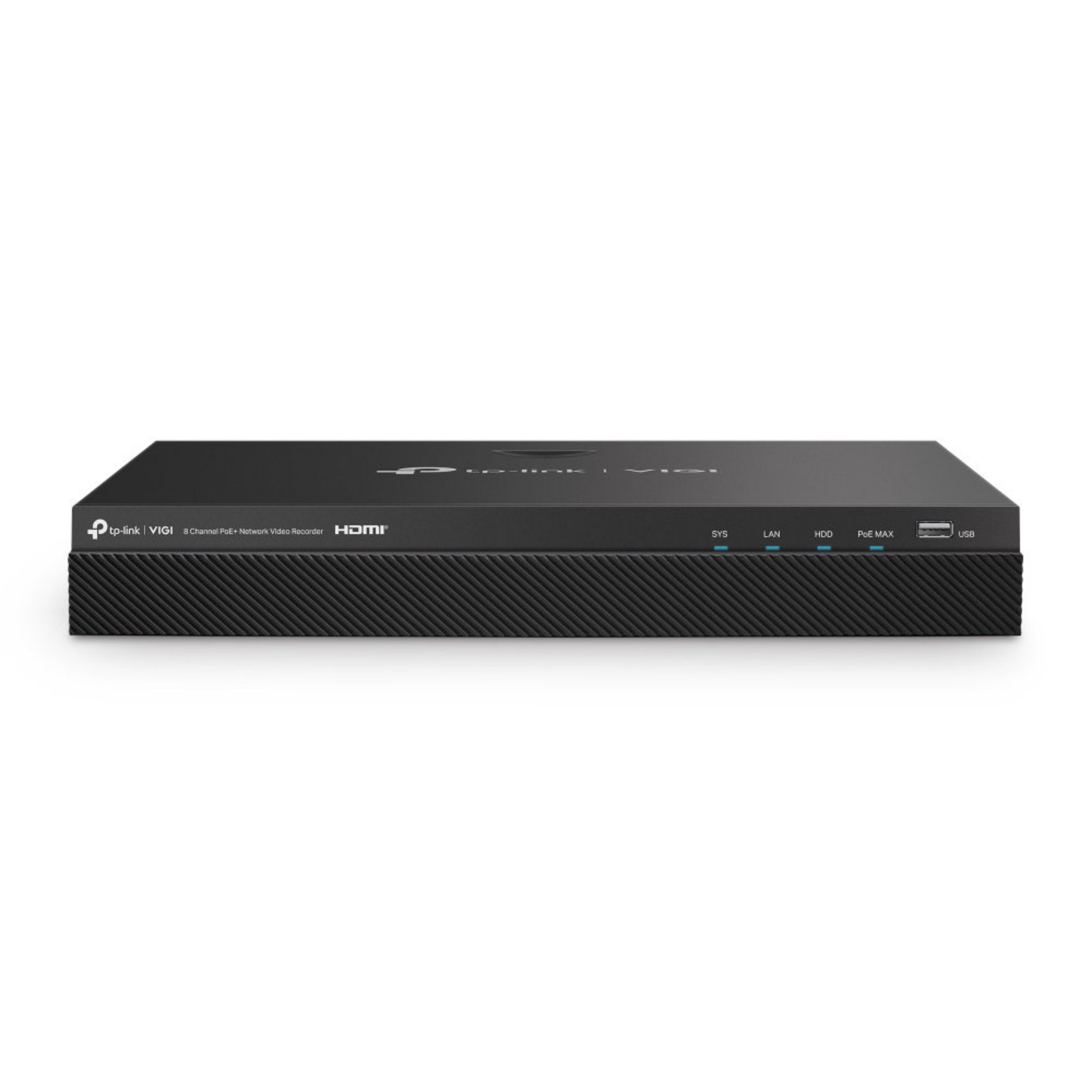

TP-Link NVR2008H-8MP VIGI 8 Channel PoE+ Network Video Recorder
Features
8-Channel Live View and 4K HDMI Video Output
8x 10/100 Mbps PoE+ Ports with 90 W PoE Budget
Up to 8-ch @ 4MP / 4-ch @ 8MP Decoding Capability
8-Channel Synchronous Playback*2
160 Mbps Incoming Bandwidth and 160 Mbps Outgoing Bandwidth
2x SATA Interfaces and 1 Up to 16 TB*3
H.265+ Compression Technology
HDMI and VGA Independent / Simultaneous Output
Remote Monitoring
One-Click System Initialize
VIGI NVRs enable quick camera additions, HDD, initialization, and storage scheduling with a single click, reducing setup expenses.
Specifications
Video and Audio
IP Video Input
8-Channel
Incoming Bandwidth
160 Mbps
Outgoing Bandwidth
160 Mbps
HDMI Output Resolution
1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution
1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode
HDMI and VGA Independent / Simultaneous Output
Multi-View Display
1/4/6/8/9
DECODING
Audio Compression
G.711A/G.711U/G.726
Video Compression
H.265+/H.265/ H.264+/H.264
Record Resolution
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback
8-Channel*2
Capability
30fps:
4-ch @ 8MP, 6-ch @ 5MP, 8-ch @ 4MP
Record Management
Record Mode
Manual Recording
Scheduling Recording
Motion Detection Recording
Playback Mode
Instant Playback
Regular Playback
Tag Playback
Event Playback
Backup Mode
Regular Backup
Video Clip Backup
Playback Function
Play
Pause
Stop
Fast Forward
Fast Backward
Play By Frame
Full Screen
Video Clip
Export Clip
Digital Zoom
Lock Recording
Audio On/Off
NETWORK
Protocol
UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, FTP/SFTP, IPv6, SNMP
Mobile Phone Access
Android, iOS
Web Browser
Chrome (57+), Firefox (52+), Edge (91+), Safari (11+)
Interoperability
ONVIF Profile S, CGI
External Interface
Network Interface
1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface
1 Front USB 2.0 Port, 1 Rear USB 3.0 Port
Audio Interface
1-ch RCA Input; 1-ch RCA Output
Alarm In/Out
6/4
Serial Interface
N/A
Power
1x DC Jack
Reset Button
1
Speaker
N/A
eSATA
1
HDMI
1
VGA
1
HARD DISK
SATA
2 SATA Interfaces
Capacity
Up to 16 TB Capacity for Each HDD*3
PoE
Standard
802.3at/af Compliant
Interface
8, RJ-45 10/100 Mbps PoE+ Ports
PoE Budget
90 W*1 Available for All PoE+ Ports, 30 W Max per Port
Alarm
General Alarm
Motion Detection
Video Tampering
Scene Change Detection
Line-Crossing Detection
Intrusion Detection
Region Entering Detection
Region Exiting Detection
Loitering Detection
Object Abandoned/Removal Detection
Vehicle Detection
Human Detection
Abnormal Sound Detection
Smart Frame
*Note: The alarm function requires the use of a camera.
Anomaly Alarm
Video Loss
Offline and IP Conflict
Disk Exception
Login Exception
Fan Exception
Alarm Linkage
Recording
White Light Alarm
Buzzer
Log
Audible Alarm
*Note: The alarm function requires the use of a camera.
GENERAL
Storage Temperature
-40 to 70 °C (-40 to 158 C)
Storage Humidity
10%~90% RH Non-Condensing
Package Content
VIGI Network Video Recorder
Power Adapter
HDD Power Cables
HDD Data Cables
Terminal Blocks
Mounting Brackets
Screws
Rubber Feet
Mouse
Quick Installation Guide
Working Temperature
NVR: -10 to 55 °C (14 to 131 F)
Power Adapter: 0 to 40 °C (32 to 104 F)
Working Humidity
10%~90% RH Non-Condensing
Dimensions( W X D X H )
13 x 11.2 x 1.8 in (330 x 285 x 45 mm)
Net Weight
2.1 Kg*4
Gross Weight
3.9 Kg*4
Power Supply
53.5V DC/2.43A
Max. Power Consumption
8.5 W (Without Disk)
40 W (With Disk)
Certifications
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
