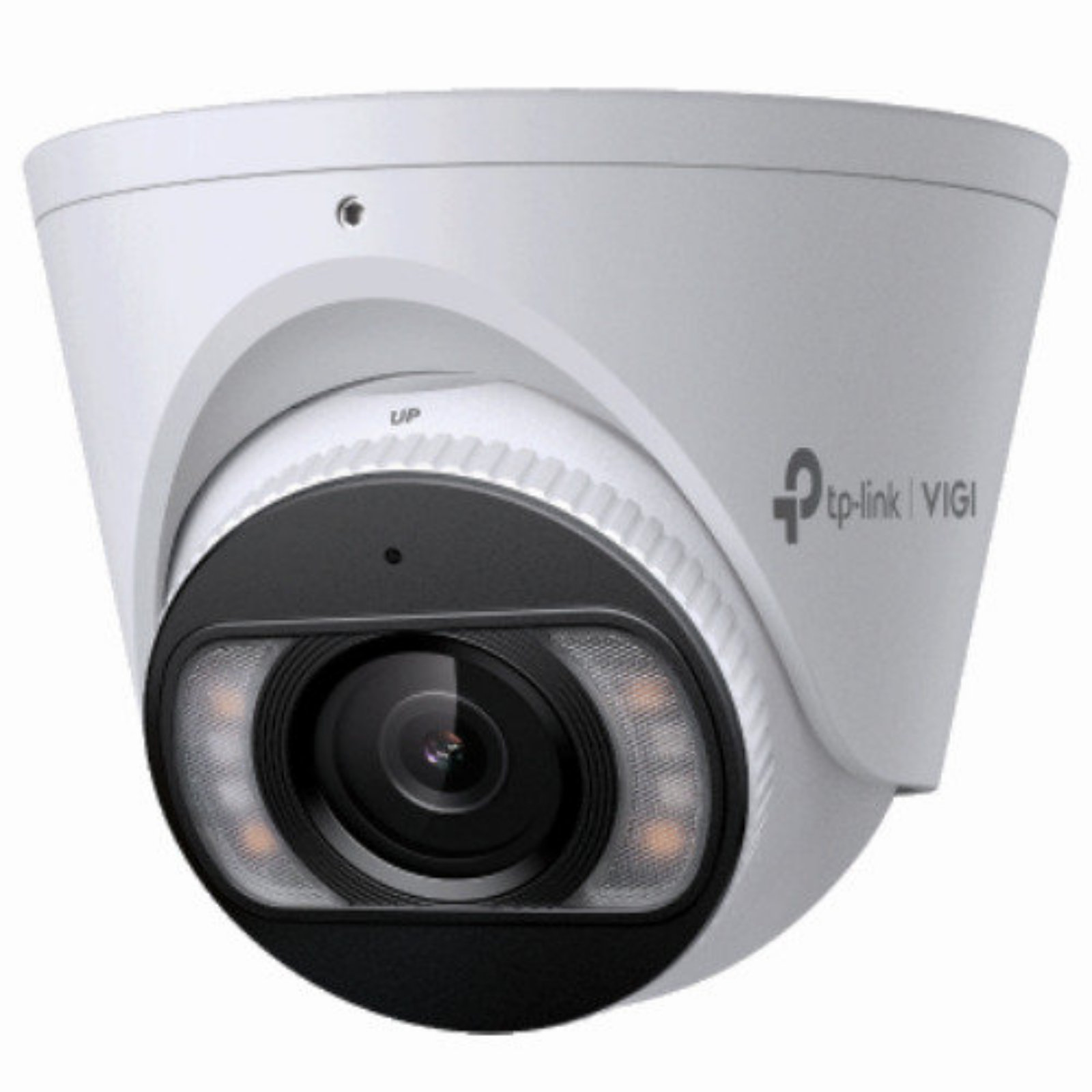

TP-Link InSight S485 VIGI 8MP Full-Color Turret Network Camera

Features
4K (8MP) Ultra HD and 24h Full-Color
People & Vehicle Analytics
Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Active Defense and Two-Way Audio
IP67 Waterproof
H.265+ Compression Technology
12V DC/PoE

4K Empowered. Security Reinvented.
8MP Full-Color Turret Network Camera

People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures neutral whites in an image, regardless of the lighting conditions.

Specifications

CAMERA

Image Sensor
1/2.72 Progressive Scan CMOS

Shutter Speed
1/3 to 1/10000 s

Slow Shutter
Yes

Minimum Illumination
0.005 Lux; 0 Lux with IR/White light

Day/Night Mechanism
IR Cut Filter

Day/Night Switch
Unified/ Scheduled/ Auto

LENS

Type
Fixed Focal Lens

Focal Length
2.8/4 mm

Aperture
F1.6

FOV
2.8 mm:
Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°

4 mm:
Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6°

Lens Mount
M12*P 0.5

DORI Distance
2.8 mm
Detect: 85 m (278 ft)
Observe: 35 m (116 ft)
Recognize: 17 m (56 ft)
Identify: 8 m (28 ft)

4 mm
Detect: 107 m (350 ft)
Observe: 44 m (146 ft)
Recognize: 21 m (70 ft)
Identify: 11 m (35 ft)

Angle Adjustment (Manual)

Range
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

ILLUMINATOR

IR LED
Quantity: 4
Range: 30m
Wavelength: 850nm

White LED
Quantity: 4
Range: 30m

Illuminator On/Off Control
Auto/Scheduled/Always on/Always off

VIDEO

Max. Resolution
3840 X 2160

Main Stream

Frame Rate
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

Resolution
3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080,
1280x720

*Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.

Sub-Stream

Frame Rate
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

Resolution
848x480, 704x576, 640x480, 640x360, 352x288, 320x240

*Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.

Bit Rate Control
CBR, VBR

Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264

H.264 Type
High Profile

H.264+
Main Stream Supported

H.265 Type
Main Profile

H.265+
Main Stream Supported

Video Bit Rate
Main Stream: 256 Kbps to 8 Mbps
Sub-Stream: 64 Kbps to 512 Kbps


Image Settings
Mirror
Brightness
Contrast
Saturation
Sharpness
Exposure
WDR
White Balance
Prevent Overexposure to Infrared Light
HLC Adjustable by Client Software

Image Enhancement
BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range
120 dB

*Note: When People & Vehicle Analytics is enabled, only DWDR is supported.

SNR
= 52 dB

Image Parameters Switch
Yes

Privacy Mask
Up to 4 Masks

ROI
1 Region

OSD Setting
Yes


AUDIO

Audio Communication
Two-Way Audio

Audio Input
Yes

Audio Output
Yes

Audio Compression
Yes

Audio Sampling Rate
8KHz

Environment Noise Filtering
Yes

Audio Bit Rate
64 Kbps(G.711 alaw)

NETWORK

Protocol
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

ONVIF
Yes

API
ONVIF Profile S/T/G

Simultaneous Live View
3 Main Streams & 3 Sub-Streams

Client
VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS

Web Browser
Google Chrome 57 and above
Firefox 52 and above
Safari 11 and above
Microsoft Edge 91 and above

Cloud
Yes

Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT

Smart Event
Intrusion Detection
Line-Crossing Detection
Region Entering Detection
Region Exiting Detection
Object Abandoned Detection
Object Removal Detection
Loitering Detection
People Detection
Vehicle Detection
Abnormal Sound Detection
Scene Change Detection

Basic Event
Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
Video Tampering Detection
Exception ( Illegal Login)

Alarm Linkage
Memory Card Video Recording
Message Push
Audible Warning
White Light Flashing

Linkage Method
N/A

Output Notification
Message Push

Deep Learning Function
People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

INTERFACES

Network Interface
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Alarm
N/A

Reset Button
Yes

Power
DC Power Port

On-board Storage
Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**

Built-in Microphone
Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera

Built-in Speaker
Yes

Audio
N/A

GENERAL

Operating Temperature
-30–60 °C

Storage Temperature
-40–60 °C

Operating Humidity
95% or Less (Non-Condensing)

Storage Humidity
95% or Less (Non-Condensing)

Package Content
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories

Material
Metal

Net Weight
0.48 Kg

Power Supply
12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 12.5 W

Protection
IP67

Product Dimensions (L x W x H)
4.4 x 4.4 x 3.3 in (111 x 111 x 83.7 mm)

Certifications
CE, NTRA, VCCI, KC, BSMI, FCC, IC
