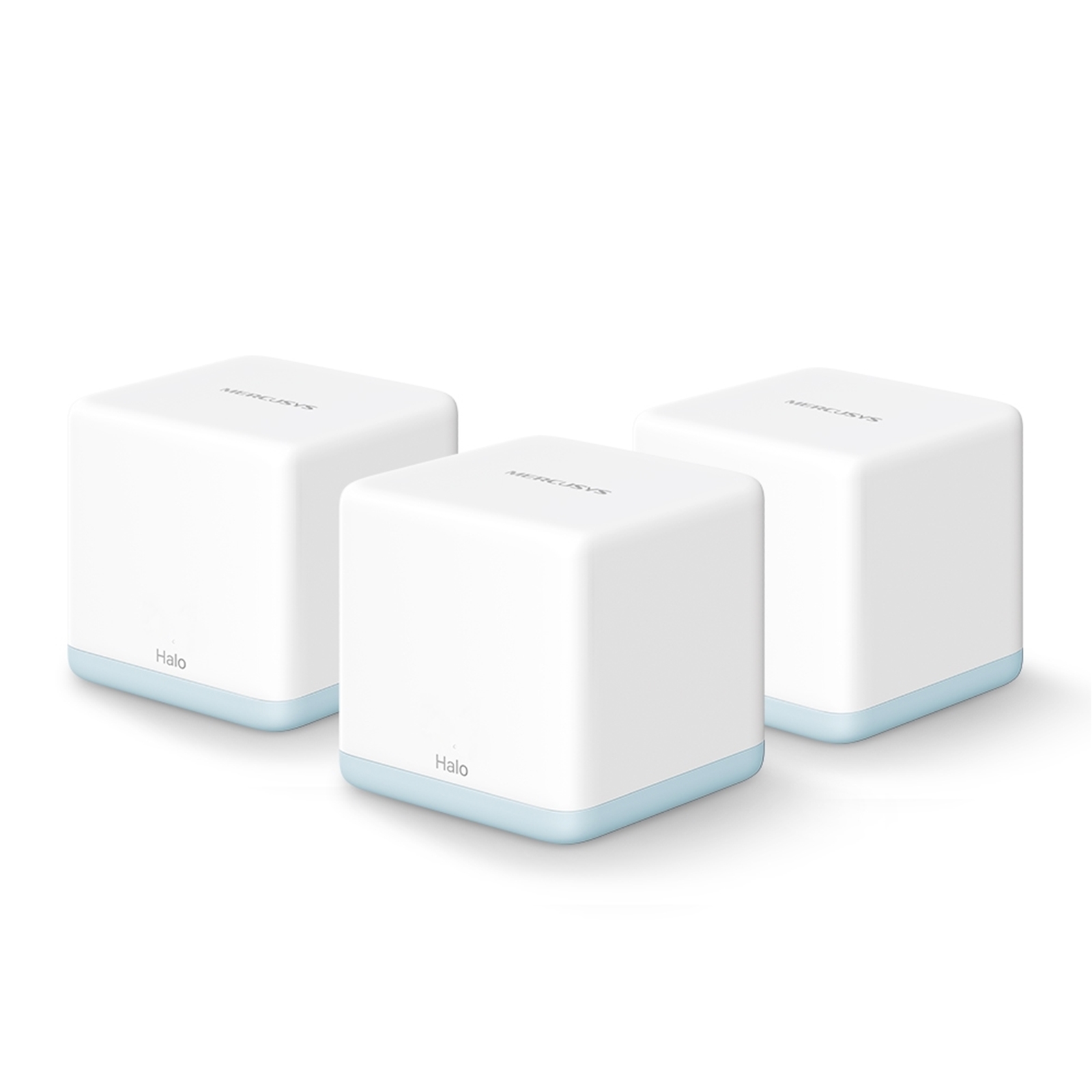

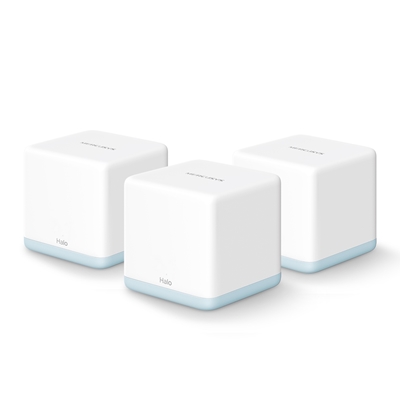

Mercusys Halo H30 AC1200 Whole Home Mesh Wi-Fi System

One Unified Network
With advanced Mesh Technology, Halo units work together to form a single unified whole home network with one WiFi name and password.

Seamless Roaming
Automatically switch between Halos as you move around your home, always getting the best signal to enjoy the fastest connections for all your devices.

Whole Home Coverage
Blanket up to 3,500 ft² (320 m²) with high-speed WiFi, eliminating WiFi dead zones at your home.

1.2 Gbps Dual Band WiFi
Halo H30 provides fast and stable connections up to 100 devices with speeds of up to 1,200 Mbps and works with major internet service providers (ISPs) and modems.

Easy App Control
Use the MERCUSYS App to quickly set up and manage your WiFi.

*Please note that the Halo H series and S series cannot work together.

Specifications

Wireless

Wireless Standards
IEEE 802.11 a/n/ac 5 GHz, IEEE 802.11 b/g/n 2.4 GHz

Signal Rate
867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz

Reception Sensitivity
2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11n HT20 MCS7:-76dBm
11n HT40 MCS7:-73dBm

5GHz:
11a 6Mbps:-95dBm
11a 54Mbps:-77dBm
11ac VHT20 MCS8:-72dBm
11ac VHT40 MCS9:-67dBm
11ac VHT80 MCS9:-63dBm

Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)

Wireless Security
WPA-PSK/WPA2-PSK

Mesh protocol
802.11k/v/r

Software

Operation Modes
Router, Access Point

Quality of Service
WMM

WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management
Local Management, Remote Management, Multi-Managers

DHCP
Server, Client

Firewall Security
SPI Firewall

Protocols
Supports IPv4 and IPv6

Guest Network
2.4 GHz Guest Network x 1,
5 GHz Guest Network x 1

Hardware

Dimensions (W X D X H)
3.5 x 3.5 x 3.5 in (88 x 88 x 88 mm)

Interfaces
2x 10/100 Mbps Ethernet Ports per Halo Unit (WAN/LAN auto-sensing)

Button
Reset button

Others

Package Contents - 3-pack

3x Halo H30 Units
1x RJ45 Ethernet Cable
3x Power Adapters
Quick Installation Guide

Manufacturer's Website:

www.mercusys.com

Warranty:

3 Year Return To Base Warranty

DESIGN
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Antenna type	Internal
LED indicators	Yes
Product colour	White
Operating temperature (T-T)	Yes
Reset button	Yes
Product type	Mesh system
Maximum coverage	320 m²
FEATURES
Firewall security	SPI Firewall
Quality of Service (QoS) support	Yes
DHCP client	Yes
DHCP server	Yes
Port forwarding	Yes
Number of guest networks (5 GHz)	1
Number of guest networks (2.4 GHz)	1
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
PACKAGING CONTENT
AC adapter included	Yes
Ethernet cable	Yes
Number of products included	3 pc(s)
Number of units included	3 pc(s)
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes
PROTOCOLS
DHCP client	Yes
DHCP server	Yes
WEIGHT & DIMENSIONS
Height	88 mm
Width	88 mm
Depth	88 mm
WIRELESS LAN FEATURES
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Security algorithms	WPA, WPA2, WPA3
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
IGMP snooping	Yes
Guest access	Yes
Dynamic DNS (DDNS)	Yes
Static IP	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Point-to-point protocol over Ethernet (PPPoE)	Yes
Dynamic IP	Yes
Number of guest networks (5 GHz)	1
Number of guest networks (2.4 GHz)	1
Wireless Distribution System (WDS) bridge	Yes
