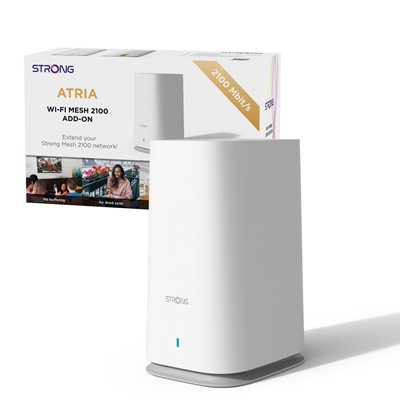

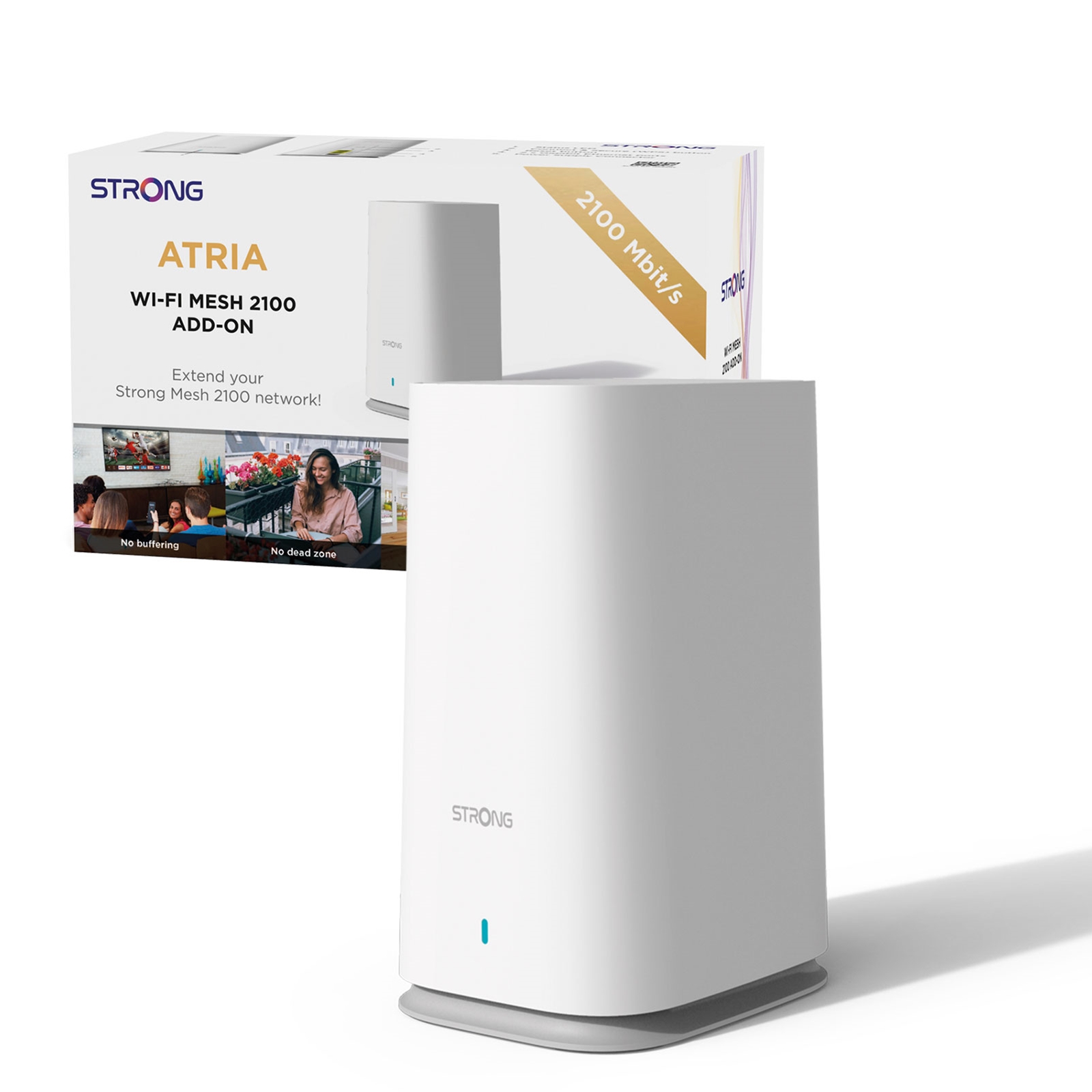

ATRIA Wi-Fi Mesh Home 2100 ADD-ON serves as an excellent addition to the ATRIA Wi-Fi Mesh Home Kit 2100, extending your coverage by up to 100 m² with a super-fast and seamless roaming Wi-Fi network, reaching speeds of up to 2100 Mbps.
Equipped with the state-of-the-art Easy Mesh solution and leveraging the powerful Wi-Fi 5 (802.11ac) MU-MIMO standard, the ATRIA Mesh 2100 offers ultimate speed, coverage, and connectivity for your home network. Additionally, it can function as an exceptional Wi-Fi 5 (802.11ac) MU-MIMO dual-band Access Point or Router, delivering speeds of up to 2100 Mbps to enhance the Wi-Fi capabilities of your existing single-band modem without requiring a modem change.
Technical Specifications
WI-FI
Frequency: 2.4 GHz and 5 GHz concurrent
Standards: IEEE 802.11ac/n/g/b/a, IEEE 802.11d, IEEE 802.11h, IEEE 802.11e, IEEE 802.11i
Signal Rate:
- 5 GHz: Up to 1733 Mbps
- 2.4 GHz: Up to 300 Mbps
Security: WPA3, WPA2-Enterprise, WPA2-Personal, WPA-Enterprise, WPA-Personal
Antenna: 6*3dBi Internal Antennas
Transmit Power:
- Europe: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
Supported Channels:
- 5 GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100,104, 108, 112
- 2.4 GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
HARDWARE
CPU: Dual-core CPU 900MHz
Ethernet Ports:
- 1x 10/100/1000M LAN port (Auto MDI/MDIX)
- 1x 10/100/1000M WAN port (Auto MDI/MDIX)
Button: Connect & Secure (WPS), Reset
LEDs: Power/Status
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Power: External power supply, 12 V/2 A DC
SOFTWARE
UPnP: Universal Plug & Play Internet Gateway Device
Basic Network: DHCP client, IGMP v1/v2, IPv4/v6, WDS, WPS, WMM
Multiple SSID: 4x 2.4 GHz + 4x 5 GHz
OTHER SPECIFICATIONS
System requirements: Internet Browser
Certification: CE
Package contents: 1x ATRIA Mesh 2100, 1x Power Supply Unit (12 V/2 A DC), 1x CAT5E Ethernet Cable, 1x Installation Instructions, Warranty Card, Safety Instructions
INTERNET SERVICES
- Easy MESH Support
- Automatically Organized Network
- Intelligent Roaming (client and band steering)
- Auto Configuration
- Seamless Roaming
- Auto MESH Routing
- Auto Healing (Redundancy and Fail-over)
ENVIRONMENT
Operating humidity: 10%~90% non-condensing
Storage humidity: 10%~90% non-condensing
Operating Temperature: 0° C~+46° C
Storage temperature: -20° C~+65° C
