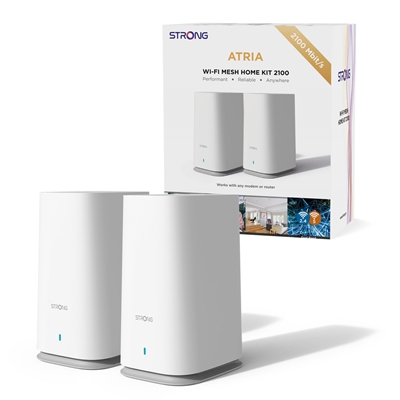

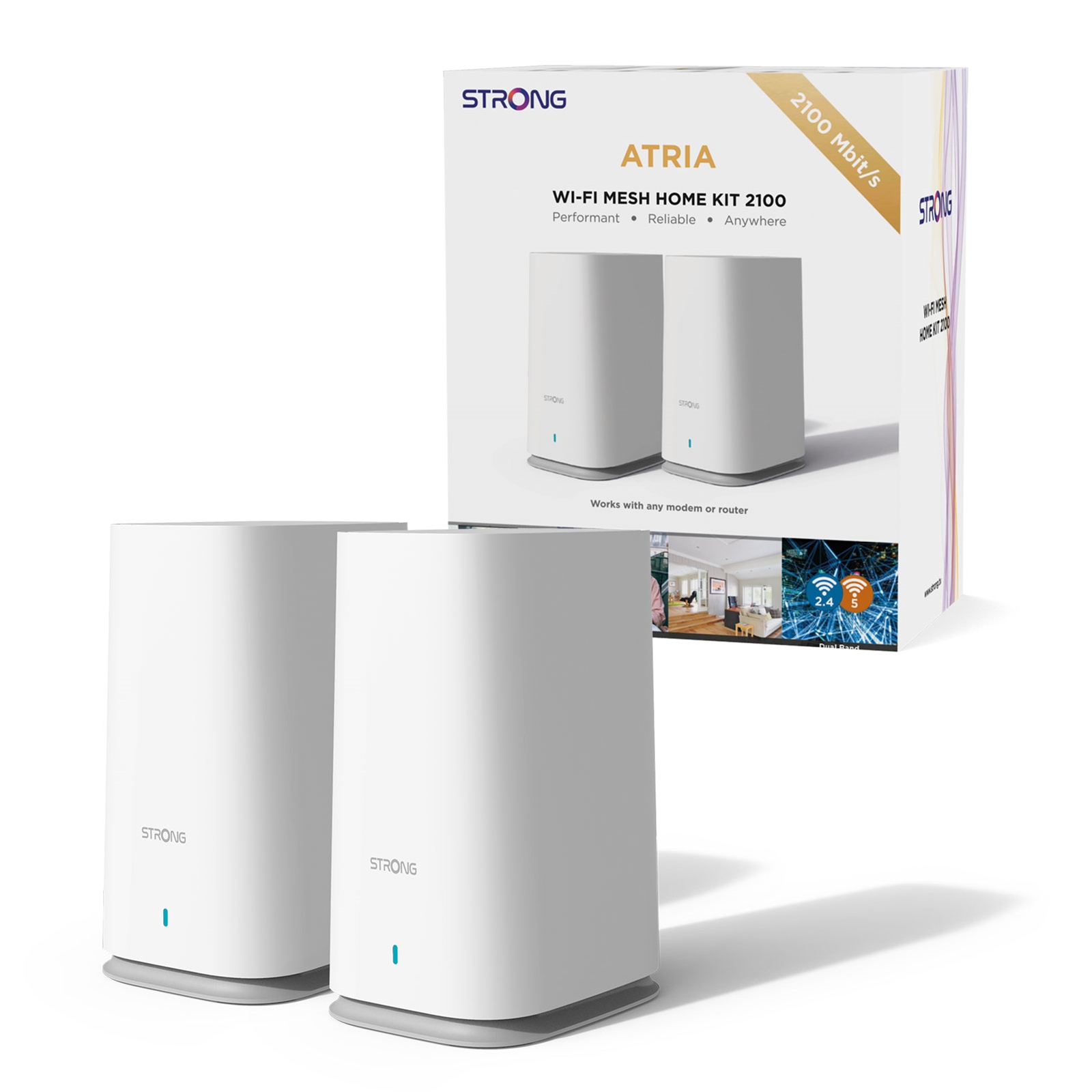

Strong MESHKIT2100UK(DUO) AC2100 Whole Home Wi-Fi Mesh System (2 Pack) - 3,300sq.ft Coverage

NPSTR-M2100UKDUO
Key Specifications
Product TypeMesh System
Included Nodes2
Mesh SpeedAC2100
/productImages/80/197509.JPG
/productImages/80/197394.JPG
/productImages/80/197395.JPG
/productImages/80/197509.JPG
Manufacturer : STRONG
EAN : 9120072373596
Manufacturer Part Code : MESHKIT2100UK(DUO)
Weight : 1.3 kg
Login For Pricing

Key Specifications
Product TypeMesh System
Included Nodes2
Mesh SpeedAC2100
Manufacturer :
STRONG

EAN :
9120072373596

Manufacturer Part Code :
MESHKIT2100UK(DUO)

Weight :
1.3 kg
Recommended Products
1328Homeplugs
See details
1332Mobile Broadband
See details
1363Printers
See details

STRONG Wi-Fi Mesh Home Kit 2100 leverages the cutting-edge Easy Mesh™ solution, merging Mesh technology with the potent 5 MU-MIMO Wi-Fi standard to deliver unparalleled speed and coverage within your home.

This set of 2 ATRIA Mesh Extender 2100 units seamlessly replaces your existing Wi-Fi network without requiring any changes to your modem or router. Experience a super-fast and uninterrupted roaming Wi-Fi network, boasting speeds up to 2100 Mbps and covering an impressive 200 m² area.

Technical Specifications

WI-FI
Frequency: 2.4 GHz and 5 GHz concurrent
Standards: IEEE 802.11ac/n/g/b/a, IEEE 802.11d, IEEE 802.11h, IEEE 802.11e, IEEE 802.11i
Signal Rate:
- 5 GHz: Up to 1733 Mbps
- 2.4 GHz: Up to 300 Mbps
Security: WPA3, WPA2-Enterprise, WPA2-Personal, WPA-Enterprise, WPA-Personal
Antenna: 6*3dBi Internal Antennas
Transmit Power:
- Europe: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
Supported Channels:
- 5 GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100,104, 108, 112
- 2.4 GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13

HARDWARE
CPU: Dual-core CPU 900MHz
Ethernet Ports:
- 1x 10/100/1000M LAN port (Auto MDI/MDIX)
- 1x 10/100/1000M WAN port (Auto MDI/MDIX)
Button: Connect & Secure (WPS), Reset
LEDs: Power/Status
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Power: External power supply, 12 V/2 A DC

SOFTWARE
UPnP: Universal Plug & Play Internet Gateway Device
Management: TR069/TR098/TR181, Web User Interface, Time Settings, Configuration Backup/Restore, Firmware Upgrade, System Log
Multiple SSID: 4x 2.4 GHz + 4x 5 GHz
Basic Network: DHCP client, IGMP v1/v2, IPv4/v6, WDS, WPS, WMM

OTHER SPECIFICATIONS
Certification: CE
Package contents: 2x ATRIA Mesh 2100, 2x Power Supply Unit (12 V/2 A DC), 1x CAT5E Ethernet Cable, 1x Installation Instructions, Warranty Card, Safety Instructions
System requirements: Internet Browser
EAN: 9120072373596

INTERNET SERVICES
- Easy MESH Support
- Automatically Organized Network
- Intelligent Roaming (client and band steering)
- Auto Configuration
- Seamless Roaming
- Auto MESH Routing
- Auto Healing (Redundancy and Fail-over)

ENVIRONMENT
Operating Temperature: 0° C~+46° C
Storage temperature: -20° C~+65° C
Operating humidity: 10%~90% non-condensing
Storage humidity: 10%~90% non-condensing
Dimensions (WxDxH) per unit: 95*130*180 mm
Weight per unit: 402 g
Manufacturer's Website:
www.strong.tv
Warranty:
2 Year Return to Base Warranty
DESIGN
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -20 - 65 °C
Operating temperature (T-T) 0 - 46 °C
Storage relative humidity (H-H) 10 - 90%
Antenna type Internal
LED indicators Power, Status
Product colour White
Operating temperature (T-T) Yes
Reset button Yes
Antennas quantity 6
Product type Mesh system
Maximum coverage 200 m²
Transmit power 20 dBmW
FEATURES
DHCP client Yes
DHCP server Yes
Processor cores 2
Port forwarding Yes
Built-in processor Yes
Processor frequency 900 GHz
SSID Broadcast Yes
MU-MIMO technology Yes
MOBILE NETWORK
Mobile network generation Not supported
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 46 °C
Storage relative humidity (H-H) 10 - 90%
PACKAGING CONTENT
AC adapter included Yes
Ethernet cable Yes
Number of products included 2 pc(s)
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports 2
DC-in jack Yes
Ethernet WAN Yes
POWER
AC adapter output voltage 12 V
AC adapter output current 1 A
PROTOCOLS
DHCP client Yes
DHCP server Yes
Universal Plug and Play (UPnP) Yes
TECHNICAL DETAILS
Sustainability compliance Yes
Sustainability certificates CE
Compliance certificates CE
WEIGHT & DIMENSIONS
Weight 402 g
Height 180 mm
Width 95 mm
Depth 130 mm
WIRELESS LAN FEATURES
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Security algorithms WPA2-Personal, WPA-Personal, WPA-Enterprise, WPA2-Enterprise, WPA3
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Wi-Fi band Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max) 1733 Mbit/s
WLAN data transfer rate (first band) 300 Mbit/s
WLAN data transfer rate (second band) 1733 Mbit/s
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
IGMP proxy Yes
Wireless Distribution System (WDS) bridge Yes
