Target Components

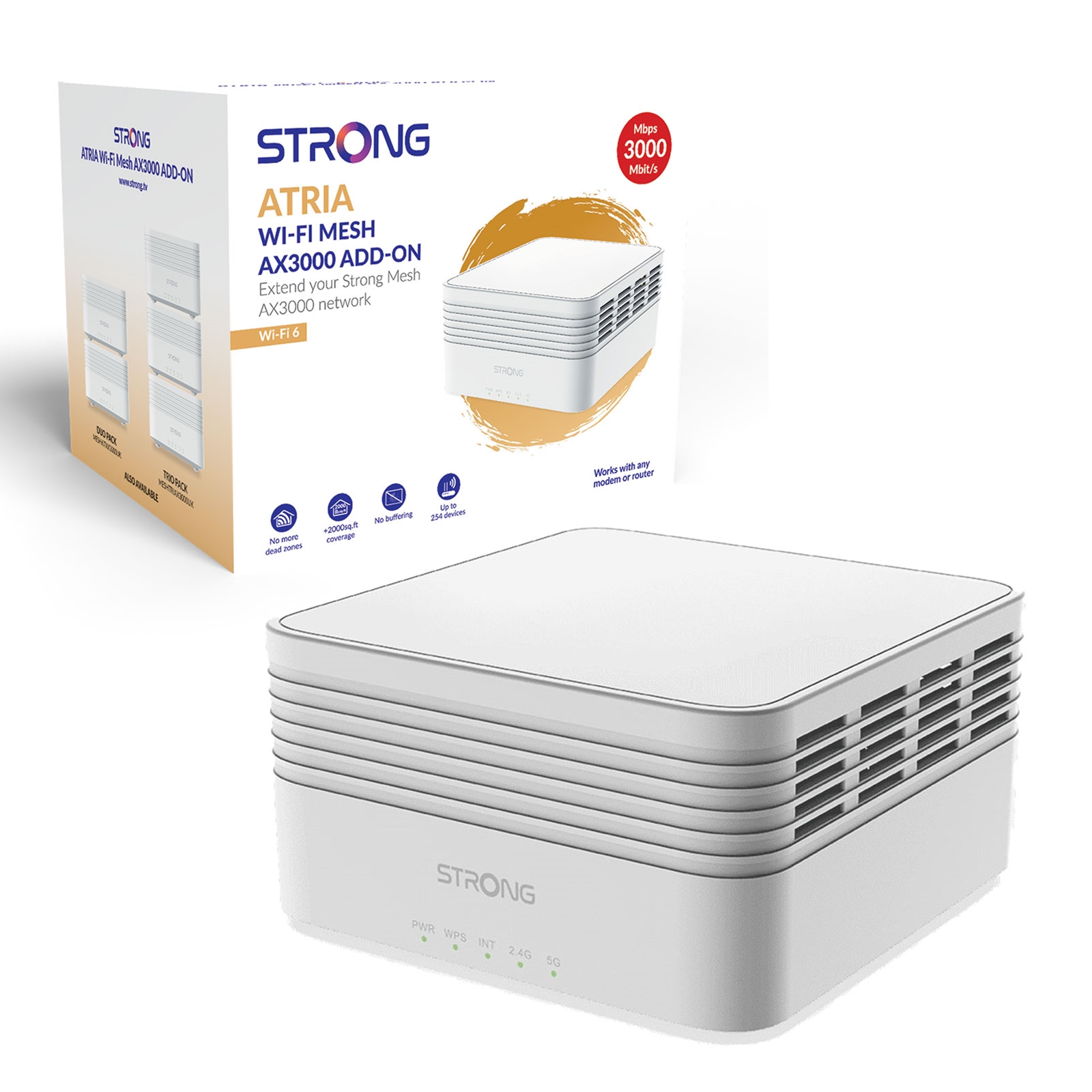

ATRIA Wi-Fi Mesh AX3000 ADD-ON serves as an exceptional addition to the ATRIA Wi-Fi Mesh Kit AX3000, extending your coverage by up to 175 m² with a super-fast and seamless roaming Wi-Fi network, reaching speeds of up to 3000 Mbps.

You have the flexibility to connect up to 6 Mesh AX3000 units together, covering an impressive area of up to 1050 m² across multiple floors, ensuring Wi-Fi that simply works! Leveraging the state-of-the-art Easy Mesh solution, combined with powerful Wi-Fi 6 (802.11ax) MU-MIMO and OFDMA technologies, ATRIA Mesh AX3000 offers ultimate speed, coverage, and connectivity for your home network. It can also function as an outstanding Wi-Fi 6 (802.11ax) MU-MIMO dual-band Access Point or Router, delivering speeds of up to 3000 Mbps to enhance the Wi-Fi capabilities of your existing single-band modem without requiring a modem change.

Technical Specifications

WI-FI
Frequency: 2.4 GHz and 5 GHz concurrent
Standards: Wi-Fi 6 - IEEE 802.11ax/ac/n/g/b/a
Signal Rate:
- 5 GHz: Up to 2402 Mbps
- 2.4 GHz: Up to 574 Mbps
Security: WPA™/WPA-PSK™ & WPA2™/WPA2-PSK™ & WPA3-SAE™
Antenna: 4*3dBi Internal Antennas
Transmit Power:
- Europe: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
Supported Channels:
- 5 GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112
- 2.4 GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13

HARDWARE
CPU: Dual-core CPU 900MHz
Ethernet Ports: 2x Gigabit Ethernet LAN Ports + 1x Gigabit Ethernet WAN/LAN Port
Buttons: Connect & Secure (WPS), Reset, Power on/off
LEDs: Power, Internet, Pairing, 2.4 GHz and 5 GHz
Power: External power supply, 12 V/2 A DC
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11

SOFTWARE
Multiple SSID: 4x 2.4 GHz + 4x 5 GHz
Basic Network: Router Features - DHCP server, DNS relay/proxy, NAT/NAPT, IGMP proxy, Firewall, VPN pass through, DMZ, URL/IP/MAC Filtering, Port Forwarding
UPnP: Universal Plug & Play Internet Gateway Device
Management: TR069/TR098/TR181, Web User Interface, Time Settings, Configuration Backup/Restore, Firmware Upgrade, System Log
ATRIA Mesh app: Android and iOS downloadable app to manage the Wi-Fi Mesh network

INTERNET SERVICES
- Easy MESH Support
- Automatically Organized Network
- Intelligent Roaming (client and band steering)
- Auto Configuration
- Seamless Roaming
- Auto MESH Routing
- Auto Healing (Redundancy and Fail-over)

OTHER SPECIFICATIONS
Certification: CE
System requirements: Internet Browser
Package contents: 1x ATRIA Mesh AX3000, 1x Power Supply Unit (12 V/2 A DC), 1x CAT5E Ethernet Cable, 1x Installation Instructions, Warranty Card

GENERAL DATA
Operating Temperature: 0° C~+45° C
ENVIRONMENT
Storage temperature: -20° C~+70° C
Operating humidity: 10%~90% non-condensing
Storage humidity: 10%~90% non-condensing
Dimensions (WxDxH) per unit: 128x128x73 mm
Weight per unit: 320 g
