Target Components

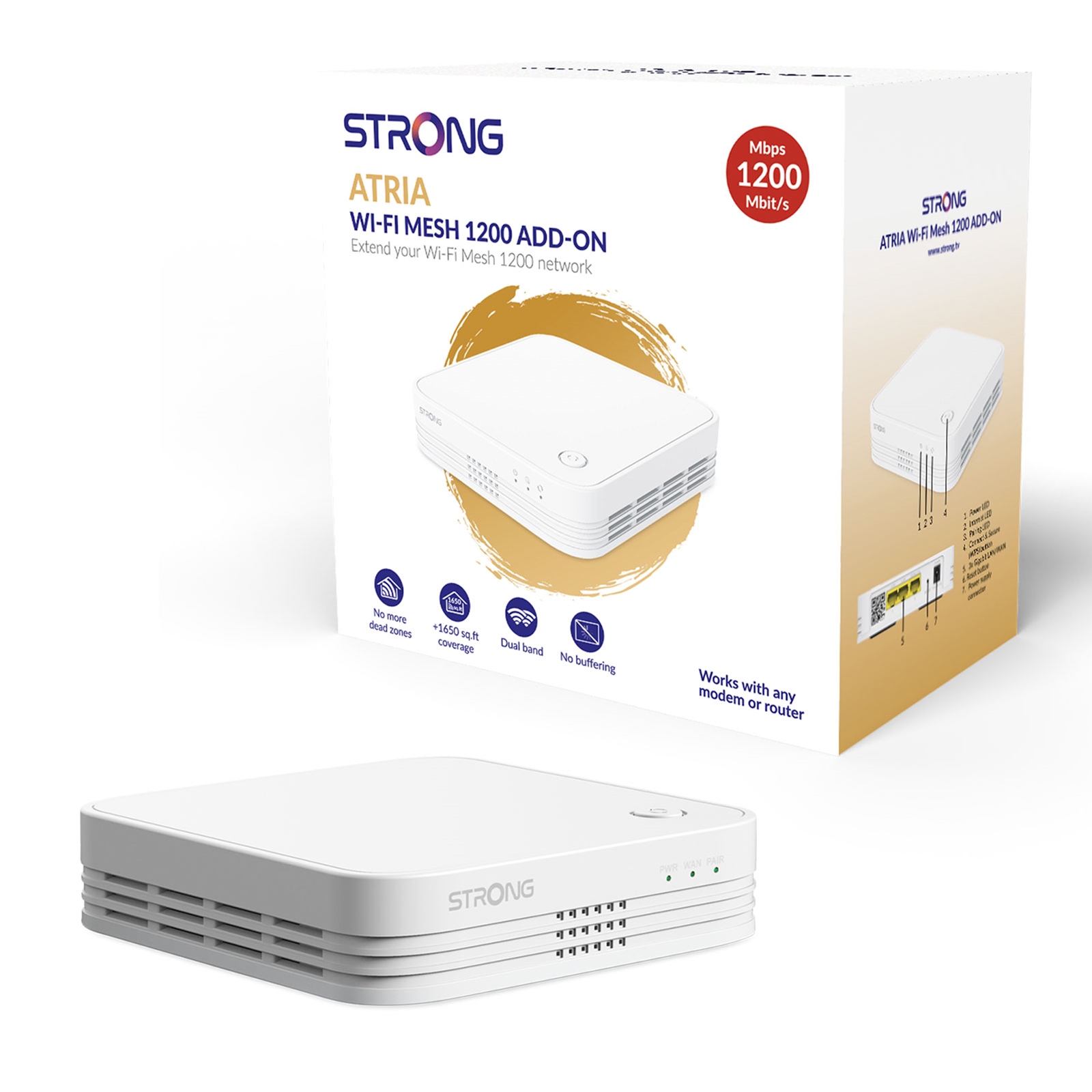

ATRIA Mesh Extender 1200 can be used as an add-on to ATRIA Wi-Fi Mesh Home Kit 1200 and brings up to 100m² additional coverage of a super-fast and seamless roaming Wi-Fi network at a speed of up to 1200 Mbps. You can connect up to 6 Mesh Extender 1200 together to cover up to 600 m² in multiple floors with Wi-Fi that simply works!

Alternatively, ATRIA Mesh Extender 1200 can be used as an outstanding Wi-Fi 5 (802.11ac) MU-MIMO dual-band Access Point with a speed of up to 1200 Mbps to immediately improve the Wi-Fi of your existing single-band modem without changing the modem.

Technical specifications

WI-FI
Frequency: 2.4 GHz and 5 GHz concurrent
Standards: IEEE 802.11ac/n/g/b/a, IEEE 802.11d, IEEE 802.11h, IEEE 802.11e, IEEE 802.11i
Signal Rate:
- 5 GHz: Up to 867 Mbps
- 2.4 GHz: Up to 300 Mbps
Security: WPA™/WPA-PSK™ & WPA2™/WPA2-PSK™
Antenna: 4*Internal Antenna (3 dBi)
Transmit Power:
- Europe: <20 dBm (2.4 GHz)
- <23 dBm (5 GHz)
Supported Channels:
- 5 GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100,104, 108, 112
- 2.4 GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13

HARDWARE
Ethernet Ports: 3x 10/100/1000M WAN/LAN ports (Auto MDI/MDIX)
Button: Connect & Secure (WPS), Reset
LEDs: Power, WAN, Pairing
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Power: External power supply, 12V/1A DC
Main Chipset: RTL8197FS
Wi-Fi Chipset: RTL8812FR for 5GHz

SOFTWARE
Management: Web User Interface, Time Settings, Configuration Backup/Restore, Firmware Upgrade, System Log
Internet Protocol: IPv4/V6
STRONG Mesh app: Android and iOS downloadable app to manage the ATRIA Wi-Fi Mesh network
Basic Network: DHCP, DNS, IGMP v1/v2, NAT, IPV4/V6, WDS , WPS, WMM

OTHER SPECIFICATIONS
Certification: CE
Package contents: 1x Mesh Extender 1200, 1x Power Supply Unit (12V/1A DC), 1x CAT5E Ethernet Cable, 1x Installation Instructions, Warranty Card
System requirements: 10%~95% non-condensing
Power consumption per unit: < 8W

INTERNET SERVICES
- Easy MESH Support
- Automatically Organized Network
- Auto Configuration
- Seamless Roaming
- Auto MESH Routing
- Auto Healing (Redundancy and Fail-over)
- Intelligent roaming (Dynamic management of clients and clients frequency bands)
- Multiple access

ENVIRONMENT
Operating Temperature: 0 °C~+45 °C
Storage temperature: -20 °C~+70 °C
Operating humidity: 10%~95% non-condensing
Storage humidity: 10%~95% non-condensing
Dimensions (WxDxH) per unit: 130*130*30 mm
Weight per unit: ~220 g
