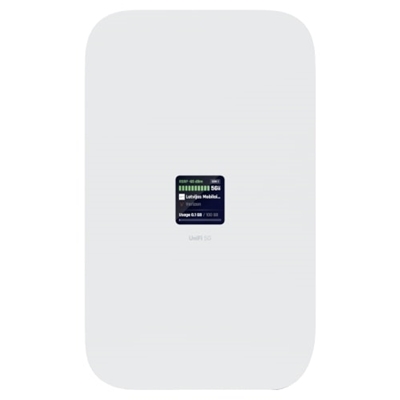

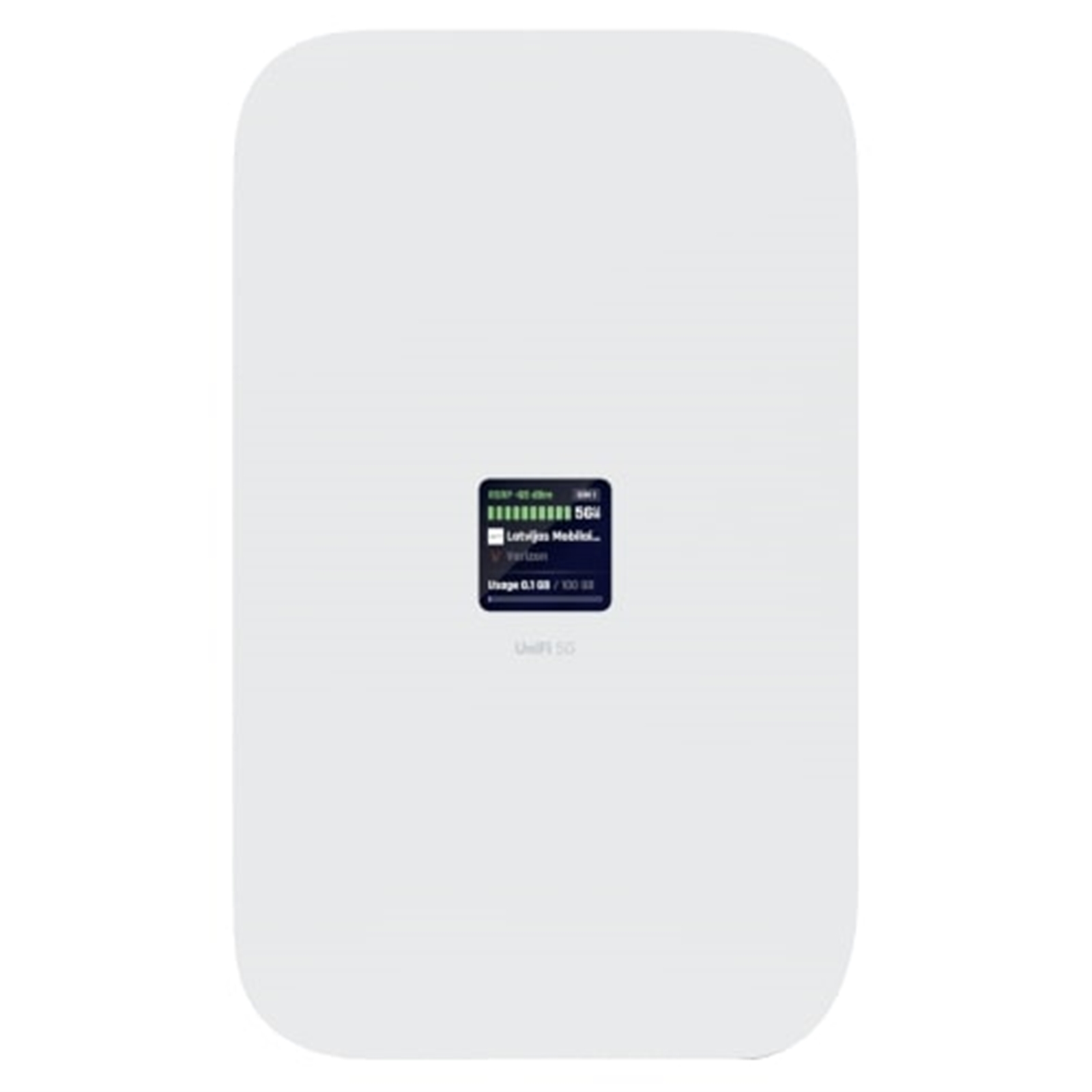

Ubiquiti Unifi high-performance 5G (3.4 Gbps) modem

Specifications

Overview

Dimensions
180 x 109 x 33.8 mm
(7.1 x 4.3 x 1.3")

Networking Interface
(1) 2.5 GbE RJ45 port
5G NR and LTE radio

SIM
(1) Nano SIM
(1) Nano-SIM or eSIM

PoE Interface
(1) PoE input

Mounting
Desktop stand, wall, window mount (Included)

Tamper Resistance
IK04

Mechanical

Weight
Device: 410 g (14.5 oz)
Stand: 215 g (7.6 oz)
Wall mount: 7.6 g (0.3 oz)
Window mount: 20 g (0.7 oz)

Enclosure Material
Polycarbonate, aluminum alloy

Mount Material
Polycarbonate, silicone rubber

Hardware

Management
Ethernet

5G NR

Category
5G NR

Frequency Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79

Max. TX Power
HPUE power class 2: 26 dBm

4G LTE

Frequency Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71

Max. TX Power
HPUE power class 2: 25 dBm

3G UMTS

Frequency Bands
B1, B2, B4, B5, B8, B19

Peak Data Speed

5G NSA
Downlink 3.4 Gbps
Uplink 560 Mbps

5G SA
Downlink 1.8 Gbps
Uplink 650 Mbps

4G LTE
Downlink 1.6 Gbps
Uplink 210 Mbps

Antennas
Type
(4) Embedded cellular antennas

Max. Power Consumption
14.5W

Power Method
PoE

Display
1.3" touchscreen

Buttons
(1) Factory-reset

Ambient Operating Temperature
0 to 40 C (32 to 104 °F)

Ambient Operating Humidity
5 to 95% noncondensing

Certifications
CE, PTCRB, GCF

Software
Application Requirements

UniFi Network
Version 10.0.162 and later

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

ANTENNA
Antenna type	Internal
Antennas quantity	4
CERTIFICATION
Compliance certificates	CE, GCF, PTCRB
DESIGN
Display diagonal	3.3 cm (1.3")
Product colour	White
Mounting	Desktop/Wall/Window mounting
Device type	Cellular network modem
Reset button	Yes
Housing material	Polycarbonate (PC), Aluminium
Built-in display	Yes
ETHERNET LAN FEATURES
Ethernet LAN	Yes
Ethernet LAN interface type	2.5 Gigabit Ethernet
MOBILE NETWORK
Data network	3G, 4G, 5G
Number of SIM cards	2
SIM card type	NanoSIM + eSIM
4G standard	LTE
3G standards	UMTS
Data transfer rate (LTE) (download)	1600 Mbit/s
Data transfer rate (LTE) (upload)	210 Mbit/s
5G standard	Sub6 SA, Sub6 NSA, NR
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
PERFORMANCE
Antenna type	Internal
Antennas quantity	4
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	1
POWER
Power source type	PoE
TECHNICAL DETAILS
Compliance certificates	CE, GCF, PTCRB
WEIGHT & DIMENSIONS
Weight	410 g
Height	180 mm
Width	109 mm
Depth	33.8 mm
WIRELESS LAN FEATURES
Wi-Fi	No
