Five 10/100/1,000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
Easily wired network expansion
Compact design for flexible arrangement
Plug and play setup, no configuration required
Green Ethernet technology saves power by up to 82%
Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with five 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS105G is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.
Cool, Ultra-Compact Design
A sleek, square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone, MS105G sits anywhere in your home without taking up too much.
Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, MS105G provides up to 10 Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.
Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS105G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Specifications
Interfaces
5 10/100/1000Mbps Ports,
Auto-Negotiation, Auto-MDI/MDIX
LED
Ethernet Ports (1, 2, 3, 4, 5), Power
External Power Supply
5V/0.6A
Dimensions (W X D X H)
105 x 70 x 24.9 mm
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Data Rates
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex
Buffer Capacity
512 Kbit
Jumbo Frame
9 KB
Transfer Method
Store and Forward
Package Contents

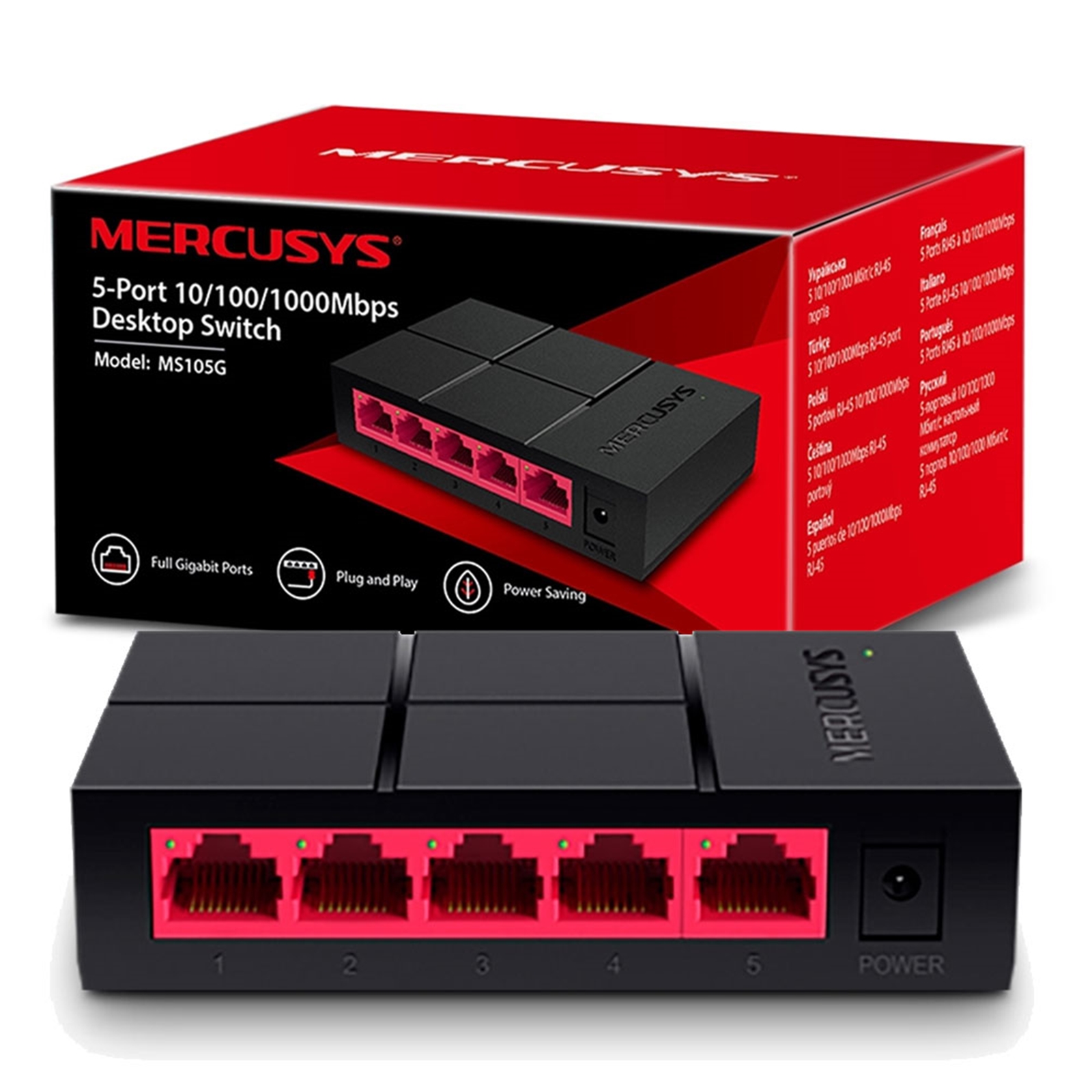

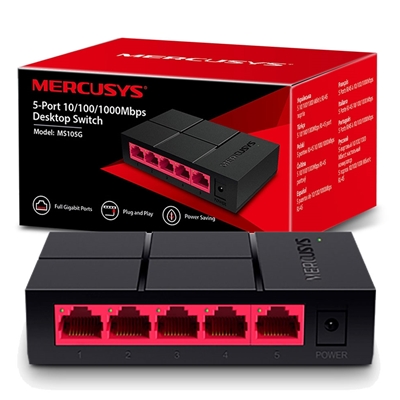

1. 5-Port 10/100/1000Mbps Desktop Switch (MS105G)
2. Power Adapter
3. Quick Installation Guide
Warranty:
3 Year Return To Base Warranty
DATA TRANSMISSION
|
Switching capacity |
10 Gbit/s |
Full duplex |
Y |
Jumbo frames support |
Yes |
Switching capacity |
10 Gbit/s |
Jumbo frames |
9000 |
Jumbo frames support |
Y |
Jumbo frames |
9 |
DESIGN
|
Rack mounting |
No |
LED indicators |
Activity, Power |
Product colour |
Black |
Rack mounting |
N |
Stackable |
No |
Colour of product |
Black |
Stackable |
N |
ENERGY MANAGEMENT
|
Power source |
DC |
Input voltage |
5 V |
Input current |
0.6 A |
DC input voltage |
5 V |
Power supply included |
Yes |
Power over Ethernet (PoE) Support |
N |
Input current |
0.6 A |
DC input voltage |
5 V |
Power supply included |
Y |
LOGISTICS DATA
|
Harmonized System (HS) code |
85176990 |
MANAGEMENT FEATURES
|
Switch type |
Unmanaged |
NETWORKING
|
Full duplex |
Yes |
Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Full duplex |
Y |
Networking standards |
IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
Auto MDI/MDI-X |
Yes |
Auto-negotiation |
Yes |
Jumbo Frames support |
Y |
Half duplex |
Yes |
OTHER FEATURES
|
Input voltage |
5 V |
PACKAGING CONTENT
|
Quick start guide |
Y |
PACKAGING DATA
|
Package weight |
200 g |
Package weight |
200 g |
Package depth |
90 mm |
Package height |
60 mm |
Package width |
110 mm |
Quick start guide |
Yes |
Packaging depth |
90 mm |
Packaging height |
60 mm |
Packaging width |
110 mm |
Quick start guide |
Y |
PERFORMANCE
|
Harmonized System (HS) code |
85176990 |
Stackable |
N |
PORTS & INTERFACES
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity |
5 |
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity |
5 |
POWER OVER ETHERNET (POE)
|
Power over Ethernet (PoE) |
No |
Power over Ethernet (PoE) support |
N |
TECHNICAL DETAILS
|
Rack mounting |
N |
Colour of product |
Black |
Stackable |
N |
WEIGHT & DIMENSIONS
|
Height |
24.9 mm |
Width |
105 mm |
Depth |
70 mm |
Height |
24.9 mm |
Width |
105 mm |
Depth |
70 mm |
