Eight 10/100/1,000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
Easily wired network expansion
Compact design for flexible arrangement
Plug and play setup, no configuration required
Green Ethernet technology saves power by up to 82%
Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with eight 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS108G is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.

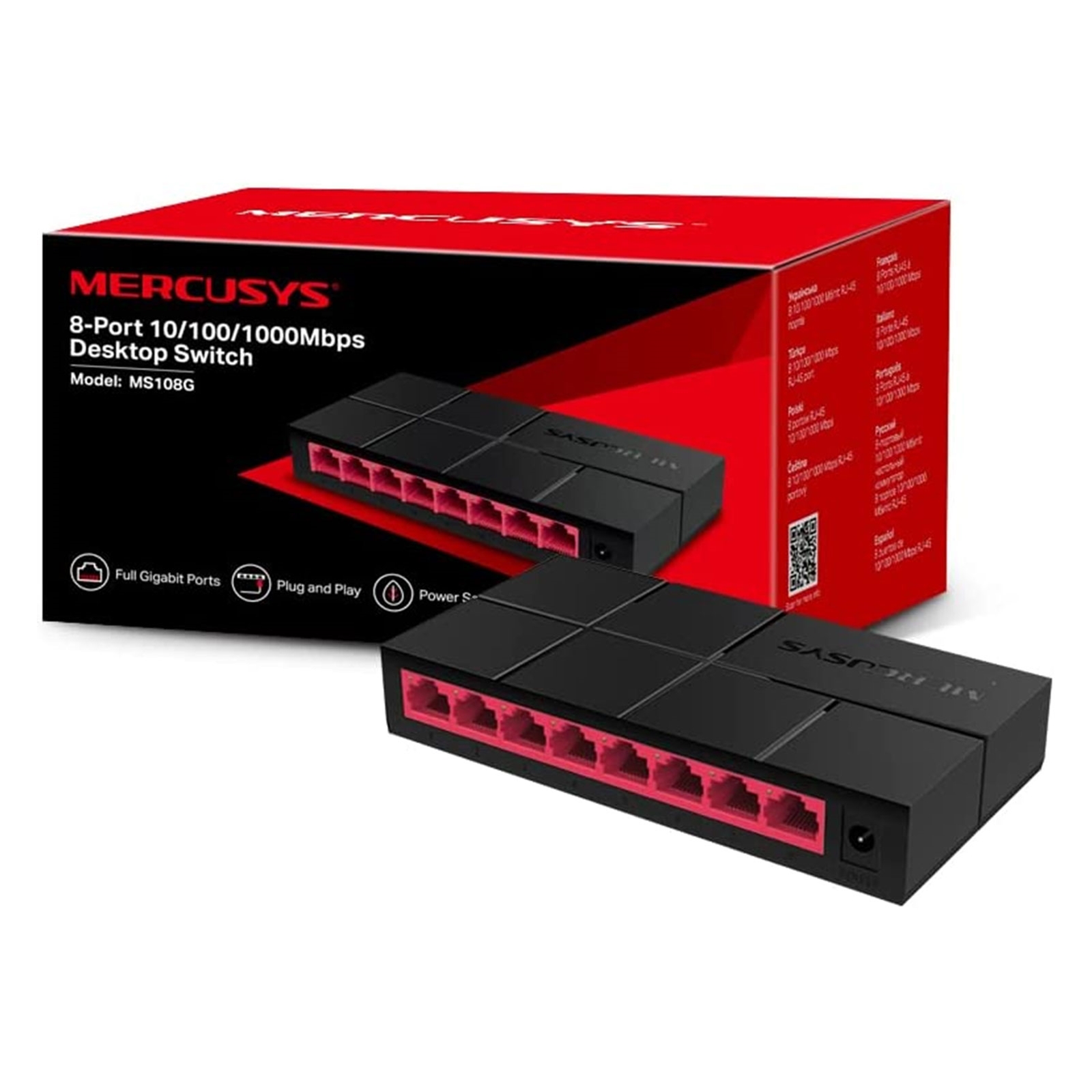

Cool, Ultra-Compact Design
A sleek, square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone, MS108G sits anywhere in your home without taking up too much space.
Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.
Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS108G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Specifications
Interfaces
8 10/100/1000Mbps Ports, Auto-Negotiation,
Auto-MDI/MDIX
LED
Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power
External Power Supply
9V/0.6A
Dimensions (W X D X H)
127 x 60.3 x 22 mm
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Data Rates
10/100/1000Mbps at Half Duplex
20/200/2000Mbps at Full Duplex
Buffer Capacity
64KB
Jumbo Frame
9KB
Transfer Method
Store and Forward
Warranty:
3 Year Return To Base Warranty
DATA TRANSMISSION
|
Jumbo frames support |
Y |
Store-and-forward |
Y |
Jumbo frames |
9000 |
Jumbo frames support |
Y |
Store-and-forward |
Y |
10G support |
N |
DESIGN
|
Rack mounting |
N |
LED indicators |
LAN, Power |
Product colour |
Black |
Rack mounting |
N |
Stackable |
N |
LED indicators |
LAN, Power |
Colour of product |
Black |
Stackable |
N |
ENERGY MANAGEMENT
|
Power source |
DC |
Input voltage |
9 V |
Input current |
0.6 A |
DC input voltage |
9 V |
Power supply included |
Y |
Power over Ethernet (PoE) Support |
N |
DC input voltage |
9 V |
ILLUMINATION/ALARMS
|
LED indicators |
LAN, Power |
LOGISTICS DATA
|
Harmonized System (HS) code |
85176990 |
MANAGEMENT FEATURES
|
Switch type |
Unmanaged |
Switch type |
Unmanaged |
NETWORKING
|
Full duplex |
Y |
Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Networking standards |
IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
Auto MDI/MDI-X |
Y |
10G support |
N |
Auto-negotiation |
Y |
Jumbo Frames support |
Y |
Half duplex |
Y |
Store-and-forward |
Y |
Auto MDI/MDI-X |
Y |
10G support |
N |
Auto-negotiation |
Y |
OTHER FEATURES
|
Input voltage |
9 V |
PACKAGING DATA
|
Package weight |
250 g |
Package weight |
250 g |
Package depth |
93 mm |
Package height |
62 mm |
Package width |
149 mm |
Packaging depth |
93 mm |
Packaging height |
62 mm |
Packaging width |
149 mm |
PERFORMANCE
|
Harmonized System (HS) code |
85176990 |
Stackable |
N |
Auto-negotiation |
Y |
PORTS & INTERFACES
|
Gigabit Ethernet (copper) ports quantity |
8 |
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity |
8 |
Power connector |
DC-in jack |
Gigabit Ethernet (copper) ports quantity |
8 |
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity |
8 |
POWER OVER ETHERNET (POE)
|
Power over Ethernet (PoE) |
N |
Power over Ethernet (PoE) support |
N |
TECHNICAL DETAILS
|
Rack mounting |
N |
Colour of product |
Black |
Stackable |
N |
WEIGHT & DIMENSIONS
|
Height |
25 mm |
Width |
144.8 mm |
Depth |
72.3 mm |
Height |
25 mm |
Width |
144.8 mm |
Depth |
72.3 mm |
