POE
4 x PoE ports with 802.3af and 802.3at support
DURABILITY
Rugged aluminium housing
MOUNTING
DIN rail and surface mounting options
POWER BUDGET
Total power budget at PSE up to 120 W
ETHERNET
5 x Gigabit Ethernet with speeds up to 1000 Mbps
PLUG-N-PLAY
No additional configuration needed

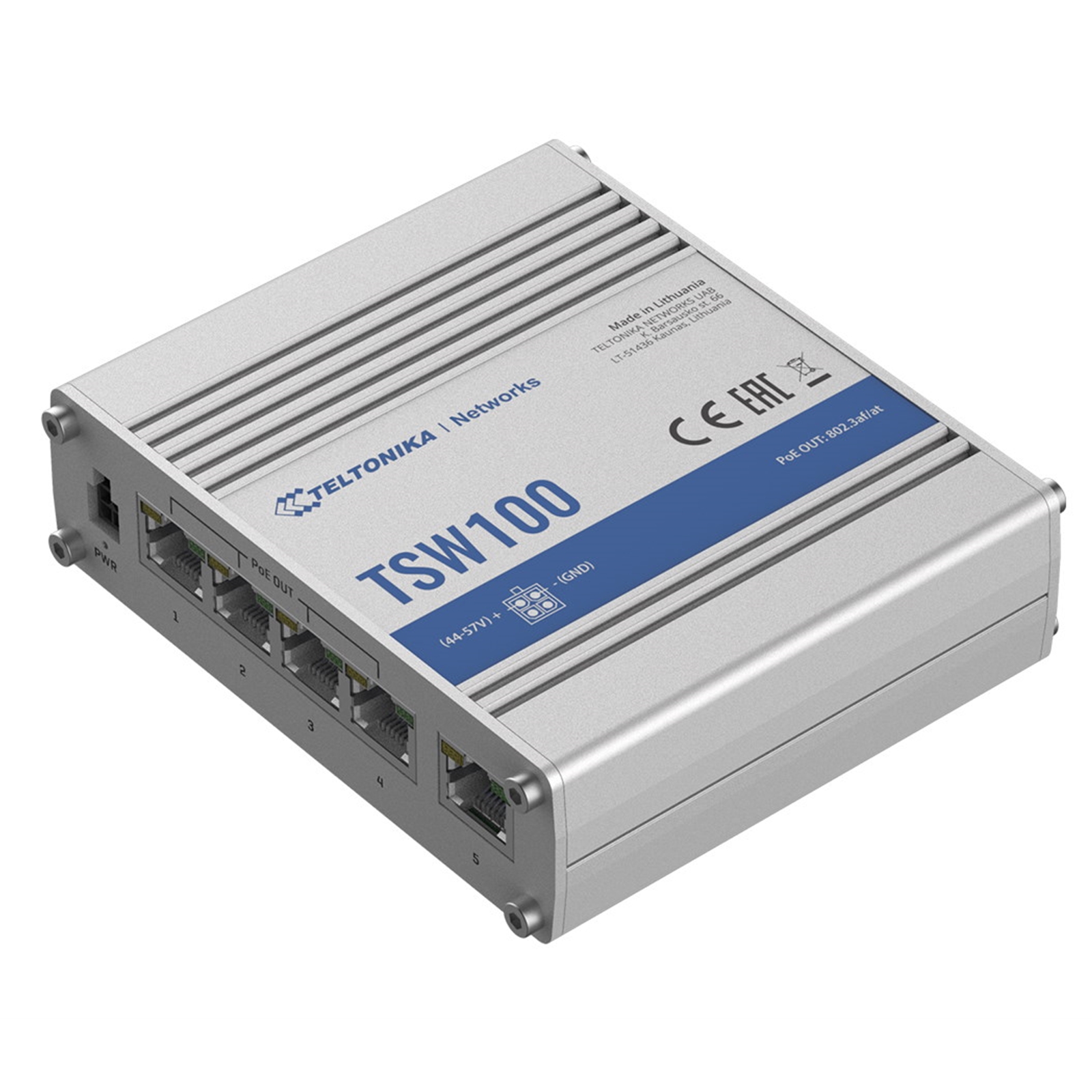

MEET THE TSW100
TSW100 is the first industrial unmanaged switch from Teltonika Networks.
Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE).
Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power.
It has 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.
Ideal for professional high bandwidth applications to provide both: reliable data connection and power supply.
PLEASE SEE THE MARKETING TAB FOR FURTHER SPECIFICATIONS
Package Contents
TSW100
65 W UK PSU
QSG (Quick Start Guide)
Packaging box
Warranty:
Refer to the Teltonika WiKi for technical support - https://wiki.teltonika-networks.com/view/Main_Page
Warranty Process: Contact Teltonika technical support for troubleshooting, if fault confirmed, reference number will be given. Product to be returned to Target with the reference number. Which will be forwarded to Teltonika for repair.
IMPORTANT: Target will not be able to process your claim without the support reference number.
There are currently no data sheets available for this product.
