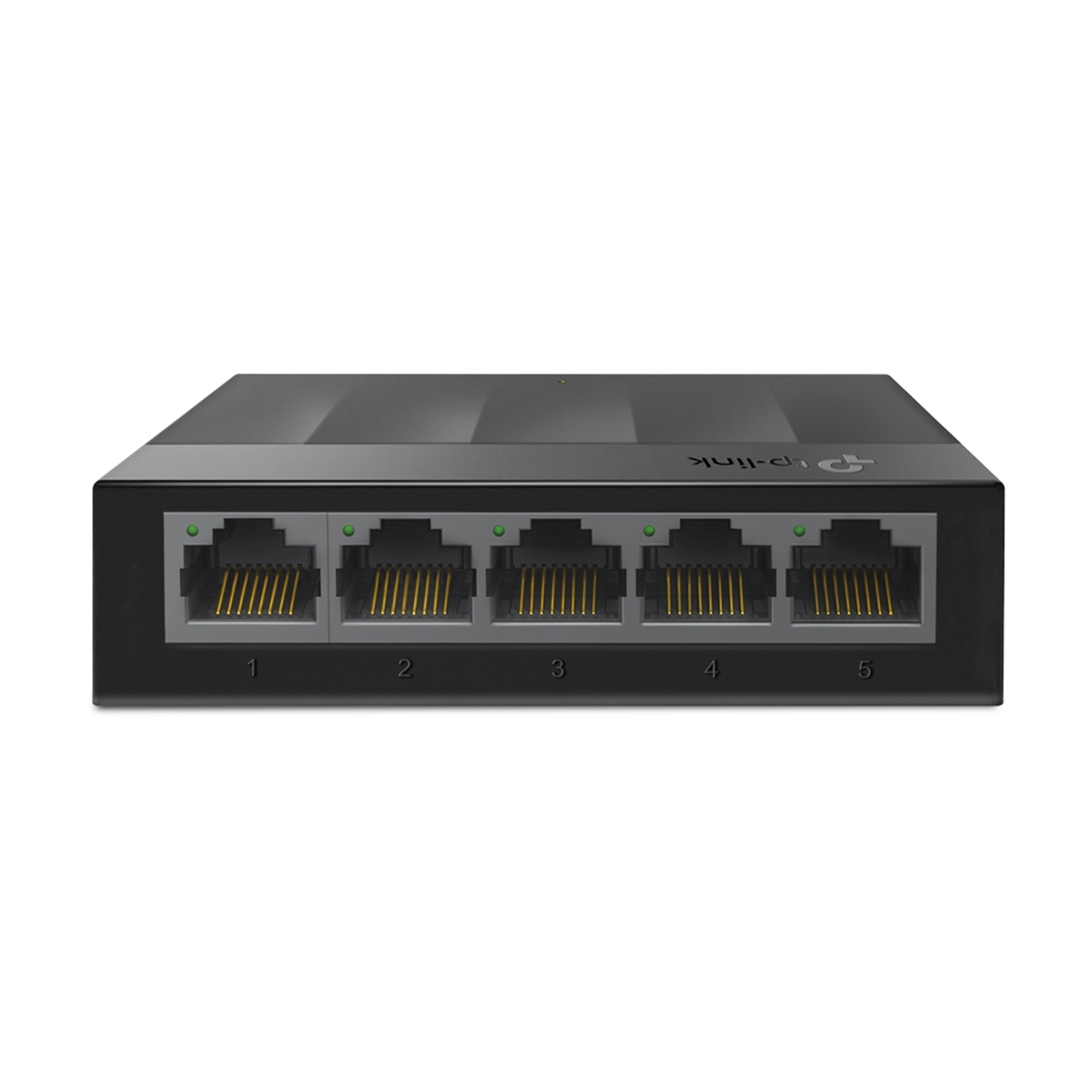

5-Port 10/100/1000Mbps Desktop Network Switch
Key Features
5 x 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
Green Ethernet technology saves power
IEEE 802.3X flow control provides reliable data transfer
Plastic casing, desktop or wall-mounting design
Plug and play, no configuration needed
Fanless design ensures quiet operation
Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there's no need to worry about the type of cable to use.
Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it's a win-win!
Gigabit Ports For Faster Speeds
Increase the speed of your network with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5 x 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.
Use Where You Need, However You Need
The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
Specifications
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x
Interface
5 x 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 5VDC/0.6A)
Dimensions ( W x D x H )
3.5 x 2.8 x 0.9 in. (90 x 72 x 23 mm)
Max Power Consumption
3.7W
Max Heat Dissipation
12.617 BTU/h
PERFORMANCE
Switching Capacity
10 Gbps
Packet Forwarding Rate
7.4 Mpps
MAC Address Table
2K
Packet Buffer Memory
1.5 Mb
Jumbo Frame
16 KB
SOFTWARE FEATURES
Advanced Features
Green Technology
802.3X Flow Control
Back Pressure
Transfer Method
Store and Forward
OTHERS
Certification
CE, FCC, RoHS
Package Contents
5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
CERTIFICATES
|
Certification |
CE, FCC, RoHS |
DATA TRANSMISSION
|
MAC address table |
2000 entries |
Switching capacity |
10 Gbit/s |
MAC address table |
2000 entries |
Jumbo frames support |
Yes |
Store-and-forward |
Yes |
Switching capacity |
10 Gbit/s |
Forwarding rate |
7.4 Mpps |
Packet buffer memory |
1.5 MB |
Jumbo frames |
16000 |
Jumbo frames support |
Y |
Store-and-forward |
Y |
10G support |
N |
Forwarding rate |
7.4 Mpps |
Packet buffer memory |
1.5 MB |
Jumbo frames |
16000 |
DESIGN
|
Certification |
CE, FCC, RoHS |
Rack mounting |
No |
LED indicators |
Yes |
Wall mountable |
Yes |
Product colour |
Black |
Certification |
CE, FCC, RoHS |
Rack mounting |
N |
LED indicators |
Y |
Wall mountable |
Y |
Housing material |
Plastic |
Colour of product |
Black |
International Protection (IP) code |
IP20, IP40 |
Housing material |
Plastic |
International Protection (IP) code |
IP20, IP40 |
ENERGY MANAGEMENT
|
Input current |
0.6 A |
Heat dissipation |
12.617 BTU/h |
DC input voltage |
5 V |
Power consumption (max) |
3.7 W |
Power supply included |
Yes |
Power over Ethernet (PoE) Support |
N |
Input current |
0.6 A |
DC input voltage |
5 V |
Power consumption (max) |
3.7 W |
Power supply included |
Y |
ILLUMINATION/ALARMS
|
LED indicators |
Y |
LOGISTICS DATA
|
Harmonized System (HS) code |
85176990 |
MANAGEMENT FEATURES
|
Switch type |
Unmanaged |
MEMORY
|
Packet buffer memory |
1.5 MB |
NETWORKING
|
Networking standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
MAC address table |
2000 entries |
Flow control support |
Yes |
Networking standards |
IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
Auto MDI/MDI-X |
Yes |
10G support |
No |
Flow control support |
Y |
Auto-negotiation |
Yes |
Jumbo Frames support |
Y |
Store-and-forward |
Y |
Auto MDI/MDI-X |
Y |
10G support |
N |
Auto-negotiation |
Y |
OPERATIONAL CONDITIONS
|
Operating relative humidity (H-H) |
10 - 90% |
Storage temperature (T-T) |
-40 - 70 °C |
Operating temperature (T-T) |
0 - 40 °C |
Storage relative humidity (H-H) |
5 - 90% |
Heat dissipation |
12.617 BTU/h |
Operating relative humidity range |
10 - 90% |
Storage temperature range (T-T) |
-40 - 70 °C |
Operating temperature range (T-T) |
0 - 40 °C |
Storage relative humidity range |
5 - 90% |
Heat dissipation |
12.617 BTU/h |
PACKAGING CONTENT
|
Quick start guide |
Y |
PACKAGING DATA
|
Quick start guide |
Yes |
Package type |
Box |
Quick start guide |
Y |
Package type |
Box |
PERFORMANCE
|
Harmonized System (HS) code |
85176990 |
Packet buffer memory |
1.5 MB |
Auto-negotiation |
Y |
PORTS & INTERFACES
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity |
5 |
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity |
5 |
POWER OVER ETHERNET (POE)
|
Power over Ethernet (PoE) |
No |
Power over Ethernet (PoE) support |
N |
TECHNICAL DETAILS
|
Rack mounting |
N |
Colour of product |
Black |
Housing material |
Plastic |
WEIGHT & DIMENSIONS
|
Height |
23 mm |
Width |
90 mm |
Depth |
72 mm |
Height |
23 mm |
Width |
90 mm |
Depth |
72 mm |
