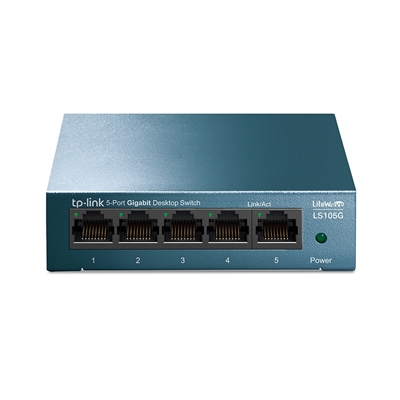

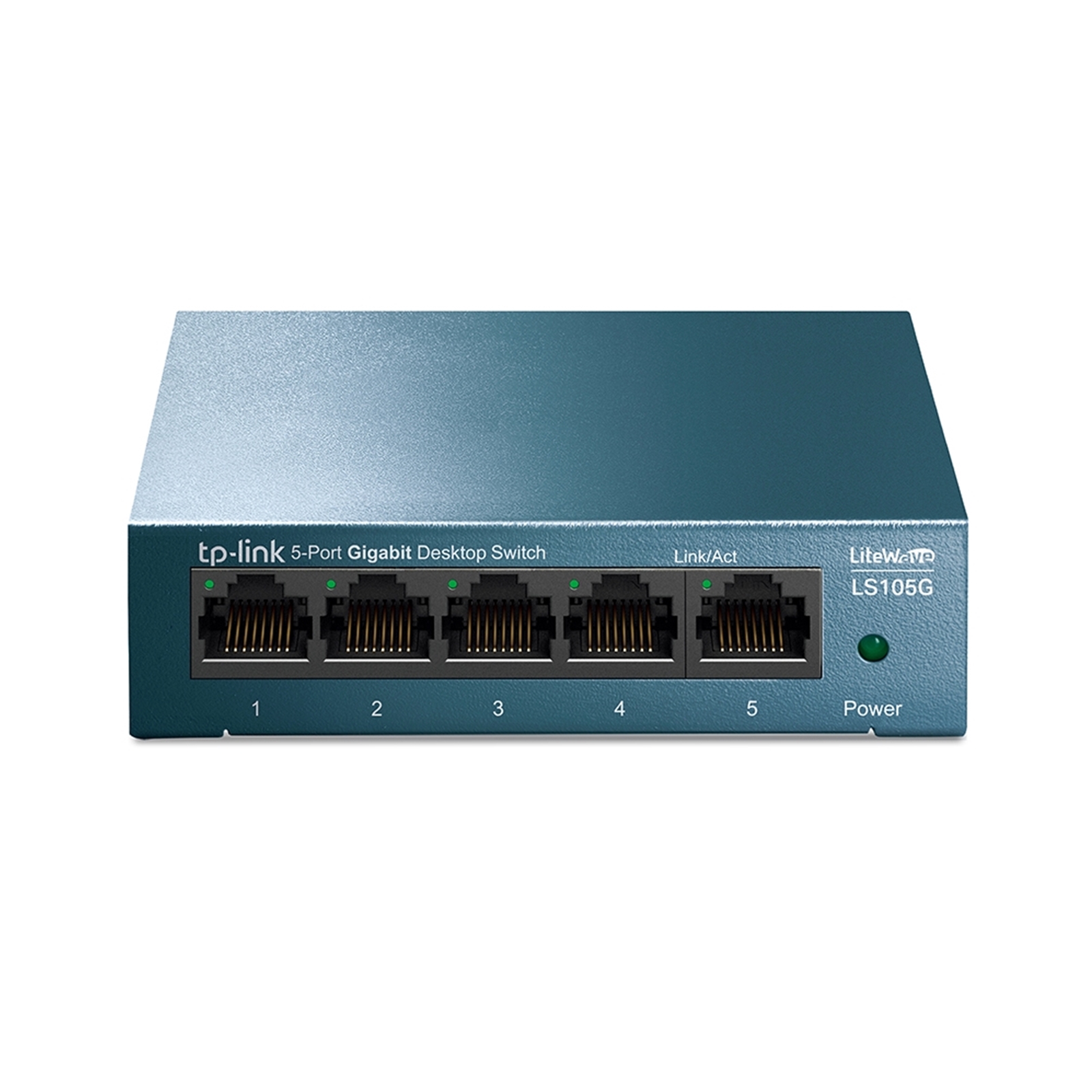

5-Port 10/100/1000Mbps Desktop Network Switch

Key Features
10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
Green Ethernet technology saves power
IEEE 802.3X flow control provides reliable data transfer
Steel housing, desktop or wall-mounting design
Support 802.1p/DSCP QoS function
Plug and play, no configuration needed

Let Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there's no need to worry about the type of cable to use.

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it's a win-win!

Durable Metal Casing
The interior components of LS105G are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, LS105G delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.

Use Where You Need, However You Need
The LS105G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p

Interface
5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity
Fanless

External Power Supply
External Power Adapter (Output: 5VDC / 0.6A)

LED Indicator
System Power
Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H )
3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)

Max Power Consumption
2.776W (220V/50Hz)

Max Heat Dissipation
9.466 BTU/h

PERFORMANCE

Packet Forwarding Rate
7.4 Mpps

MAC Address Table
2K

Packet Buffer Memory
1 Mb

Jumbo Frame
16 KB

SOFTWARE FEATURES

Advanced Features
Green Technology
802.3X Flow Control
802.1P/DSCP QoS

Transfer Method
Store and Forward

OTHERS

Certification
CE, FCC, RoHS

Package Contents
5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
