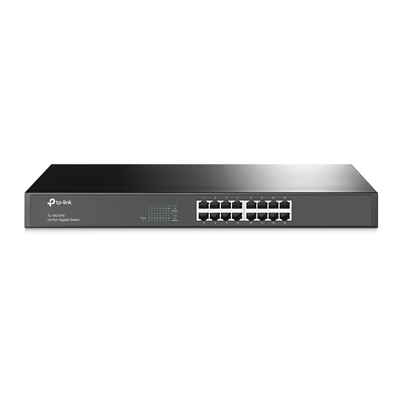

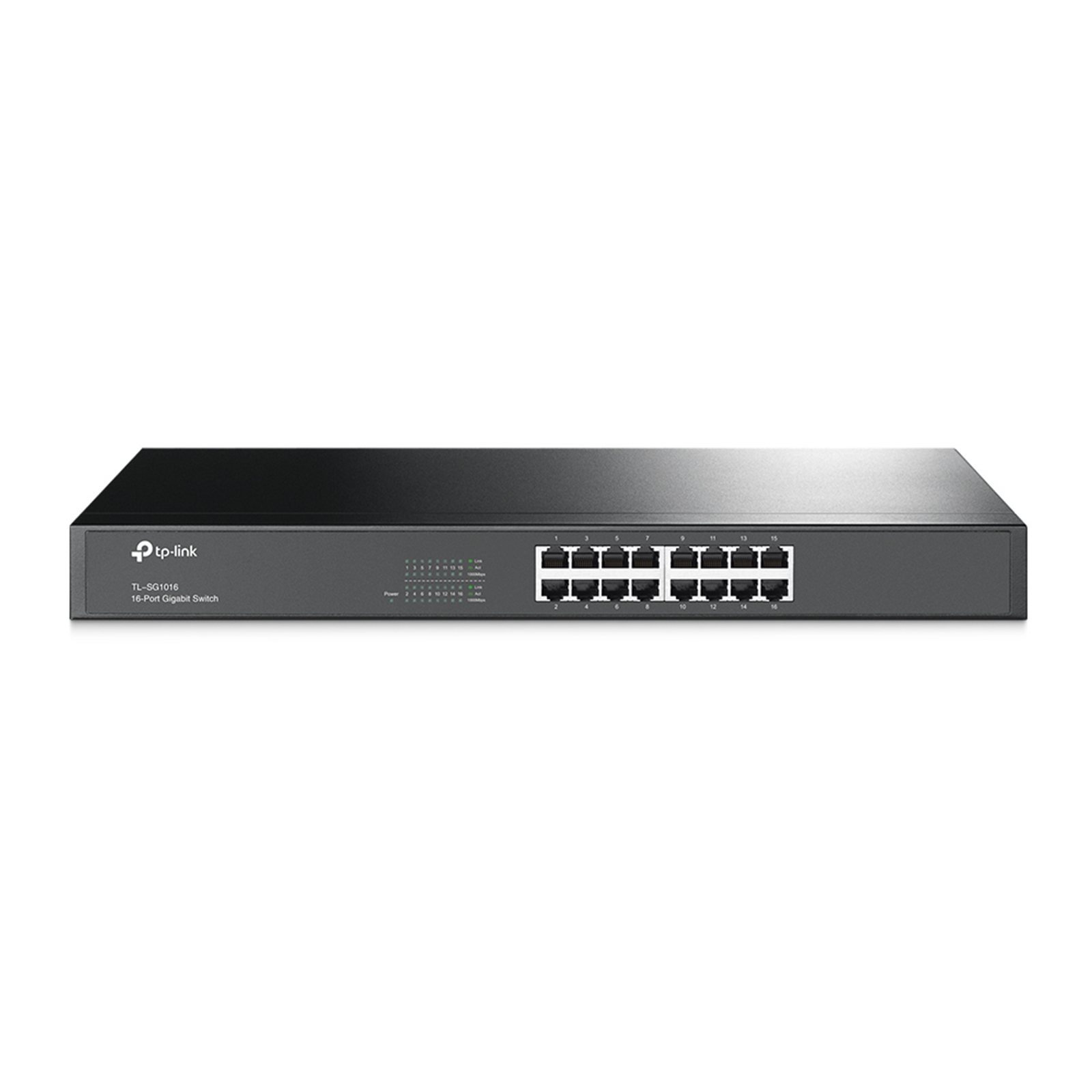

16-Port Gigabit Rackmount Network Switch
Key Features
16 10/100/1000Mbps RJ45 ports
Innovative energy-efficient technology saves power consumption
Supports MAC address self-learning and auto MDI/MDIX
Standard 19-inch rack-mountable steel case
What This Product Does
The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network
TP-LINK Green Technology
This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016 work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface
16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity
Fanless
Physical Security Lock
No
Power Supply
100-240VAC, 50/60Hz
Dimensions ( W x D x H )
17.3*7.1*1.7 in. (440*180*44 mm)
Mounting
Rack Mountable
Max Power Consumption
9.26W(220V/50Hz)
Max Heat Dissipation
31.60BTU/h
PERFORMANCE
Switching Capacity
32Gbps
Packet Forwarding Rate
23.8Mpps
MAC Address Table
8K
Jumbo Frame
10KB
QoS
802.1p/DSCP QoS*
*Only for V12 and later version
Green Technology
Yes
Transfer Method
Store-and-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Contents
16-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment
Operating Temperature: 0 - 40
Storage Temperature: -40 - 70
Operating Humidity: 10% - 90% non-condensing;
Storage Humidity: 5% - 90% non-condensing
Warranty:
Manufacturer Lifetime Warranty
DATA TRANSMISSION
|
MAC address table |
8000 entries |
Switching capacity |
32 Gbit/s |
Jumbo frames support |
Yes |
Store-and-forward |
Yes |
Forwarding rate |
23.8 Mpps |
Jumbo frames |
10000 |
DESIGN
|
Certification |
FCC, CE, RoHS |
Rack mounting |
Yes |
Form factor |
1U |
LED indicators |
Activity, Link, Power |
Product colour |
Black |
ENERGY MANAGEMENT
|
Power consumption (typical) |
9.26 W |
AC input frequency |
50 - 60 Hz |
AC input voltage |
100 - 240 V |
Power consumption (max) |
10.44 W |
LOGISTICS DATA
|
Harmonized System (HS) code |
85176990 |
MANAGEMENT FEATURES
|
Quality of Service (QoS) support |
Yes |
Switch type |
Unmanaged |
NETWORKING
|
Full duplex |
Yes |
Networking standards |
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
Flow control support |
Yes |
Port mirroring |
Yes |
IP routing |
Yes |
Ethernet LAN data rates |
10,100,480,800,1000 Mbit/s |
Auto MDI/MDI-X |
Yes |
Head-of-line (HOL) blocking |
Y |
Head-of-line (HOL) blocking |
Yes |
VLAN support |
Yes |
Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
Auto-negotiation |
Yes |
Policy-based routing |
Y |
Policy-based routing |
Yes |
OPERATIONAL CONDITIONS
|
Operating relative humidity (H-H) |
10 - 90% |
Storage temperature (T-T) |
-40 - 70 °C |
Operating temperature (T-T) |
0 - 40 °C |
Storage relative humidity (H-H) |
5 - 90% |
Heat dissipation |
35.6 BTU/h |
PACKAGING DATA
|
Cables included |
AC |
Rack mount kit |
Y |
Rack mount kit |
Yes |
PERFORMANCE
|
Fanless |
Yes |
Harmonized System (HS) code |
85176990 |
PORTS & INTERFACES
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity |
16 |
POWER OVER ETHERNET (POE)
|
Power over Ethernet (PoE) |
No |
SECURITY
|
Security algorithms |
802.1x RADIUS |
Access Control List (ACL) |
Yes |
IGMP snooping |
Yes |
Password protection |
Y |
Password protection |
Yes |
DHCP features |
DHCP client, DHCP server, DHCP snooping |
WEIGHT & DIMENSIONS
|
Height |
44 mm |
Width |
440 mm |
Depth |
180 mm |
