Key Features
24 10/100/1000Mbps RJ45 ports
Innovative energy-efficient technology saves power consumption
Supports MAC address self-learning and auto MDI/MDIX
Standard 19-inch rack-mountable steel case

Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface
24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity
Fanless

Physical Security Lock
No

Power Supply
100-240VAC, 50/60Hz

Dimensions ( W x D x H )
17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)

Mounting
19" Rack Mountable

Max Power Consumption
13.6W

Max Heat Dissipation
46.4BTU/h

PERFORMANCE

Switching Capacity
48Gbps

Packet Forwarding Rate
35.7Mpps

MAC Address Table
8K

Jumbo Frame
10KB

QoS
802.1p/DSCP QoS*
*Only for V11 and later version

Green Technology
Yes

Transfer Method
Store-and-Forward

OTHERS

Certification
FCC, CE, RoHS

Package Contents

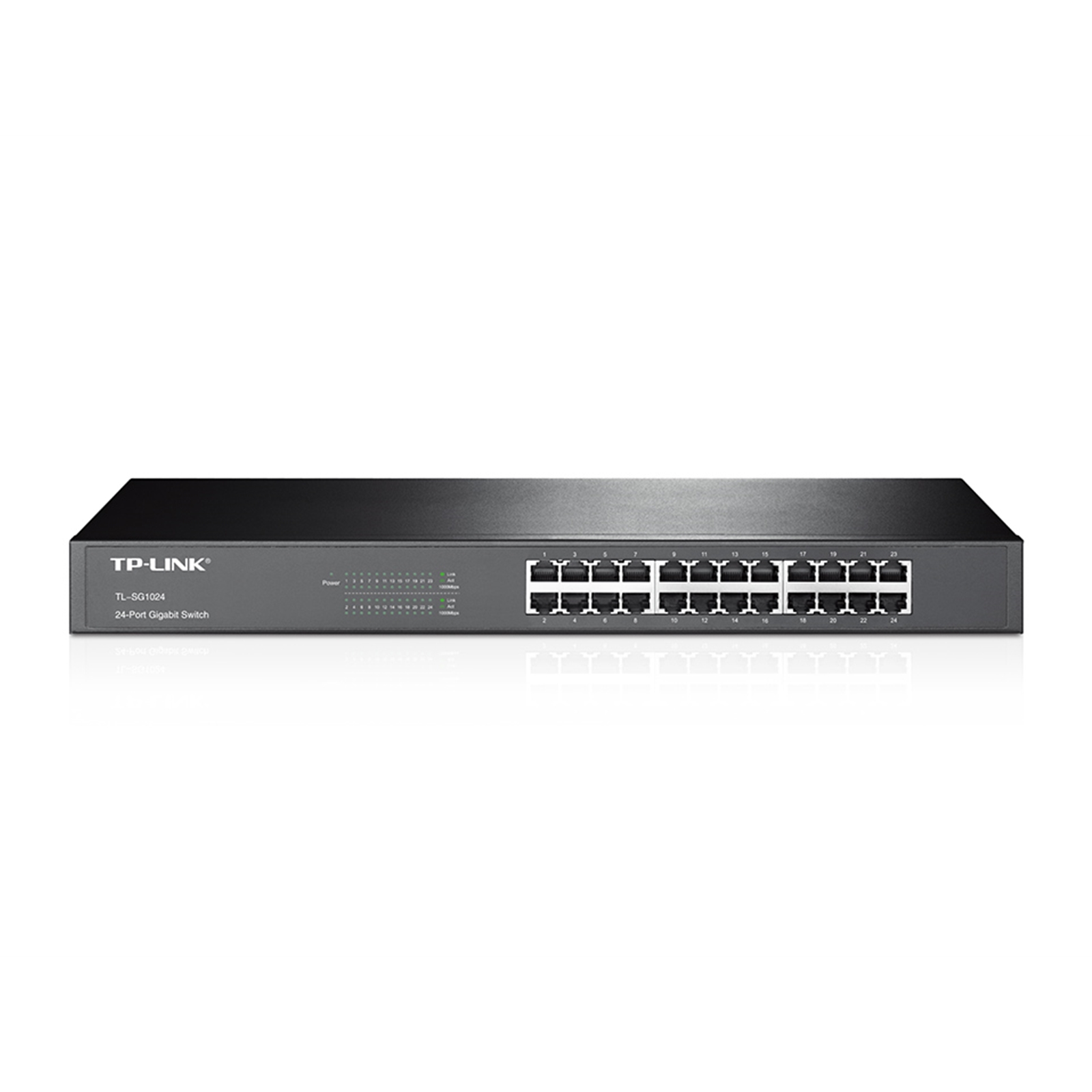

24-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet

Environment
Operating Temperature: 0 - 40
Storage Temperature: -40 - 70
Operating Humidity: 10% - 90% non-condensing;
Storage Humidity: 5% - 90% non-condensing

Manufacturer's Website:

www.tp-link.com

Warranty:

3 Years Return to Base Warranty.

Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our Returns Policy for more information.

CERTIFICATION
Certification	FCC, CE, RoHS
DATA TRANSMISSION
MAC address table	8000 entries
Switching capacity	48 Gbit/s
Jumbo frames support	Yes
Number of queues	4
Store-and-forward	Yes
Packet buffer memory	4.1 MB
Throughput	35.7 Mpps
Jumbo frames	10000
DESIGN
Certification	FCC, CE, RoHS
Rack mounting	Yes
LED indicators	Yes
Product colour	Black
ENERGY MANAGEMENT
Power consumption (typical)	14.19 W
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power supply included	Yes
LOGISTICS DATA
Harmonized System (HS) code	85176990
MANAGEMENT FEATURES
Switch layer	L2
Quality of Service (QoS) support	Yes
Switch type	Unmanaged
NETWORKING
Full duplex	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Flow control support	Yes
Port mirroring	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Number of VLANs	32
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	48.39 BTU/h
PACKAGING CONTENT
Cables included	AC
User guide	Yes
Rack mount kit	Yes
PACKAGING DATA
Cables included	AC
Package type	Box
User guide	Yes
Rack mount kit	Yes
PERFORMANCE
Harmonized System (HS) code	85176990
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
SECURITY
IGMP snooping	Yes
WEIGHT & DIMENSIONS
Height	44 mm
Width	294 mm
Depth	180 mm
