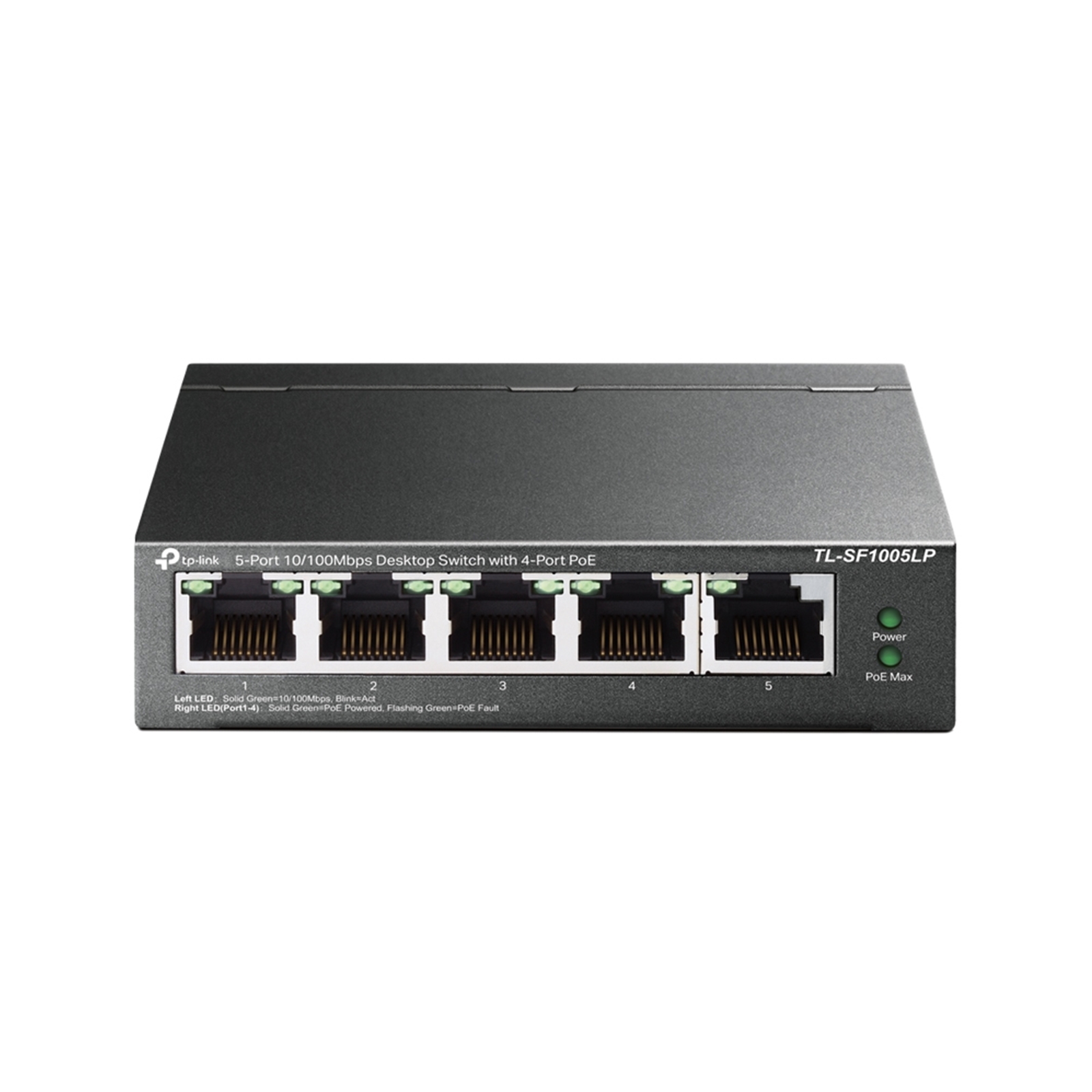

Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget for the 4x PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance, Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m, perfect for IP Camera deployment in large areas.

Specifications

HARDWARE FEATURES

Interface
5� 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
AUTO Negotiation
AUTO MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity
Fanless

Physical Security Lock
Yes

External Power Supply
External Power Adapter (Output: 53.5 V DC / 0.81 A)

Packet Forwarding Rate
0.744 Mpps

PoE Ports (RJ45)
Standard: 802.3 af compliant
PoE Ports: Ports 1–4
Power Supply: 41 W

Mac Address Table
2K

Jumbo Frame
2 KB

Switching Capacity
1 Gbps

Dimensions ( W x D x H )
3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)

Max Power Consumption
1.9 W (220 V / 50 Hz, no PD connected)
47 W (220 V / 50 Hz, with 41 W PD connected)

Max Heat Dissipation
6.48 BTU/h(no PD connected)
160.27 BTU/h(with 41 W PD connected)

SOFTWARE FEATURES

Transmission Method
Store-And-Forward

Advanced Functions
Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1–4)
Priority Mode Button (Ports 1–2)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS

Certification
FCC, CE, RoHS

Package Contents
TL-SF1005LP
Power Adapter
Installation Guide

Environment
Operating Temperature: 0–40 (32–104)
Storage Temperature: -40–70 (-40–158)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Manufacturer's Website:

www.tp-link.com

Warranty:

3 Years Return to Base Warranty.

CERTIFICATES
Certification	FCC, CE, RoHS
DESIGN
LED indicators	Y
Colour of product	Black
ENERGY MANAGEMENT
Power consumption (max)	63.51 W
Power consumption (max)	63.51 W
FEATURES
Certification	FCC, CE, RoHS
LED indicators	Yes
Product colour	Black
LED indicators	Y
Product colour	Black
LOGISTICS DATA
Harmonized System (HS) code	85176990
NETWORKING
Networking standards	IEEE 802.3af, IEEE 802.3x
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Operating relative humidity range	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature range (T-T)	0 - 40 °C
PACKAGING DATA
Package type	Box
PERFORMANCE
Certification	FCC, CE, RoHS
Harmonized System (HS) code	85176990
TECHNICAL DETAILS
Colour of product	Black
WEIGHT & DIMENSIONS
Height	25 mm
Width	99.8 mm
Depth	98 mm
Height	25 mm
Width	99.8 mm
Depth	98 mm
