What This Product Does

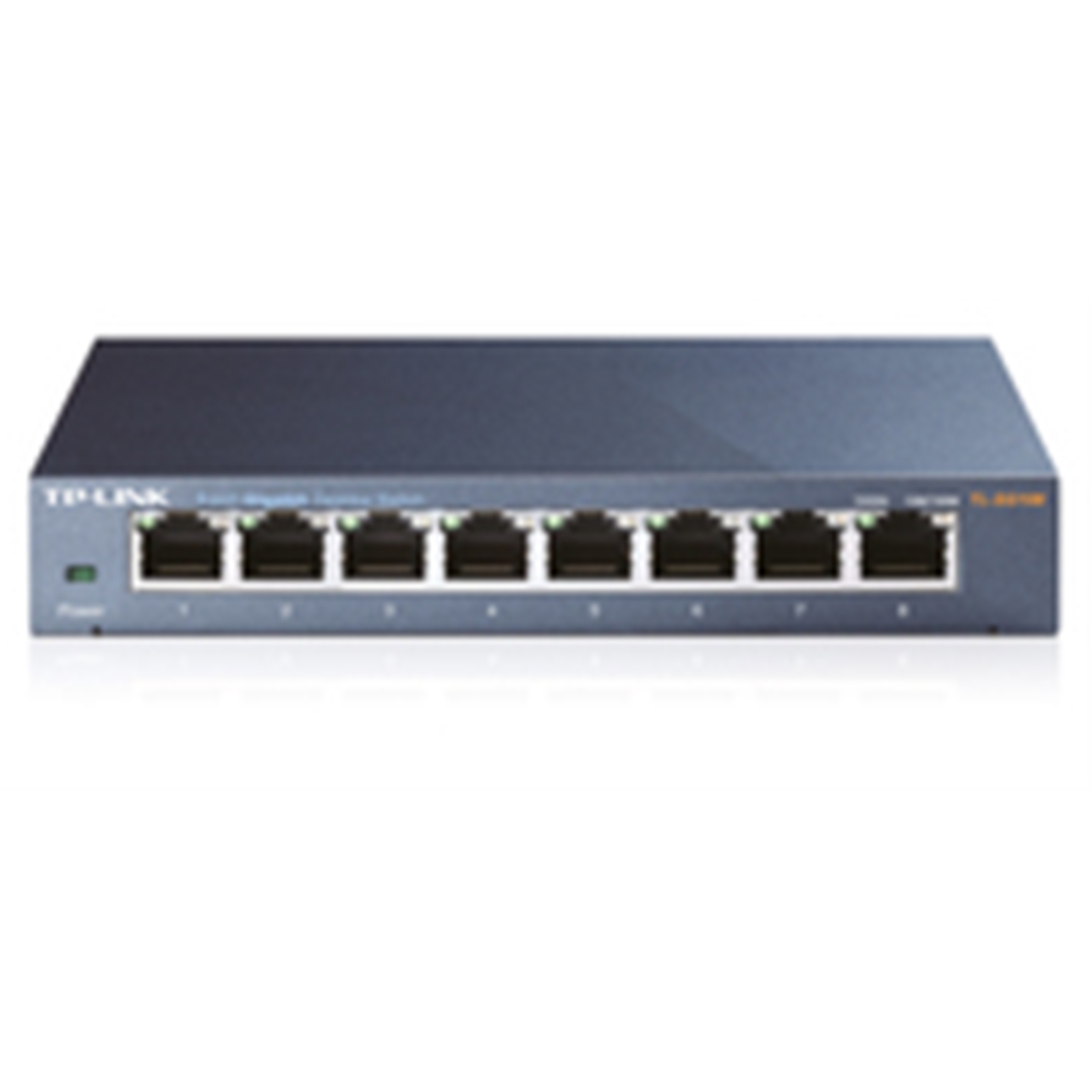

The TP-LINK 8 10/100/1000Mbps Desktop Switch TL-SG108 provides you an easy way to make the transition to gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save up to 82% of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG108 greatly expands your network capacity, enabling instant large files transferring. So,power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG108 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Key Features
8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Green Ethernet technology saves the power up to 82%
IEEE 802.3x flow control provides reliable data transfer
Steel housing, desktop or wall-mounting design
Support 802.1p/DSCP QoS and IGMP Snooping function
Plug and play, no configuration needed

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p

Interface
8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity
Fanless

External Power Supply
External Power Adapter
(Output: 9VDC / 0.6A)

Buffer Size
1.5Mb

LED Indicator
System Power
Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H )
6.2 x 4.0 x 1.0 in.
(158 x 101 x 25 mm)

Max Power Consumption
3.3W

Max Heat Dissipation
11.3BTU/h

PERFORMANCE

Packet Forwarding Rate
11.9Mpps

MAC Address Table
4K

Packet Buffer Memory
1.5Mb

Jumbo Frame
16KB

SOFTWARE FEATURES

Advanced Features
Green Technology, saving power up to 82%
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping

Transfer Method
Store and Forward

OTHERS

Certification
CE, FCC ,RoHS

Package Contents
8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide

Environment
Operating Temperature: 0 - 40
Storage Temperature: -40 - 70
Operating Humidity: 10% - 90%, non-condensing
Storage Humidity: 5% - 90% non-condensing
