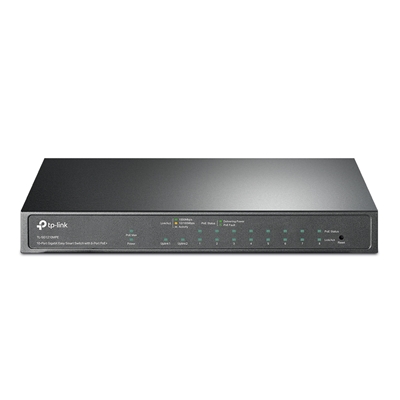

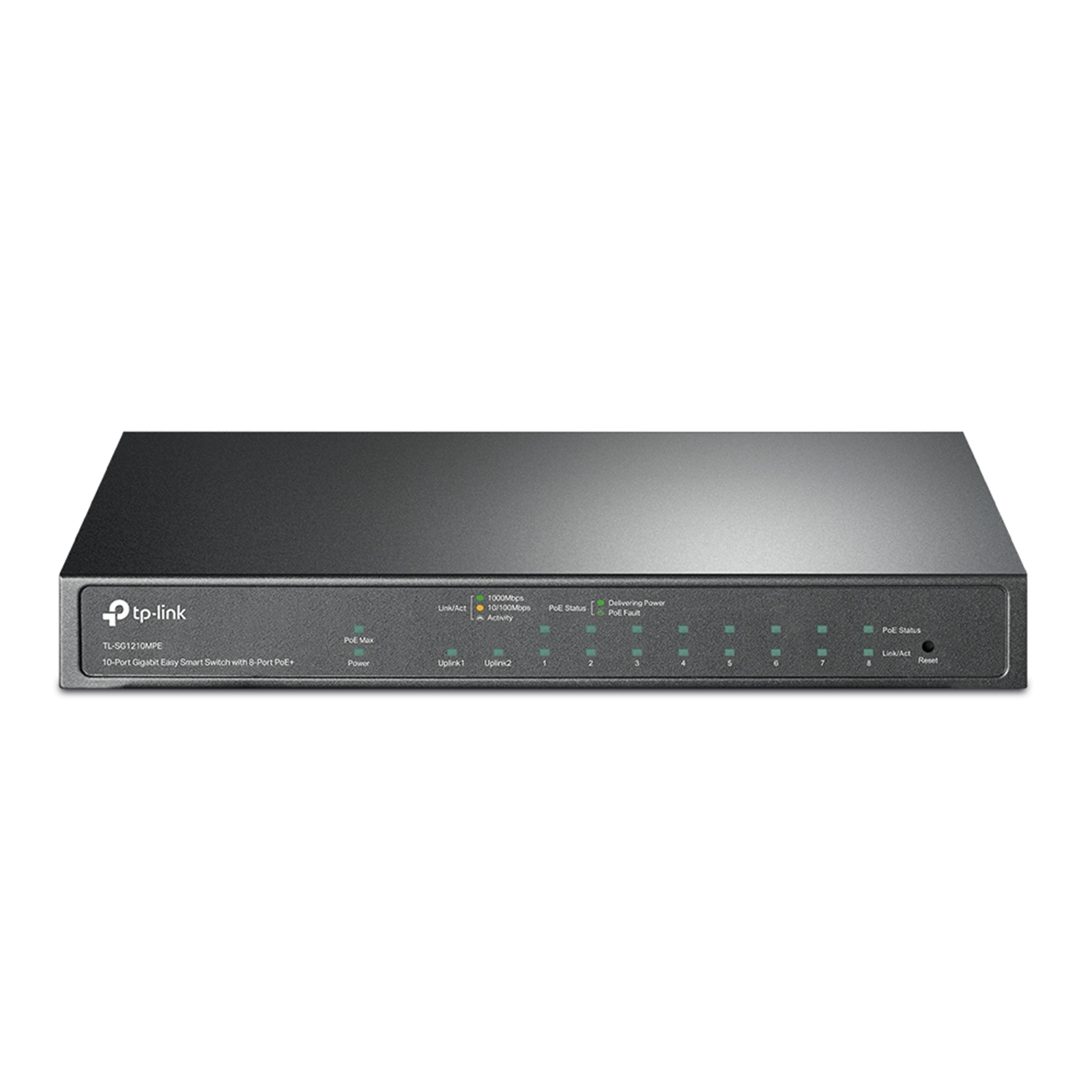

10-Port Gigabit Easy Smart Switch with 8-Port PoE+

Key Features
9 x gigabit RJ45 ports and 1 x combo gigabit SFP/RJ45 port
Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
Supports PoE power up to 123 W for all PoE ports*
Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and Easy Smart Configuration Utility simplify configuration
Fanless design lowers energy consumption and eliminates operating noise

What This Product Does
TP-Link TL-SG1210MPE is an easy smart switch with 9 x gigabit RJ45 ports and 1 x gigabit combo SFP/RJ45 port that requires no configuration. With 8 x PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Professional 10-Port Switch with 8-Port PoE+ (123 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget* for the 8 x PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.

Intelligent Power Management
When total power consumption exceeds 123 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing
The interior components of TL-SG1210MPE are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in its locations. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on.

Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z

Interface
9 x 10/100/1000 Mbps RJ45 Ports
1 x 1000 Mbps Combo SFP/RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity
Fanless

Power Supply
External Power Adapter (Output: 53.5 VDC/2.43 A)

PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 123 W

Dimensions ( W x D x H )
8.2 x 4.9 x 1.0 in (209 x 126 x 26 mm)

Max Power Consumption
7.66 W (220V / 50Hz with no PD connected)
141.54 W (220V / 50Hz with 123 W PD connected)

Max Heat Dissipation
26.12 BTU/h (220V / 50Hz with no PD connected)
482.65 BTU/h (220V / 50Hz with 123 W PD connected)

PERFORMANCE

Switching Capacity
20 Gbps

Packet Forwarding Rate
14.88 Mpps

MAC Address Table
4 K

Jumbo Frame
16 KB

SOFTWARE FEATURES

Quality of Service
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

PoE
Extend Mode**
PoE Auto Recovery

Management
Web-based GUI
Easy Smart Configuration Utility

Transmission Method
Store-And-Forward

OTHERS

Certification
FCC, CE, RoHS

Package Contents
TL-SG1210MPE
Power Adapter
Installation Guide
Rubber Feet

System Requirements
Microsoft Windows for running Utility


Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
