Power over Ethernet
Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port's power supply and protect the device from power overload operation.

Sturdy Metal Casing
Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

Specifications

HARDWARE FEATURES

Interface:
8 PoE+ 10/100/1000Mbps RJ45 Ports
1 10/100/1000Mbps RJ45 Port
1 Gigabit SFP Slot

Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-X MMF, SMF

Fan Quantity:
Fanless

Physical Security Lock:
Yes

Power Supply:
External Power Adapter (Output: 53.5VDC / 1.31A)

Backup Bandwidth:
20 Gbps

Packet Forwarding Rate:
14.88 Mpps

PoE+ Ports(RJ45):
Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port 8
PoE Power Budget: 63W

Mac Address Table:
4K

Jumbo Frame:
16 KB

Switching Capacity:
20 Gbps

Dimensions ( W x D x H ):
209 x 126 x 26 mm

Max Power Consumption:
7.11 W (220/50Hz. no PD connected)
78.13 W (220/50Hz. with 63W PD connected)

Max Heat Dissipation:
24.25 BTU/h (no PD connected)
266.42 BTU/h (with 63W PD connected)

SOFTWARE FEATURES

Advanced Features:
Compatible With IEEE 802.3af/at Compliant PDs
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping

Transmission Method:
Store-And-Forward

OTHERS

Certification:
CE, FCC, RoHS

Package Contents:
TL-SG1210P, Power Adapter, Installation Guide

Manufacturer's Website:

www.tp-link.com

Warranty:

3 Years Return to Base Warranty.

Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our Returns Policy for more information.

CERTIFICATES
Certification	CE, FCC, RoHS
CERTIFICATION
Certification	CE, FCC, RoHS
DATA TRANSMISSION
MAC address table	4000 entries
Switching capacity	20 Gbit/s
MAC address table	4000 entries
Store-and-forward	Yes
Switching capacity	20 Gbit/s
Store-and-forward	Y
10G support	N
DESIGN
Certification	CE, FCC, RoHS
LED indicators	Yes
Wall mountable	Yes
Product colour	Grey
Certification	CE, FCC, RoHS
LED indicators	Y
Wall mountable	Y
Housing material	Metal
Colour of product	Grey
Housing material	Metal
ENERGY MANAGEMENT
Power consumption (typical)	7.11 W
Power consumption (typical)	7.11 W
Input current	1.31 A
Heat dissipation	266.42 BTU/h
DC input voltage	53.5 V
Power consumption (max)	78.13 W
Power supply included	No
Power over Ethernet (PoE) Support	Y
Input current	1.31 A
DC input voltage	53.5 V
Power consumption (max)	78.13 W
Power supply included	N
ILLUMINATION/ALARMS
LED indicators	Y
LOGISTICS DATA
Harmonized System (HS) code	85176990
MANAGEMENT FEATURES
Quality of Service (QoS) support	Yes
Switch type	Unmanaged
Quality of Service (QoS) support	Y
NETWORKING
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
MAC address table	4000 entries
Networking standards	IEEE 802.1p,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x
Auto MDI/MDI-X	Yes
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Store-and-forward	Y
IGMP snooping	Y
Auto MDI/MDI-X	Y
10G support	N
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Auto-negotiation	Y
MAC address auto-learning supported	Y
MAC address auto-aging supported	Y
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	266.42 BTU/h
Operating relative humidity range	10 - 90%
Storage temperature range (T-T)	-40 - 70 °C
Operating temperature range (T-T)	0 - 50 °C
Storage relative humidity range	5 - 90%
Heat dissipation	266.42 BTU/h
OPTICAL FIBER
Fiber type	Single-mode
Fiber ethernet cabling technology	1000BASE-X
Fiber type	Single-mode
Fiber ethernet cabling technology	1000BASE-X
PACKAGING CONTENT
Cables included	AC
Manual	Yes
Quick start guide	Yes
Cables included	AC
User guide	Yes
Manual	Y
Quick start guide	Y
User guide	Y
PACKAGING DATA
Cables included	AC
Manual	Yes
Quick start guide	Yes
Cables included	AC
User guide	Yes
Manual	Y
Quick start guide	Y
User guide	Y
PERFORMANCE
Fanless	Yes
Harmonized System (HS) code	85176990
Fanless	Y
Auto-negotiation	Y
PORTS & INTERFACES
Gigabit Ethernet (copper) ports quantity	9
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	9
SFP module slots quantity	1
Gigabit Ethernet (copper) ports quantity	9
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	9
SFP module slots quantity	1
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	63 W
Power over Ethernet (PoE) support	Y
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	63 W
SECURITY
IGMP snooping	Yes
IGMP snooping	Y
TECHNICAL DETAILS
Colour of product	Grey
Housing material	Metal
WEIGHT & DIMENSIONS
Height	26 mm
Width	209 mm
Depth	126 mm
Height	26 mm
Width	209 mm
Depth	126 mm

Target Components

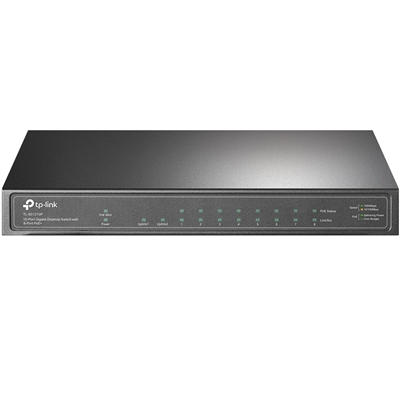

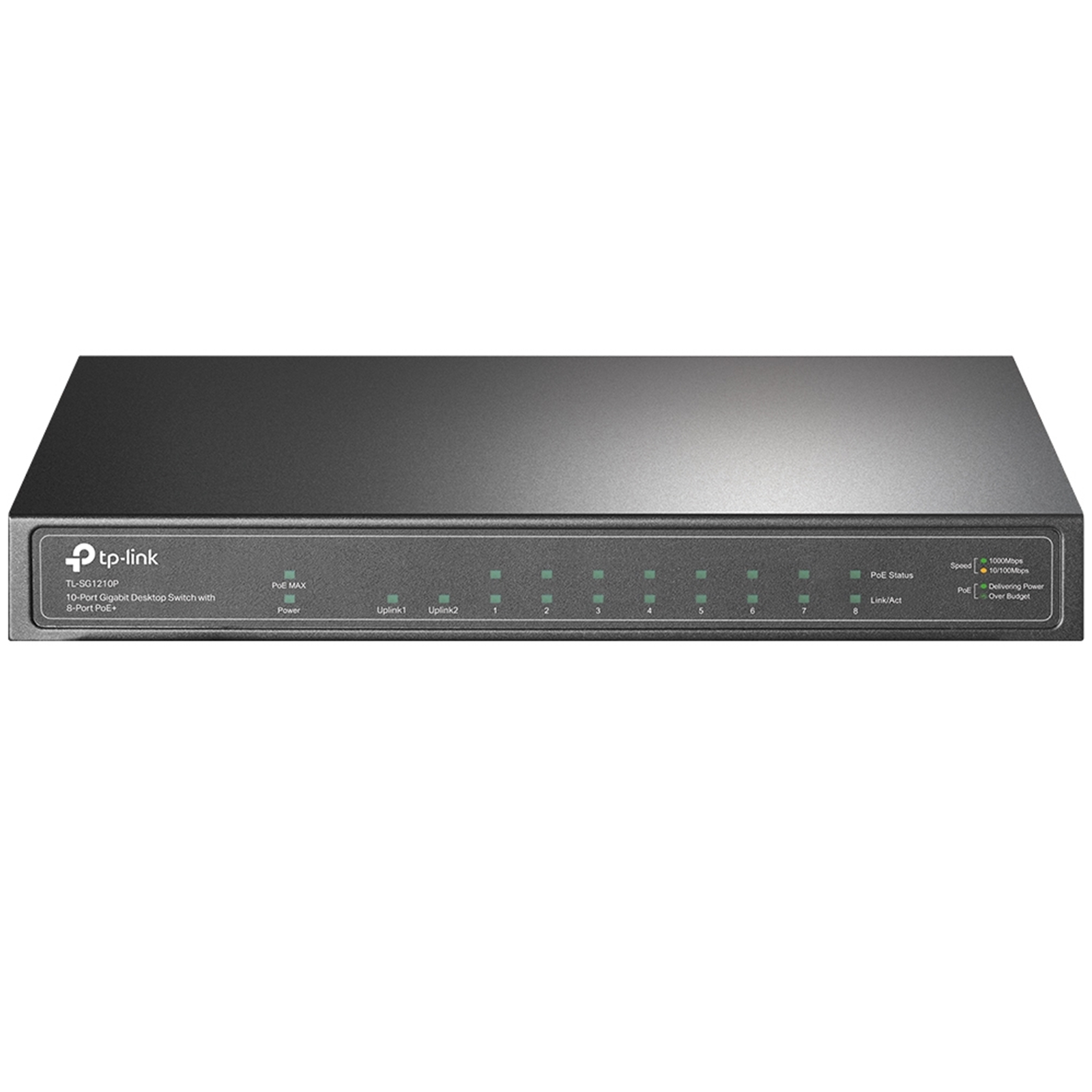

TP-Link TL-SG1210P 10-Port Metal Gigabit Desktop Switch with 8-Port PoE+ (63W)
