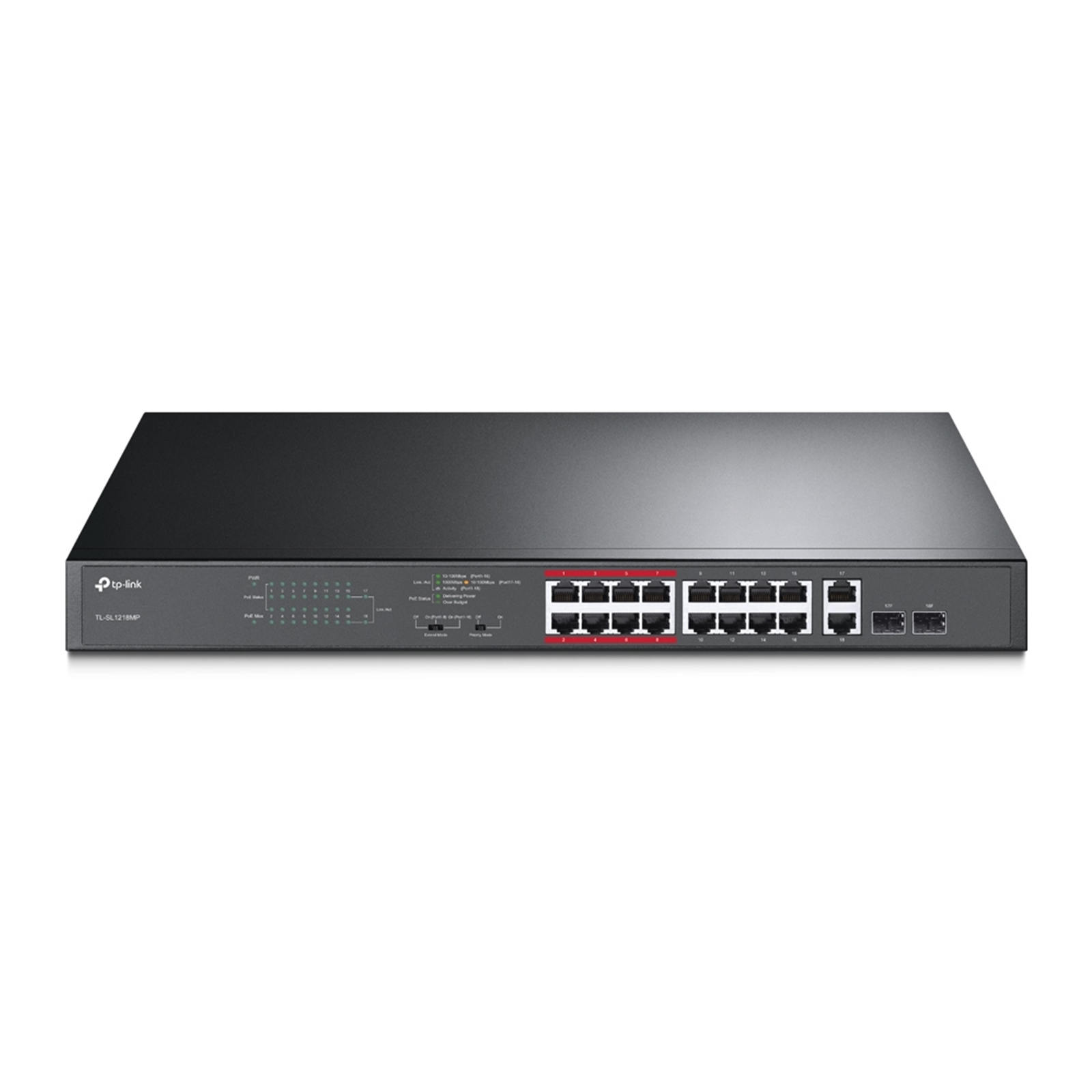

TP-Link TL-SL1218MP 16-Port Metal 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch (192W)

NPTPL-TLSL1218MP
Key Specifications
Ports16 Ports
Managed/UnmanagedUnmanaged
Speed10/100/1000
PoE capableYes
/productImages/80/NPTPL-TLSL1218MP_79344078.JPG
/productImages/80/NPTPL-TLSL1218MP_43810367.jpg
/productImages/80/NPTPL-TLSL1218MP_43810368.jpg
/productImages/80/NPTPL-TLSL1218MP_43810369.jpg
Manufacturer : TP-LINK
EAN : 6935364099817
Manufacturer Part Code : TL-SL1218MP
Weight : 2.95 kg
Login For Pricing

Key Specifications
Ports16 Ports
Managed/UnmanagedUnmanaged
Speed10/100/1000
PoE capableYes
Manufacturer :
TP-LINK

EAN :
6935364099817

Manufacturer Part Code :
TL-SL1218MP

Weight :
2.95 kg
Recommended Products
1335Network Cables
See details
1328Homeplugs
See details
1330NAS
See details
1326Routers & Access Points
See details

Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance

High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.

Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.


Specifications

HARDWARE FEATURES

Interface:
16 PoE+ 10/100Mbps RJ45 Ports
2 10/100/1000Mbps RJ45 Ports
2 Combo Gigabit SFP Slots

Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-X MMF, SMF

Fan Quantity:
2 Fans

Physical Security Lock:
Yes

Power Supply:
100-240V AC, 50/60 Hz

Backup Bandwidth:
7.2 Gbps

PoE+ Ports(RJ45):
Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port16
PoE Power Budget: 192W

Mac Address Table:
8K

Dimensions ( W x D x H ):
17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)

Max Power Consumption:
18.73 W (220/50Hz. no PD connected)
217.22 W (220/50Hz. with 192W PD connected)

Max Heat Dissipation:
63.89 BTU/h (no PD connected)
741.15 BTU/h (with 192W PD connected)

SOFTWARE FEATURES

Advanced Features:
Compatible With IEEE 802.3at/af Compliant PDs
Port Priority Mode
Extend Mode (Up to 250m PoE power supply and data transmission)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control

Transmission Method:
Store-And-Forward

OTHERS

Certification:
CE, FCC, RoHS

Package Contents:
TL-SL1218MP, Power Cable, Installation Guide
Manufacturer's Website:
www.tp-link.com
Warranty:
3 Years Return to Base Warranty.
DATA TRANSMISSION
MAC address table 8000 entries
Switching capacity 7.2 Gbit/s
MAC address table 8000 entries
Jumbo frames support Yes
Store-and-forward Yes
Switching capacity 7.2 Gbit/s
Packet buffer memory 4.1 MB
Packet forwarding rate (1 Gbps) 5.36 pps
Jumbo frames 10000
Jumbo frames support Y
Store-and-forward Y
10G support N
Packet buffer memory 4.1 MB
Packet forwarding rate (1 Gbps) 5.36 pps
Jumbo frames 10
DESIGN
Rack mounting Yes
LED indicators LAN, PoE, Status
Product colour Black
Rack mounting Y
Stackable No
Number of fans 2 fan(s)
LED indicators LAN, PoE, Status
Colour of product Black
Stackable N
Number of fans 2 fan(s)
ENERGY MANAGEMENT
Power consumption (typical) 18.7 W
Power source AC
Power consumption (typical) 18.7 W
Heat dissipation 741.15 BTU/h
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power over Ethernet (PoE) Support Y
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power supply included Y
ILLUMINATION/ALARMS
LED indicators LAN, PoE, Status
LOGISTICS DATA
Harmonized System (HS) code 85176990
MANAGEMENT FEATURES
Switch type Unmanaged
MEMORY
Packet buffer memory 4.1 MB
NETWORKING
Networking standards IEEE 802.3af, IEEE 802.3at
MAC address table 8000 entries
Flow control support Yes
Networking standards IEEE 802.3af,IEEE 802.3at
Auto MDI/MDI-X Yes
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support Y
Jumbo Frames support Y
Store-and-forward Y
Auto MDI/MDI-X Y
10G support N
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 741.15 BTU/h
Operating relative humidity range 10 - 90%
Storage temperature range (T-T) -40 - 70 °C
Operating temperature range (T-T) 0 - 40 °C
Storage relative humidity range 5 - 90%
Heat dissipation 741.15 BTU/h
PACKAGING CONTENT
Cables included LAN (RJ-45)
Manual Yes
Quick start guide Yes
Cables included LAN (RJ-45)
User guide Yes
Manual Y
Quick start guide Y
User guide Y
PACKAGING DATA
Cables included LAN (RJ-45)
Manual Yes
Quick start guide Yes
Cables included LAN (RJ-45)
User guide Yes
Manual Y
Quick start guide Y
User guide Y
PERFORMANCE
Harmonized System (HS) code 85176990
Stackable N
Packet buffer memory 4.1 MB
PORTS & INTERFACES
Gigabit Ethernet (copper) ports quantity 2
Fast Ethernet (copper) ports quantity 16
Combo SFP ports quantity 2
Installed SFP+ modules quantity 0
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity 16
Gigabit Ethernet (copper) ports quantity 2
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T
Power over Ethernet (PoE) ports quantity 1
Fast Ethernet (copper) ports quantity 16
Combo SFP ports quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 20
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 1
Power over Ethernet plus (PoE+) ports quantity 16
Total Power over Ethernet (PoE) budget 192 W
Power over Ethernet (PoE) support Y
Power over Ethernet (PoE) ports quantity 1
Total Power over Ethernet (PoE) budget 192 W
SECURITY
MAC address filtering Yes
MAC address filtering Y
TECHNICAL DETAILS
Rack mounting Y
Colour of product Black
Stackable N
WEIGHT & DIMENSIONS
Height 44 mm
Width 440 mm
Depth 180 mm
Height 44 mm
Width 440 mm
Depth 180 mm
