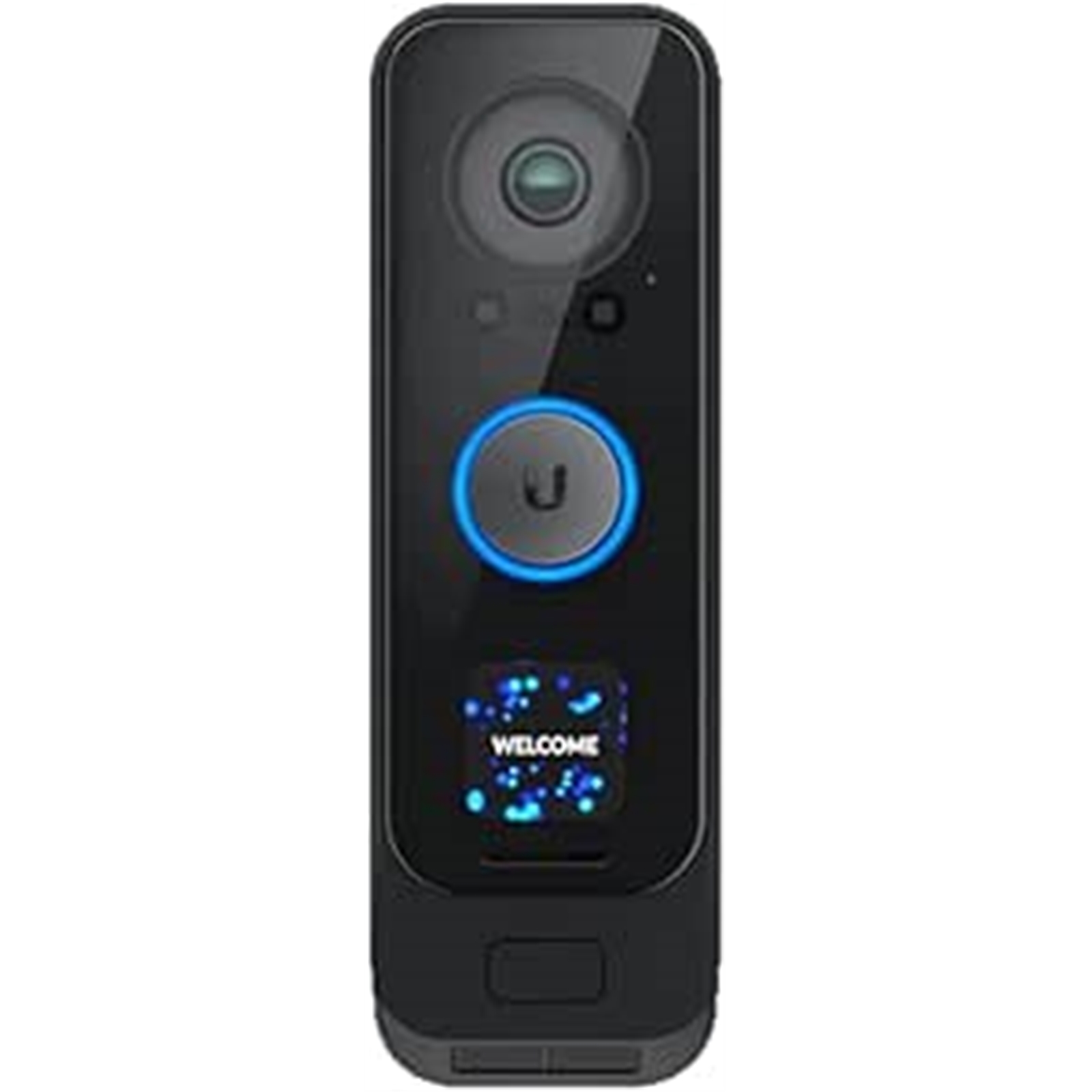

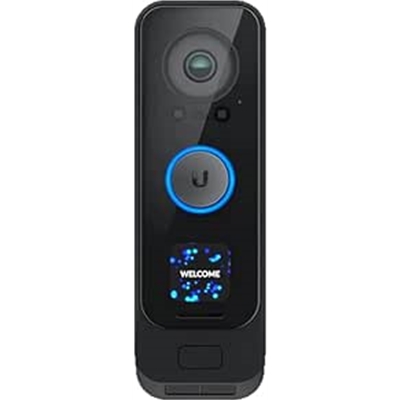

The Ubiquiti UVC-G4-Doorbell Pro UniFi Protect WiFi 5 Video Doorbell Intercom is a WiFi-enabled video doorbell equipped with a primary 5MP camera and a secondary 8MP package camera. The doorbell's main camera is equipped with IR LED to provide enhanced night vision that, when combined with the built-in porch light, ensures a reliably clear surveillance feed around the clock. The G4 Doorbell Pro also features echo-cancelling, two-way audio so you can interact with visitors, and a programmable display which allows you to give alerts or delivery instructions to couriers. Designed to be a powerful, plug-and-play security tool, the G4 Doorbell Pro can be set up and configured in minutes with the UniFi Protect application.
Specifications
Mechanical
Dimensions
160.6 x 51.7 x 28.7 mm (6.32 x 2.03 x 1.13 in.)
Weight
Without mount: 253 g (8.92 oz.)
With flat wall mount: 286 g (10.08 oz.)
With 20° wedge mount: 325 g (11.46 oz.)
Enclosure materials
Polycarbonate, aluminium alloy
Mounting materials
Flat wall mount: aluminium alloy
20° wedge mount: polycarbonate
Weatherproofing
IPX4
Optics
Sensor
5 MP CMOS sensor
Lens
Fixed focal length
View angle
H: 138°; V: 114°; D: 155°
Night mode
IR LED illumination and an IR cut filter
Video
Video compression
H.264
Resolution
1600 x 1200 (4:3)
Maximum frame rate
30 FPS
System
Processor specs
Quad core Arm Cortex-A53 based chip
Memory information
512 MB
Management interface
UniFi Protect application
Networking interface
802.11a/b/g/n/ac WiFi
Bluetooth 5.0
GbE support (with UACC-Adapter-DBPOE - sold separately)
Flash memory support
256 MB
Max. power consumption
10VA
Power requirements
16 to 24VAC, 1.25A max., 50/60 Hz
USB-C power cable, 5VDC, 2A
Power supplies sold separately, see accessories tab
Supported voltage range
37 to 57VDC
Link/activity LED
Yes
Button
Factory reset
Mounting
Flat wall, 20° wedge (kits included)
Operating temperature
-10°C to 40°C (14°F to 104°F)
Operating humidity
10% to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (can be disabled)
Speaker
Yes
Software
UniFi OS application
UniFi Protect
Mobile app
UniFi Protect (iOS and Android)
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
|
CAMERA
|
| Megapixel (approx.) |
5 MP |
| Sensor type |
CMOS |
| Night vision |
Yes |
| Maximum video resolution |
1600 x 1200 pixels |
| Maximum frame rate |
30 fps |
| Built-in camera |
Yes |
| Second camera resolution |
8 MP |
| Horizontal field of view |
138° |
| Vertical field of view |
114° |
| Diagonal field of view |
155° |
FEATURES
|
| Certification |
FCC, IC, CE |
| Audio system |
2-way |
| Product colour |
Black |
| LED type |
IR |
| Housing material |
Aluminium, Polycarbonate (PC) |
| Mounting type |
Wall |
| International Protection (IP) code |
IPX4 |
| Smartphone/tablet remote support |
Yes |
| Weatherproof |
Yes |
| Illuminated push button |
Yes |
| Motion detection supported |
Yes |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-10 - 40 °C |
PACKAGING CONTENT
|
| Manual |
Yes |
| Mounting bracket(s) included |
Yes |
PERFORMANCE
|
| Built-in microphone |
Yes |
| Built-in speaker(s) |
Yes |
| Reset button |
Yes |
| Echo cancellation |
Yes |
| Built-in processor |
Yes |
| Internal storage capacity |
0.256 GB |
PORTS & INTERFACES
|
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Connectivity technology |
Wireless |
| Wi-Fi |
Yes |
POWER
|
| Input voltage |
16 - 24 V |
| Power source type |
AC |
| AC input frequency |
50 - 60 Hz |
| DC input voltage |
37 - 57 V |
WEIGHT & DIMENSIONS
|
| Bell height |
16.1 cm |
| Bell width |
5.17 cm |
| Bell depth |
2.87 cm |
| Bell weight |
253 g |
