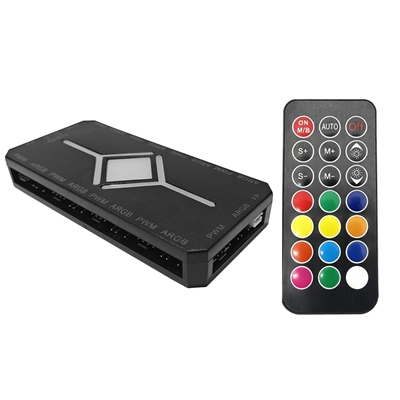

Manage every aspect of your fans functionality using the 9 Port PWM ARGB Hub. This intelligent 3 in 1 multi-functional fan controller combining optimal fan control, ARGB lighting customisation and convenient installation.

It lets you control up to eight 3pin DC or 4pin PWM fans and one CPU cooler. The hub supports fan speed, out-of-the-box control with a radio frequency remote control or software control of multiple fans through a single header.

Complete with a SATA connector and an embedded magnet for easy installation, the 9 Port PWM ARGB hub puts your setup at your control.

Specifications

9 Port ARGB Hub Specifications
ARGB Device Supported Qty: 9
Fan Speed Connector Qty: 1
Fan Connectors Qty: 9
Fan Connectors: 4pin PWM / 3pin
LED Connectors Qty: 9
LED Connectors: 3pin ARGB
Motherboard Sync: Yes - 3pin AURA and VDG (Gigabyte Only)
Other Connectors: Temperature PWM Input Cable x 1 / AURA Sync and VDG Cable x 1 / SATA Cable x 1
Powered Via: SATA
LED Output: 6A Max.
LED Output: 30W Max.
Fan Output: 12V / 3A Max.
Fan Output: 36W Max.
Voltage: 12V (Fan Motor) and 5V (ARGB LEDs)
Current: 3A
Net Weight: 0.084KGs

RF Remote Controller Specification
Connection: RF
Dimensions: 39mm x 6mm x 85mm (W x H x D)
Net Weight: 0.014KGs
Working Temperature: Minus 20 - Plus 45 Degree Celsius
Voltage Supply: 3V
Static Power Consumption: 5UA
Output Current: 10MA Max.
Output Power: 0.03W Max.
Frequency: 433MHz
Receiver Range: 10 Meters
Battery Model: 2025

General Specifications

Manufacturer Part Number: 9-PORT-PWM-HUB
EAN Number: 5055492416261
Has Mains Plug: No
Colour: Black
What's In The Box: Fan Hub
RF Remote Controller
SATA Cable
Temperature PWM Input Cable
AURA Sync Cable
VDG Cable
Unit (Product) Dimensions (mm): 119mm x 55mm x 18mm (W x H x D)
Packaging Dimensions (mm): 130mm x 192mm x 25mm (W x H x D)
Net Weight (KGs): 0.1 KGs
Gross Weight (KGs): 0.12 KGs
