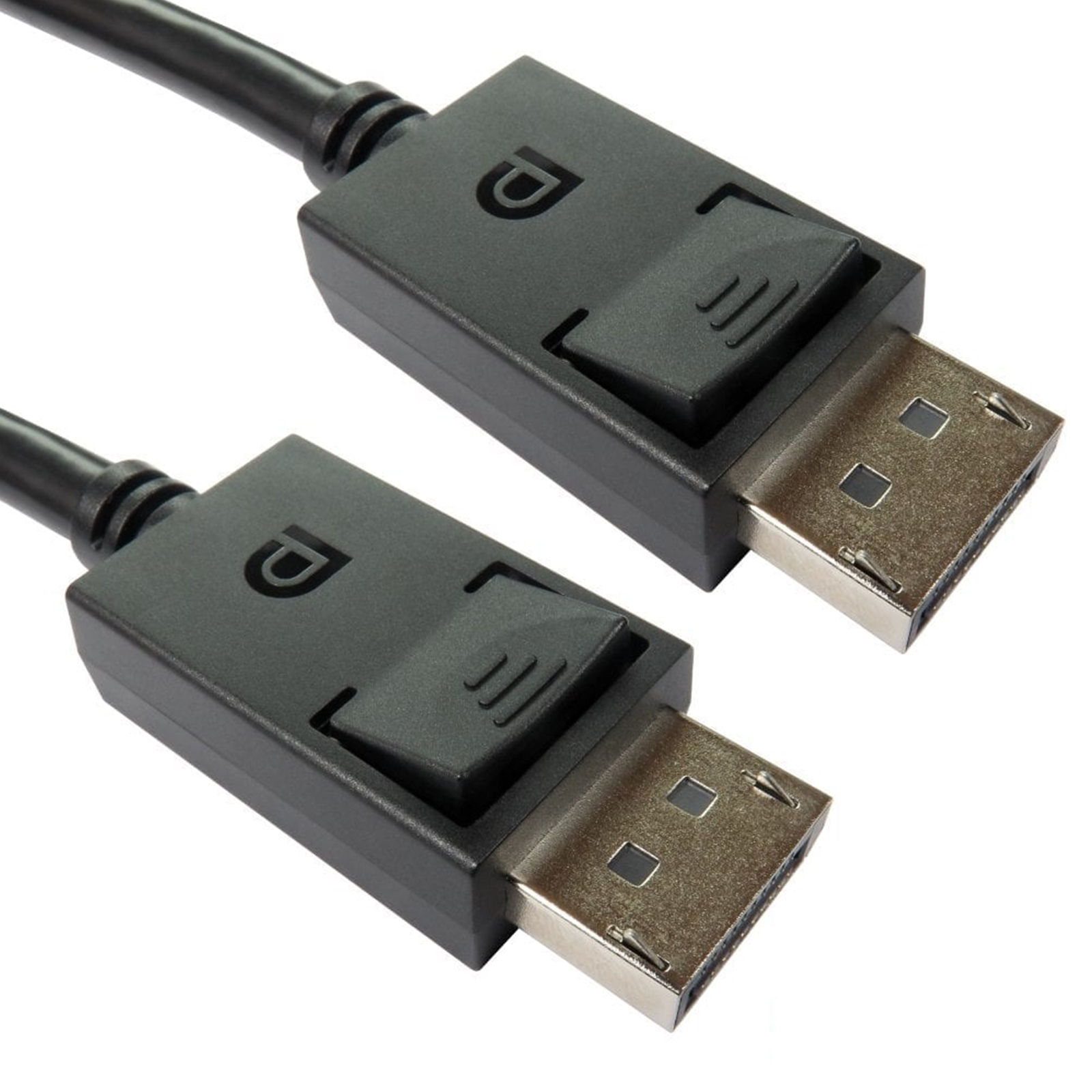

DisplayPort (M) to DisplayPort (M), DisplayPort 2.1, 1m, 8K60Hz Support, 2K240Hz (2560 x 1440) Support, UHBR10, 16k30Hz Support, 1080p Support 360Hz, Black

CLTAR-CDLDP4001
Key Specifications
Connection ADisplayPort (M)
Connection BDisplayPort (M)
Length1m
ColourBlack
/productImages/80/CLTAR-CDLDP4001.jpg
/productImages/80/214695.JPG
Manufacturer : TARGET
EAN : 5055781250231
Manufacturer Part Code : CDLDP40-01
Weight : 0.1 kg
Login For Pricing

Key Specifications
Connection ADisplayPort (M)
Connection BDisplayPort (M)
Length1m
ColourBlack
Manufacturer :
TARGET

EAN :
5055781250231

Manufacturer Part Code :
CDLDP40-01

Weight :
0.1 kg
Recommended Products
1359Monitors
See details
1334Data Cables
See details
1305USB Hubs
See details
1324Cleaning Cloths & Wipes
See details

CDLDP40 Range of DisplayPort v2.1 Cables are VESA Certified DP40 Cables and Support Transmission Modes up to UHBR10. The Cables Support Resolutions up to 1080p 360Hz, 4K @ 165Hz and 8K @ 60Hz (using Display Stream Compression)

Features
Black ABS hood
Nickel plated connector
40Gbps Bandwidth (UHBR10)
Supports: 1080p@360Hz, 2K@240Hz, 4K@165Hz, 8K@60Hz (DSC), 16K@30Hz (DSC) resolution
Supports 32-bit audio channels and 1536KHz audio sample frequency
Supports PCM, AC-3, DTS and other audio formats
Supports Multi-Stream Transport (MST)
Supports 3D visual effects
Supports Dynamic HDR
Compatible with G-Sync and FreeSync vertical synchronization technology

Specifications

Type
DisplayPort Cable

Cable Length
1 m

Connector
20 pin DisplayPort - Male

< b>Connector (Second End)
20 pin DisplayPort - Male

Compliant Standards
DisplayPort 2.1

Colour
Black

Manufacturer Warranty
1-year warranty
Warranty:
1 Year Return To Base Warranty

Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our Returns Policy for more information.
FEATURES
Cable length 1 m
Data transfer rate 40 Gbit/s
Product colour Black
Supported graphics resolutions 2560 x 1440, 15360 x 8640
Supported video modes 1080p, 8640p, 2160p
Connector 1 DisplayPort
Connector 2 DisplayPort
Connector contacts plating Nickel
Maximum refresh rate 360 Hz
3D Yes
Dolby technologies DTS
Connector 1 form factor Straight
Connector 2 form factor Straight
DisplayPort version 2.1
Connector 1 gender Male
Connector 2 gender Male
High Dynamic Range (HDR) supported Yes
Multi-Stream Transport (MST) Yes
Display Stream Compression (DSC) Yes
OTHER FEATURES
Supported resolutions 1080p@360Hz, 2K@240Hz, 4K@165Hz, 8K@60Hz (DSC), 16K@30Hz
PACKAGING CONTENT
Quantity per pack 1 pc(s)
PACKAGING DATA
Quantity per pack 1 pc(s)
