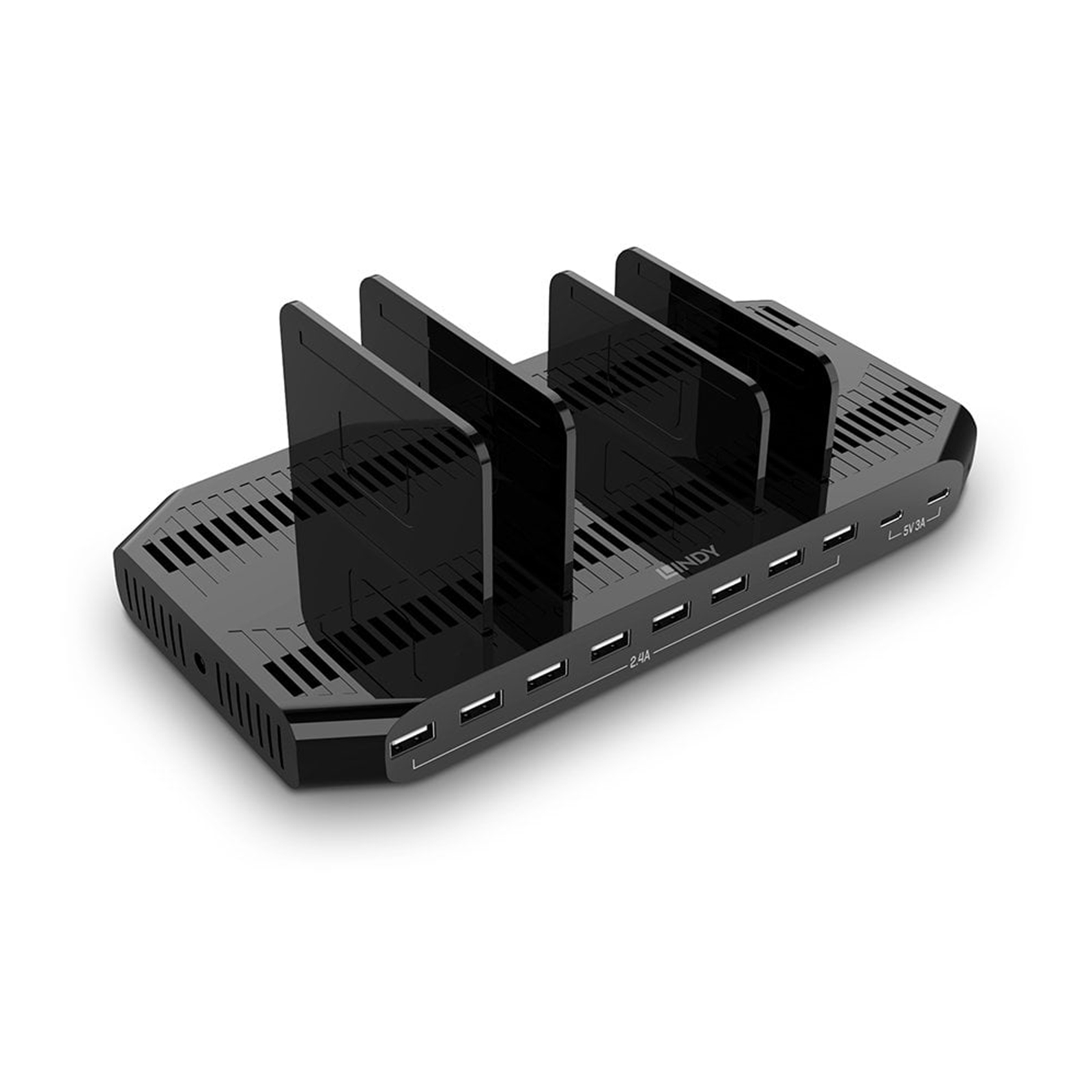

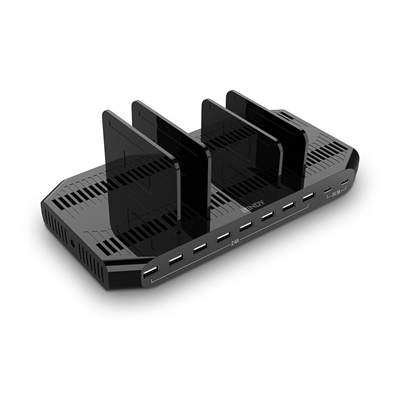

The Lindy 120W 10 Port USB Charging Station allows charging up to 8 USB devices via Type A and 2 via Type C like tablets or smartphones.
Each USB Type A port can provide up to 5V 2.4A, each USB Type C port can provide up to 5V 3A to satisfy the most power hungry devices. If all 10 ports are occupied and/or when total power draw is higher than 120W, load balancing will occur.
With its smart charging function and support of many different protocols like QC 3.0 (only type C ports) , Samsung AFC and Apple 5V 2.4A Charging Protocol and BC 1.2 (only Type A ports) this USB Charging Station can recognise the connected device to automatically adjust the charging current for a fast and safe charge while also providing overcurrent, overvoltage and short-circuit protection to avoid excessive current damaging the device.
Plastic dividers can be assembled and stood on the top of the unit, which allows different widths for different tablets or mobile phone sizes.
This product is perfect for use in schools, libraries, hotels, restaurants or any location that uses multiple devices.
Country specific power cables are provided for seamless use of the charging station, ideal for global events or integration into installations abroad.
Specifications
Performance
Charger Compatibility
Smartphone, Tablet
Power Source Type
AC
USB 2.0 Ports Quantity
8
USB Type-C ports Quantity
2
Fast Charging Technology
Quick Charge 3.0
Charger Type
Indoor
Number Of Simultaneously Connected Devices (Max)
10
Design
Product Colour
Black
Cable Length
0.9 m
Housing Material
Plastic
Power
Maximum Output Voltage
5 V
Output Current (5V)
21 A
Port 1 Output Current
2.4 A
Port 2 Output Current
3 A
Compatible Power Plug Types
AU, EU, UK, US
Weight & Dimensions
Width
238 mm
Depth
118 mm
Height
26 mm
Weight
980 g
Operational Conditions
Operating Temperature (T-T)
5 - 35 °C
Storage Temperature (T-T)
-20 - 50 °C
Operating Relative Humidity (H-H)
20 - 80%
Certificates
Compliance Certificates
CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), REACH, RoHS
Sustainability
Sustainability Compliance
Yes
Warranty
2 Years
Package Contents
USB Charging Station
11 Plastic Separators
20V 6A PSU with 5.5/2.5mm DC cable, 0.9m (2.95ft)
4 Country Specific Power Cables (Schuko/US/UK/AUS to IEC C5), 0.9m (2.95ft)
LINDY Manual
|
DESIGN
|
| Cable length |
0.9 m |
| Product colour |
Black |
| Housing material |
Plastic |
ENERGY MANAGEMENT
|
| Compatible power plug types |
AU, EU, UK, US |
| Port 1 output current |
2.4 A |
| Port 2 output current |
3 A |
| Output current (5V) |
21 A |
| Maximum output voltage |
5 V |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating temperature (T-T) |
5 - 35 °C |
OTHER FEATURES
|
| Packaging content |
USB Charging Station
11 plastic separators
20V 6A PSU with 5.5/2.5mm DC cable, 0.9m (2.95ft)
4 country specific power cables (Schuko/US/UK/AUS to IEC C5), 0.9m (2.95ft)
LINDY Manual |
PACKAGING CONTENT
|
| AC adapter included |
Yes |
| Quantity per pack |
1 pc(s) |
PACKAGING DATA
|
| Package weight |
1.72 kg |
| Cables included |
AC |
| Package depth |
95 mm |
| Package height |
156 mm |
| Package width |
269 mm |
| Package type |
Box |
| Included power plug types |
AU, EU, UK, US |
| Quantity per pack |
1 pc(s) |
PERFORMANCE
|
| USB 2.0 ports quantity |
8 |
| Fast charging |
Yes |
| Charger compatibility |
Smartphone, Tablet |
| Power source type |
AC |
| Charger type |
Indoor |
| Number of simultaneously connected devices (max) |
10 |
| Fast charging technology |
Quick Charge 3.0 |
| USB Type-C ports quantity |
2 |
TECHNICAL DETAILS
|
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), REACH, RoHS |
WEIGHT & DIMENSIONS
|
| Weight |
980 g |
| Height |
26 mm |
| Width |
238 mm |
| Depth |
118 mm |
