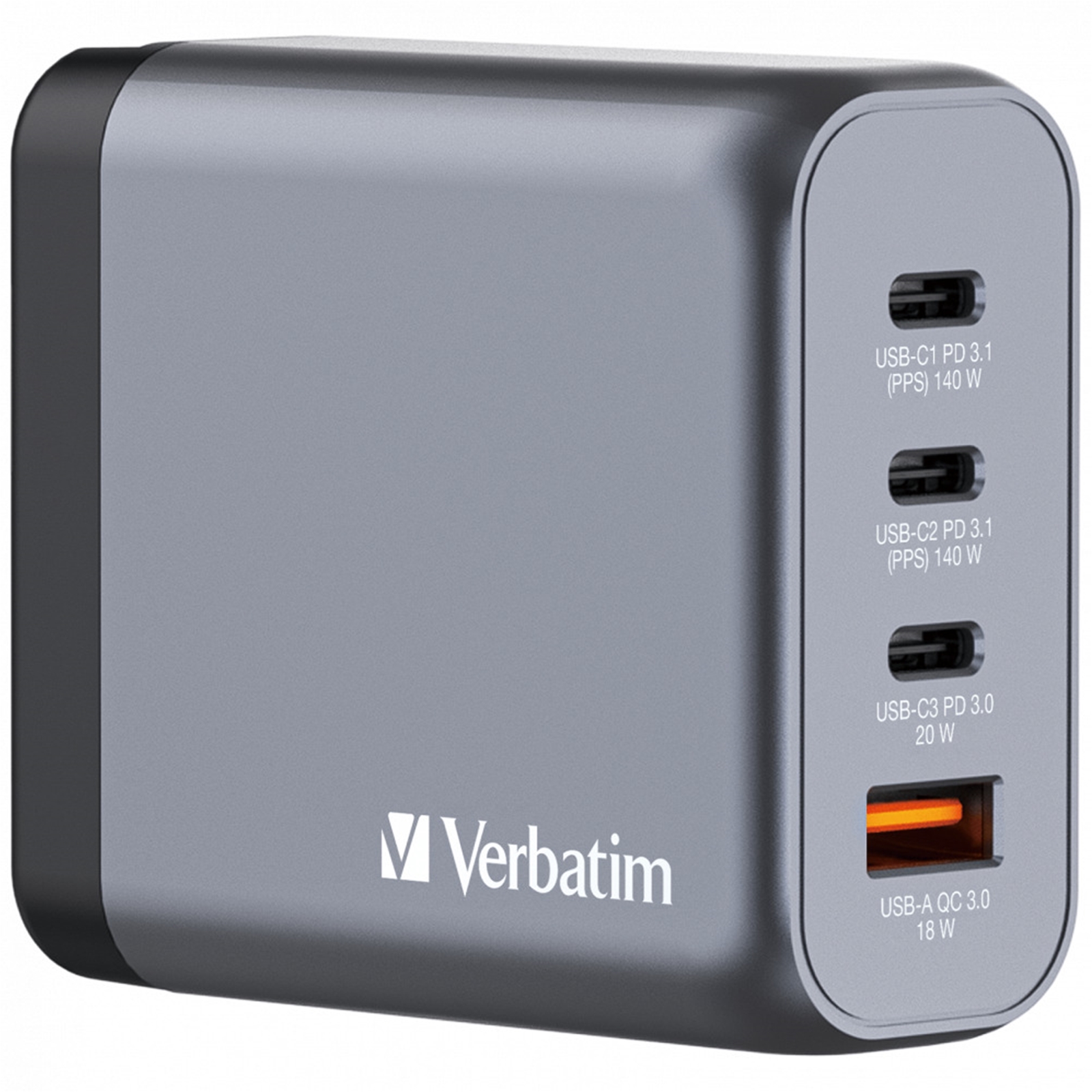

Verbatim140W 4-Port GaN Wall Charger
Product Details
Supports charging of up to 4 devices simultaneously with a maximum total output of 140W
Equipped with 2 x USB-C PD 3.1 up to 140W, 1 x USB-C PD 3.0 up to 20W, and 1 x USB-A QC 3.0 up to 18W
Integrated GaN technology provides efficient charging and generates less heat
Great travel companion thanks to foldable US prongs, replaceable EU and UK plugs and slim, compact design
Supports super-fast charging with USB Power Delivery 3.1 & 3.0, PPS, and Quick Charge 3.0
Programmable Power Supply (PPS) technology delivers the right amount of power needed for the ideal charge
Made with high-quality, flame-resistant materials and featuring four safety protection systems, including over-current protection, over-voltage protection, short circuit protection, and over-temperature protection
Plastic-free packaging
2-year limited warranty
140w 4-in-1 Charging
Verbatim's 140W GaN Wall Charger combines two USB-C PD 140W ports, one USB-C PD 20W port and one USB-A QC 3.0 port in a sleek, palm sized design. Ideal for the office, home or travelling to power your laptop, tablet, smartphone, gaming devices, and more. With its foldable US prongs and replaceable EU and UK plugs, it's the ultimate travel companion.
GaN Technology
Galliam Nitride (GaN) technology delivers high-powered, fast, efficient charging, and generates less heat. GaN chargers are smaller and lighter than traditional silicon-based chargers, making them ultra-portable and ideal for travel.
Safe and Reliable
The GaN charger is made with high-quality, flame-resistant materials and features four safety protection systems, including over-current protection, over-voltage protection, short circuit protection, and over-temperature protection to ensure your safety while charging.
Specifications
Input Voltage:
AC 100-240~ 50/60Hz 2.1A max.
Single port output:
USB-C1 PD 3.1 Output: 3.3-21V ?=5A, 5V = 3A, 9V = 3A, 12V = 3A, 15V = 3A, 20V = 5A, 28V = 5A (140W max.)
USB-C2 PD 3.1 Output: 3.3-21V = 5A, 5V = 3A, 9V = 3A, 12V = 3A, 15V = 3A, 20V = 5A, 28V = 5A (140W max.)
USB-C3 PD 3.0 Output: 5V = 3A, 9V = 2.22A, 12V = 1.67A (20W max.)
USB A QC 3.0 Output: 5V = 3A, 9V = 2A, 12V = 1.5A (18W max.)
Combined port output:
USB-C1+USB-C2 Output: 65W + 65W
USB-C1+USB-C3 Output: 100W + 20W
USB-C1+USB-A Output: 100W + 18W
USB-C2+USB-C3 Output: 100W + 20W
USB-C2+USB-A Output: 100W + 18W
USB-C3+USB-A Output: 5V = 3A
USB-C1+USB-C2+USB-C3 Output: 65W + 45W + 20W
USB-C1+USB-C2+USB-A Output: 65W + 45W + 18W
USB-C1+USB-C3+USB-A Output: 100W + 15W (USB-C3+USB-A)
USB-C2+USB-C3+USB-A Output: 100W + 20W (USB-C3+USB-A)
USB-C1+USB-C2+USB-C3+USB-A Output: 65W + 45W + 15W (USB-C3+USB-A)
Total Output: 140W max.
Safety protection systems:
Short circuit protection
Over-voltage protection
Over-current protection
Over-temperature protection
Material:
Plastic Housing: PC + ABS + Fireproof material
Dimensions (W x H x D):
76.5 x 67.7 x 31.3 mm
Weight:
270 grams
Pack Contents
GaN Charger
EU adapter
UK adapter
Quick Start Guide
Warning
INDOOR USE ONLY
Warranty:
2 Year Return To Base Warranty
Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our
Returns Policy for more information.
|
CERTIFICATION
|
| Compliance certificates |
REACH, RoHS |
DESIGN
|
| Plug and Play |
Yes |
| Product colour |
Black, Grey |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Gallium nitride (GaN) transistors |
Yes |
ENERGY MANAGEMENT
|
| Input voltage |
100 - 240 V |
| Input frequency |
50/60 Hz |
| Input current |
2.1 A |
| Maximum power |
140 W |
| Compatible power plug types |
EU, UK, US |
| Port 1 output current |
5 A |
| Port 2 output current |
5 A |
| Output current (12V) |
3 A |
| Output current (9V) |
3 A |
| Output current (5V) |
3 A |
| Minimum output voltage |
3.3 V |
| Maximum output voltage |
20 V |
| Port 3 output current |
3 A |
| Port 1 output power |
140 W |
| Port 2 output power |
140 W |
| Port 3 output power |
20 W |
| Port 4 output power |
18 W |
| Port 4 output current |
3 A |
| Output current (15V) |
3 A |
| Output current (20V) |
5 A |
LOGISTICS DATA
|
| Country of origin |
China |
| Master (outer) case height |
302 mm |
| Master (outer) case width |
280 mm |
| Master (outer) case gross weight |
8.6 kg |
| Master (outer) case length |
305 mm |
| Products per master (outer) case |
20 pc(s) |
| Shipping (inner) case width |
25.5 cm |
| Shipping (inner) case length |
28.5 cm |
| Shipping (inner) case height |
13.1 cm |
| Shipping (inner) case gross weight |
4.1 kg |
| Products per shipping (inner) case |
10 pc(s) |
| Customs product code (TARIC) |
85366990 |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-20 - 80 °C |
| Operating temperature (T-T) |
-10 - 40 °C |
PACKAGING CONTENT
|
| AC adapter included |
Yes |
| Quantity per pack |
1 pc(s) |
PACKAGING DATA
|
| Package weight |
390 g |
| Package depth |
110 mm |
| Package height |
131.5 mm |
| Package width |
47 mm |
| Package type |
Hanging box |
| Quantity per pack |
1 pc(s) |
PERFORMANCE
|
| Country of origin |
China |
| Fast charging |
Yes |
| Power protection features |
Over current, Over voltage, Overheating, Short circuit |
| Charger compatibility |
Universal |
| Power source type |
AC |
| Charger type |
Indoor |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB Power Delivery |
Yes |
| Fast charging technology |
Quick Charge 3.0 |
| USB Type-C ports quantity |
3 |
| USB Power Delivery up to |
140 W |
| Programmable power supply (PPS) |
Yes |
SUSTAINABILITY
|
| Sustainability compliance |
Yes |
TECHNICAL DETAILS
|
| Sustainability compliance |
Yes |
| Compliance certificates |
REACH, RoHS |
WEIGHT & DIMENSIONS
|
| Weight |
270 g |
| Height |
67.7 mm |
| Width |
31.3 mm |
| Depth |
76.5 mm |
