New Product. Checked OK.
The packaging is damaged and will have some tears and creases.
All Graded and Refurbished products (0-Stock) carry a 90-day Dead On Arrival Warranty (rest of existing warranty if supplied as an RMA replacement).
0-stock will be as original product description. Please be aware that these products are likely to be incomplete and missing drivers, cables, manuals, packaging etc. Chassis and other peripherals may be missing screw-packs, blanking plates, and may also have cosmetic damage in the form of scratches, small dents, damage to original outer carton or retail box etc.
The price of these items has been reduced to reflect this. Drivers and manuals can usually be downloaded from the manufacturers website.

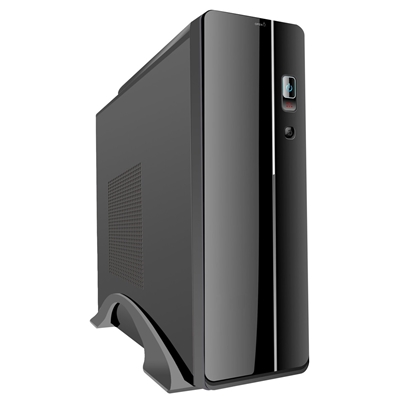

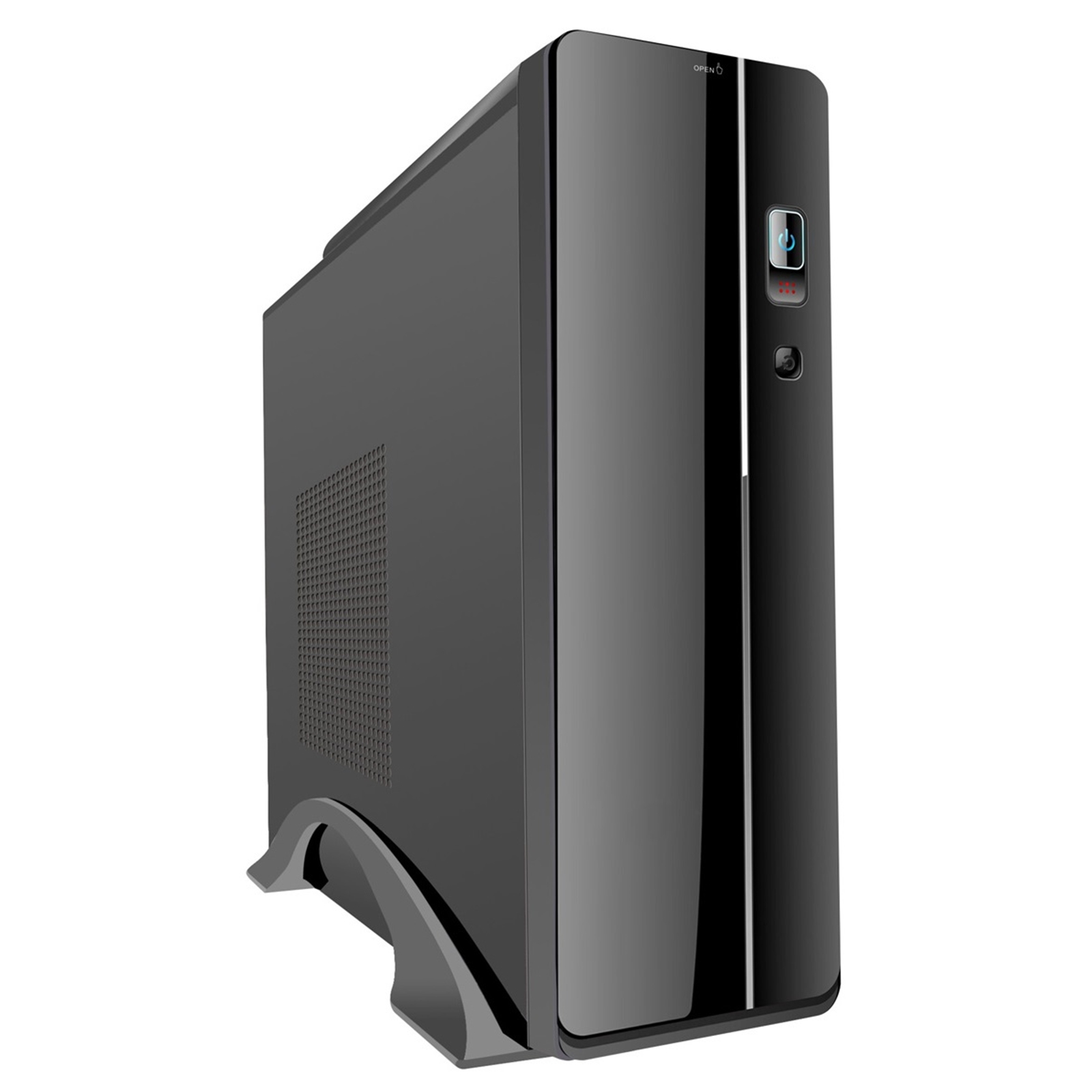

The CiT S003 Comes with a 3-in-1 Card-Reader built-in
- Built-in Card-Reader
- Comes with 1 x 8cm Top Cooling Fan
- Supports Micro ATX Power Supplies
- 4 x Half-Height Expansion Slots
PSU Specification
Rail: Max. DC Output
+3.3V: 16A
+5V: 16A
+12V: 14A
-12V: 0.3A
+5VSB: 2A
Connections:
20 + 4 Pin ATX: 1
+12V 4 Pin CPU: 1
4 Pin Molex: 2
SATA: 3
FDD: 1
Case Specification
Form Factor
Thin Client Micro ATX
Motherboard Support
Micro ATX
Mini-ITX
PSU Included
Yes
PSU Support
Micro ATX
PSU Location
Front
Body Material
0.5mm SECC Metal
Front Bezel Material
Plastic
Side Panel
Vented
Drive Bays
1 x 5.25" External
2 x 3.5" Internal
Expansion
Slots: 4 x Half-Height
Cooling
Front: None
Top: 1 x 8cm Fan
Rear: Vented
Side: Vented
Bottom: Vented
IO Ports
1 x USB 3.0
1 x USB 2.0
1 x HD Audio
1 x Microphone
SD/TF Card Reader Included (Built-in)
Max GPU Card Length
225mm
CPU Cooler Max Height
82mm
Front Bezel Colour
Black/Silver
Body Colour
Black
Product Dimensions ( W x H x D )
99 x 306 x 400mm
Packaging Dimensions ( W x H x D )
160 x 368 x 446mm
Warranty:
90 Day RTB Target Warranty
There are currently no data sheets available for this product.
