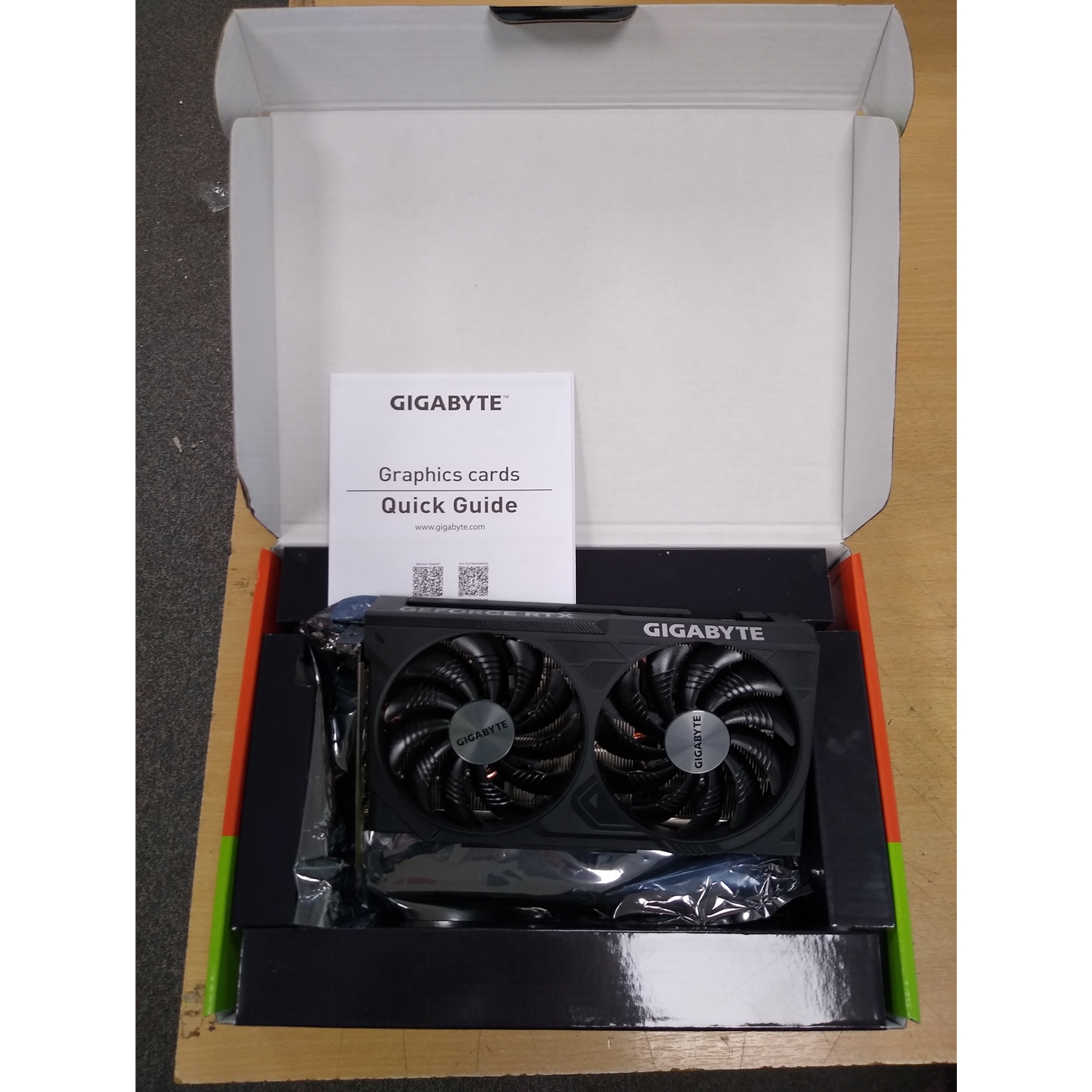

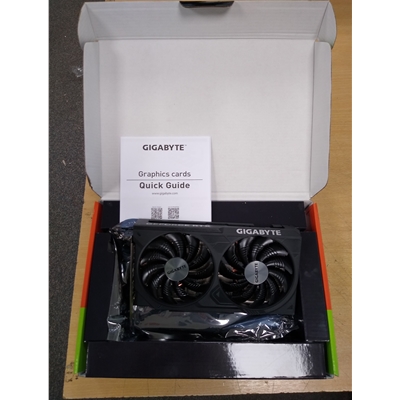

Item is in original box with anti static bag open. Item has been tested in full.
All Graded and Refurbished products (0-Stock) carry a 90-day Dead On Arrival Warranty (rest of existing warranty if supplied as an RMA replacement).
0-stock will be as original product description. Please be aware that these products are likely to be incomplete and missing drivers, cables, manuals, packaging etc. Chassis and other peripherals may be missing screw-packs, blanking plates, and may also have cosmetic damage in the form of scratches, small dents, damage to original outer carton or retail box etc.
The price of these items has been reduced to reflect this. Drivers and manuals can usually be downloaded from the manufacturers website.
b>- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4060 Ti (8GB)
- Integrated with 8GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- Protection back plate
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
Specifications
Graphics Processing
GeForce RTX™ 4060 Ti (8GB)
Core Clock
2550 MHz (Reference Card: 2535 MHz)
CUDA® Cores
4352
Memory Clock
18 Gbps
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=201 W=120 H=41 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
500W
Power Connectors
8 pin*1
Output
DisplayPort 1.4a*2
HDMI 2.1a*2
Accessories
Quick guide
Warranty:
All Graded and Refurbished products (0-Stock) carry a 90-day Dead On Arrival Warranty (rest of existing warranty if supplied as an RMA replacement).
|
DESIGN
|
| Form factor |
Full-Height/Half-Length (FH/HL) |
| Product colour |
Black |
| Number of fans |
2 fan(s) |
| Cooling type |
Active |
| Fan diameter |
9 cm |
| Cooling technology |
GIGABYTE WINDFORCE 2X |
ENERGY MANAGEMENT
|
| Minimum system power supply |
500 W |
| Supplementary power connectors |
1x 8-pin |
MEMORY
|
| Graphics card memory type |
GDDR6 |
| Data transfer rate |
18 Gbit/s |
| Memory bus |
128 bit |
| Number of pipelines |
3 |
| Discrete graphics card memory |
8 GB |
PACKAGING CONTENT
|
| User guide |
Yes |
PACKAGING DATA
|
| Package type |
Box |
| User guide |
Yes |
PERFORMANCE
|
| TV tuner integrated |
No |
| DirectX version |
12 Ultimate |
| OpenGL version |
4.6 |
| Dual Link DVI |
No |
| NVIDIA G-SYNC |
Yes |
PORTS & INTERFACES
|
| Interface type |
PCI Express 4.0 |
| HDMI ports quantity |
2 |
| HDMI version |
2.1a |
| DisplayPorts quantity |
2 |
| DisplayPort version |
1.4a |
PROCESSOR
|
| Graphics processor |
GeForce RTX 4060 Ti |
| Maximum resolution |
7680 x 4320 pixels |
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| CUDA |
Yes |
| CUDA cores |
4352 |
| Graphics processor family |
NVIDIA |
| Processor frequency (OC mode) |
2550 MHz |
SYSTEM REQUIREMENTS
|
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
WEIGHT & DIMENSIONS
|
| Height |
120 mm |
| Depth |
41 mm |
| Length |
201 mm |
