Target Components

Manufacturer Refurbished Product.
OEM Packaged.


All Graded and Refurbished products (0-Stock) carry a 90-day Dead On Arrival Warranty (rest of existing warranty if supplied as an RMA replacement).

0-stock will be as original product description. Please be aware that these products are likely to be incomplete and missing drivers, cables, manuals, packaging etc. Chassis and other peripherals may be missing screw-packs, blanking plates, and may also have cosmetic damage in the form of scratches, small dents, damage to original outer carton or retail box etc.

The price of these items has been reduced to reflect this. Drivers and manuals can usually be downloaded from the manufacturers website.


PRODUCT DETAILS

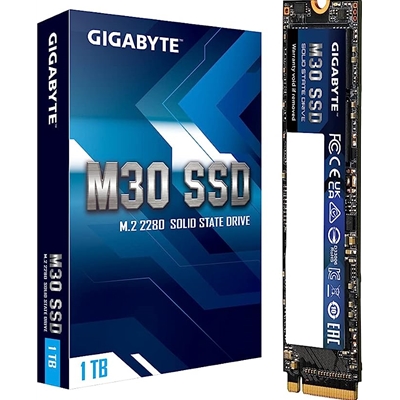

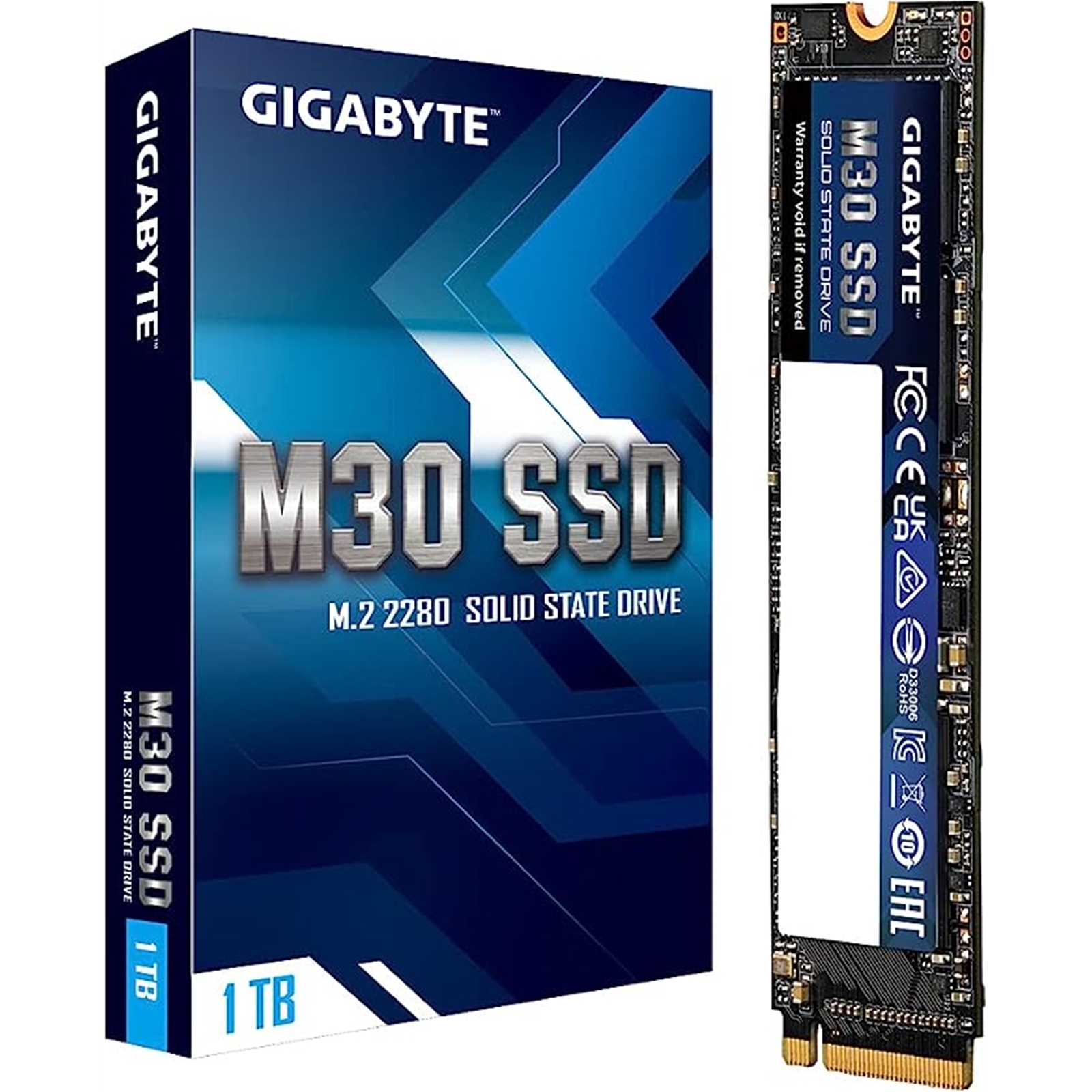

Xtreme Storage Performance
With the high-quality controller and flash, GIGABYTE M30 SSD can reach up to 3500 MB/sec sequential read, and up to 3000 MB/s sequential writes. Moreover, it comes with the DDR3L DRAM, SLC Cache, and advanced LDPC error correction to enhance the performance. It's an ideal choice for gamers, PC enthusiasts, and content creators.

Breaking Limitations
GIGABYTE M30 SSD delivers outstanding performance: up to 3500 MB/sec sequential read, and up to 3000 MB/s sequential write. Equipped with a robust combination of controller and 3D NAND, M30 is up to 6 times faster than SATA III Solid State Drives and reach the limit of PCIe Gen3x4.

Ultra Durable, 2 oz copper PCB Design
Under a high-stress workload, most SSD controllers can peak over 70°C. In this situation, the drives will start slowing down to avert itself from failing. The hotter your SSD runs, the quicker it wears out the flash inside of the drive. GIGABYTE M30 SSD applied with 2 oz copper PCB design, which helps dissipate heat and prevent throttling.

Why is keeping A SSD at lower tempertures so important?
Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher. With 2 oz coppetr PCB, GIGABYTE M30 SSD can operate at lower working temperatures to improve data storage reliability. Furthermore, SSDs can running at extreme performance longer.

Lower temperature, better performance
GIGABYTE M30 SSD not only offers incredible performance but also handles heavy workloads without overheating. Thanks to the improved efficiency thermal solution by using 2 oz copper PCB, GIGABYTE M30 SSD decrease 16% working temperatures compare with regular SSD without a heatsink.

External DDR3L DRAM Cache
GIGABYTE M30 SSD is equipped with high speed DDR3L DRAM cache and does not need to reserve over-provisioning space, thus improving the random Read/Write performance. This means the users can use the full capacity of the drive. Moreover, external DRAM can be a buffer between controller and NAND flash for sustained performance when capacity is occupied by more and more data.

SSD Tool Box
The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.

Specificaion

Interface
PCIe 3.0x4, NVMe 1.3

Form Factor
M.2 2280

Total Capacity
1TB

NAND
3D TLC NAND Flash

External DDR Cache
DDR3L 2Gb

Sequential Read speed
Up to 3500 MB/s

Sequential Write speed
Up to 3000 MB/s

Random Read IOPS
up to 308K

Random Write IOPS
up to 332K

Dimension
22 x 2.3 x 80 mm

Mean time between failure (MTBF)
2 million hours

Power Consumption (Active)
Average: R: 5.9W, W:5W

Power Consumption (Idle)
L0/L0s/L1: 900mw
L1.2 < 3mw

Temperature (Operating)
0°C to 70°C

Temperature (Storage)
-40°C to 85°C
