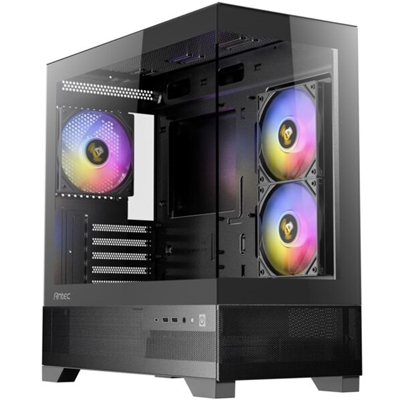

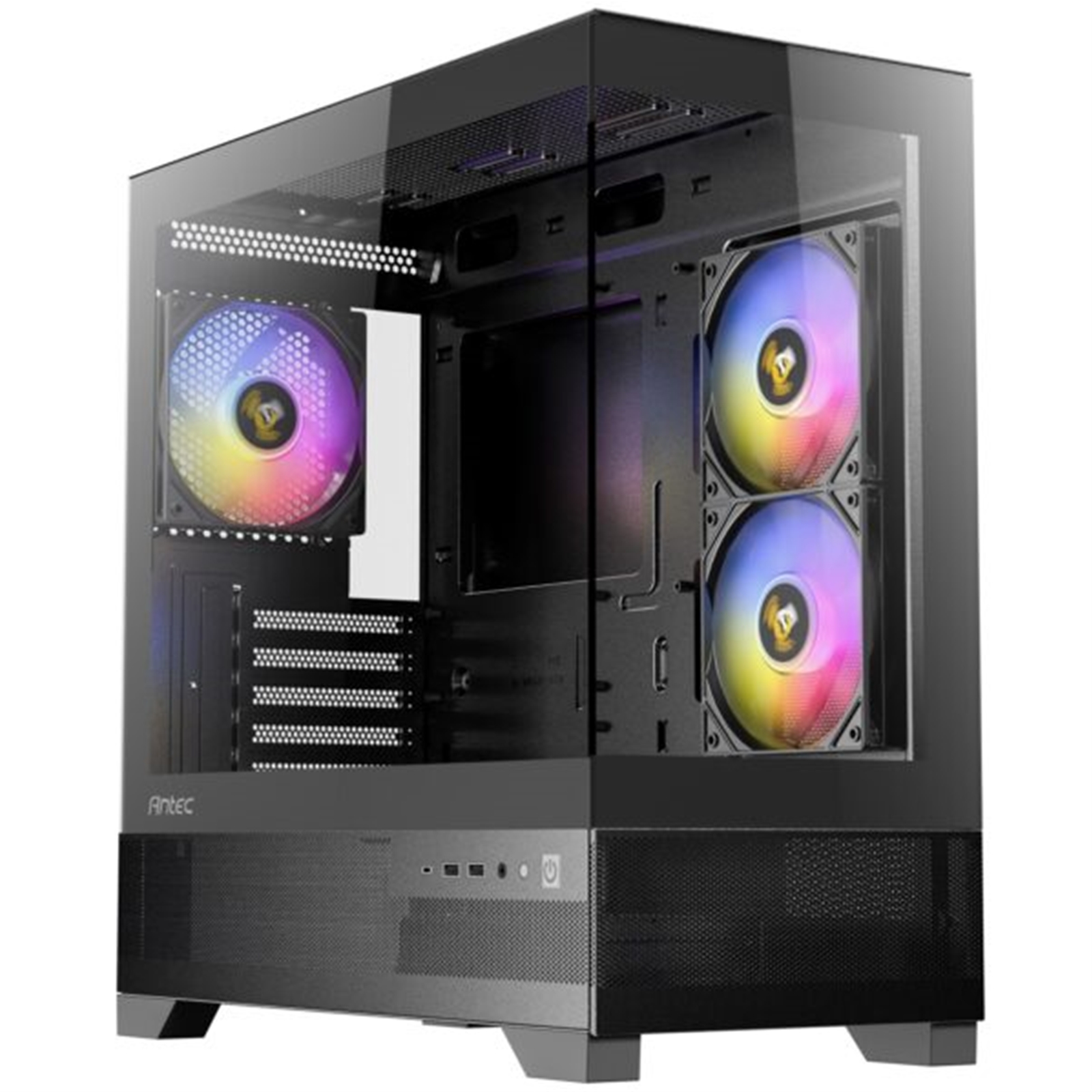

The Antec CX500M ARGB is a mid-tower gaming case designed to showcase your build with a panoramic 270° view. It features seamless steel-tempered glass on the left and front panels, providing an unobstructed look at your components. With bottom-up vertical airflow via mesh on the lower front, lower left, and right sides, it accelerates heat dissipation. Tool-free panels make assembly and disassembly easier, reducing the risk of glass breakage. The case comes pre-installed with three 120mm ARGB fans that can be daisy-chained for ARGB sync, letting you create your own personal style.

Specifications

Dimensions:
436 x 210 x 446mm (DWH)

Form Factor:
Mini Tower

Materials:
Steel + Glass

Motherboard Support:
Micro-ATX, ITX

Front Access & Controls:
Power, LED Control Button, USB 3.0 x 2, Type-C 3.2 Gen 2 x 1, Headphone/Mic Combo Jack

Side Panel:
4mm Tempered Glass

Drive Bays:
3.5" / 2.5": 2 / 1
2.5": 1

Expansion Slots:
5

Fan Support:
Top: 3 x 120mm / 2 x 140mm
Side: 2 x 120mm
Power Supply Shroud: 3 x 120mm
Rear: 120mm

Included Fans:
2 x 120mm ARGB reverse fans (Right side)
1 x 120mm ARGB fan (Rear)

Radiator Support:
Top: 120 / 140 / 240 / 280 / 360mm

Clearance:
Max GPU Length: =415mm
Max CPU Cooler Height: =165mm
Max PSU Length (Including cables):
=210mm (With HDD)
=270mm (Without HDD)

Miscellaneous:
Dust Filters: Top / Bottom
Net Weight: 6.34 Kg
Gross Weight: 8.2 Kg
Warranty: 1 Year

Cooling & Cable Management:
This case is designed to support powerful air cooling with up to 9 fans simultaneously. It also provides ample space for cable management, ensuring your PC build remains clean and organized.
