Target Components Ltd

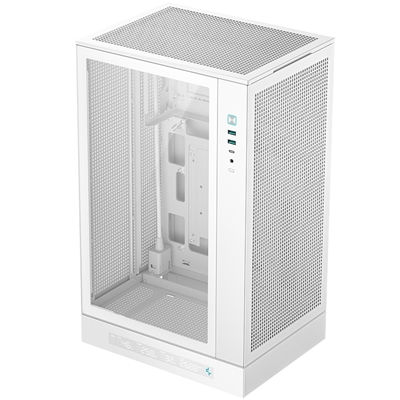

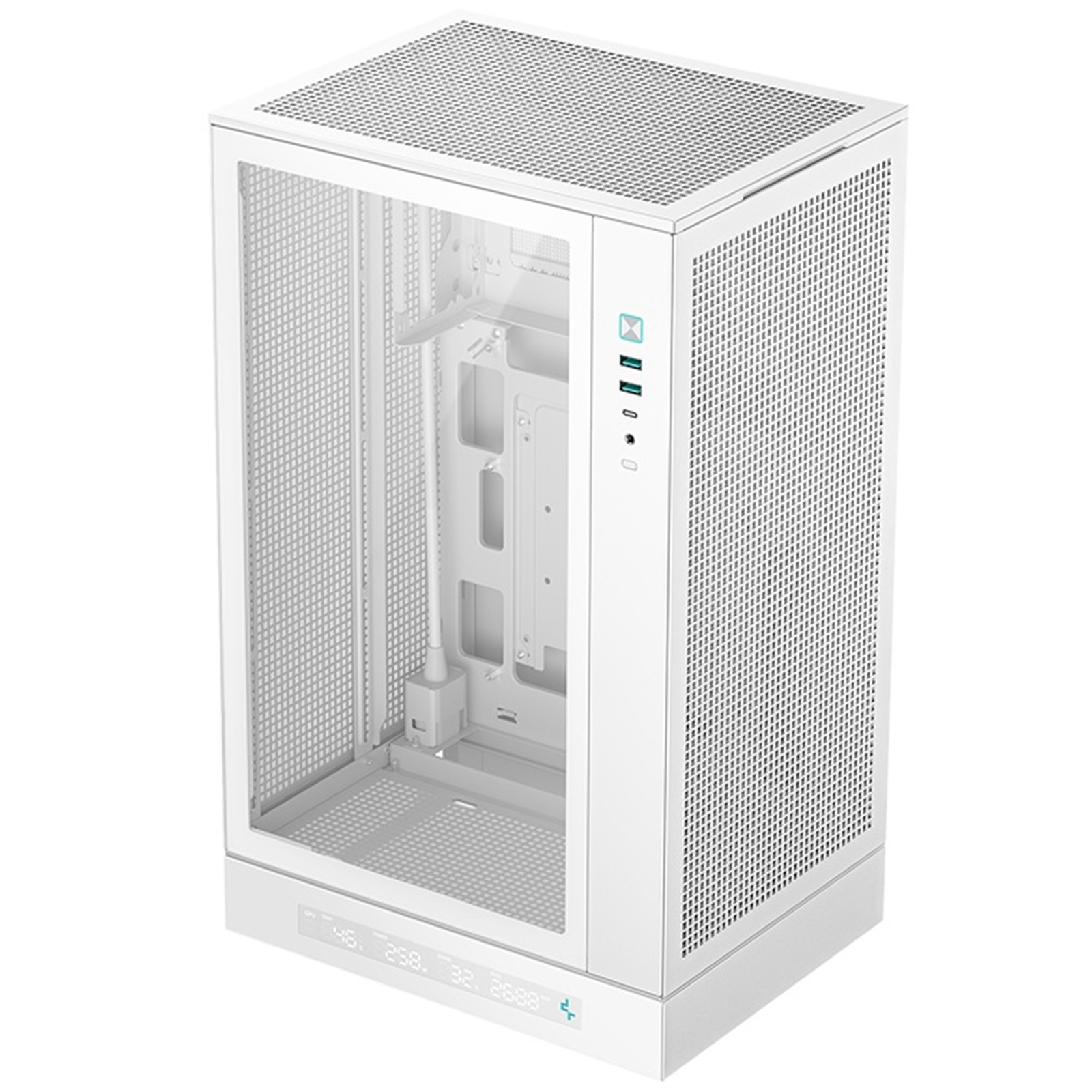

The DeepCool CH270 Digital White Micro ATX Case is a sleek and modern mini-tower case designed to accommodate up to Micro-ATX motherboards. It features a tempered glass side panel, providing a clear view of your internal components, and offers uncompromised ventilation with support for multiple fan and radiator configurations. This case is ideal for users looking to build a compact yet powerful system with a stylish and functional design.

Specifications
Model Number:
R-CH270-WHNDM0-G-1

Case Type:
Mini-Tower

Motherboard Support:
Mini-ITX, Micro-ATX

Dimensions:
296mm (L) x 225mm (W) x 486mm (H)

Net Weight:
5.8 kg

Materials:
ABS, SPCC, Tempered Glass

Front I/O Ports:
2 x USB 3.0
1 x USB Type-C (Gen 2)
1 x HD Audio/Mic

Drive Bays:
1 x 3.5" Drive Bay
1 x 2.5" Drive Bay

Expansion Slots:
4

Pre-Installed Fans:
None

Fan Support:
Top: 2 x 120mm
Side: 3 x 120mm / 2 x 140mm
Bottom: 1 x 120mm

Radiator Support:
Side: 120mm / 240mm / 360mm
Bottom: 120mm

CPU Cooler Height Limit:
174mm

GPU Size Limit:
388mm (with no top fans) / 413mm (with no top fans)

Power Supply Type:
ATX PS2 (maximum length: 150mm)

Warranty:
1 Year

This case is designed to provide excellent airflow and cooling options, making it a great choice for high-performance builds.

Manufacturer's Website:

uk.deepcool.com

Warranty:

1 Year Return To Base Warranty

COOLING
Side fans diameters supported	120,240 mm
Top fans diameters supported	120 mm
Bottom fans diameters supported	120 mm
Number of side fans supported (max)	3
Number of top fans supported (max)	2
Number of bottom fans supported (max)	1
Bottom radiator fan sizes supported	120 mm
Side radiator fan sizes supported	120,240,360 mm
DESIGN
Type	PC
Form factor	Mini Tower
Material	Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
Product colour	White
Supported motherboard form factors	micro ATX, Mini-ITX
Number of 5.25" bays	0
Number of 3.5" bays	1
Maximum CPU cooler height	17.4 cm
Maximum graphics card length	41.3 cm
Number of expansion slots	4
Maximum PSU length	15 cm
Number of 2.5" bays	1
PORTS & INTERFACES
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	0
POWER SUPPLY
Power supply included	No
Supported power supply form factors	ATX
STORAGE
Supported HDD sizes	2.5,3.5"
WEIGHT & DIMENSIONS
Weight	5.8 kg
Height	486 mm
Width	225 mm
Depth	296 mm
