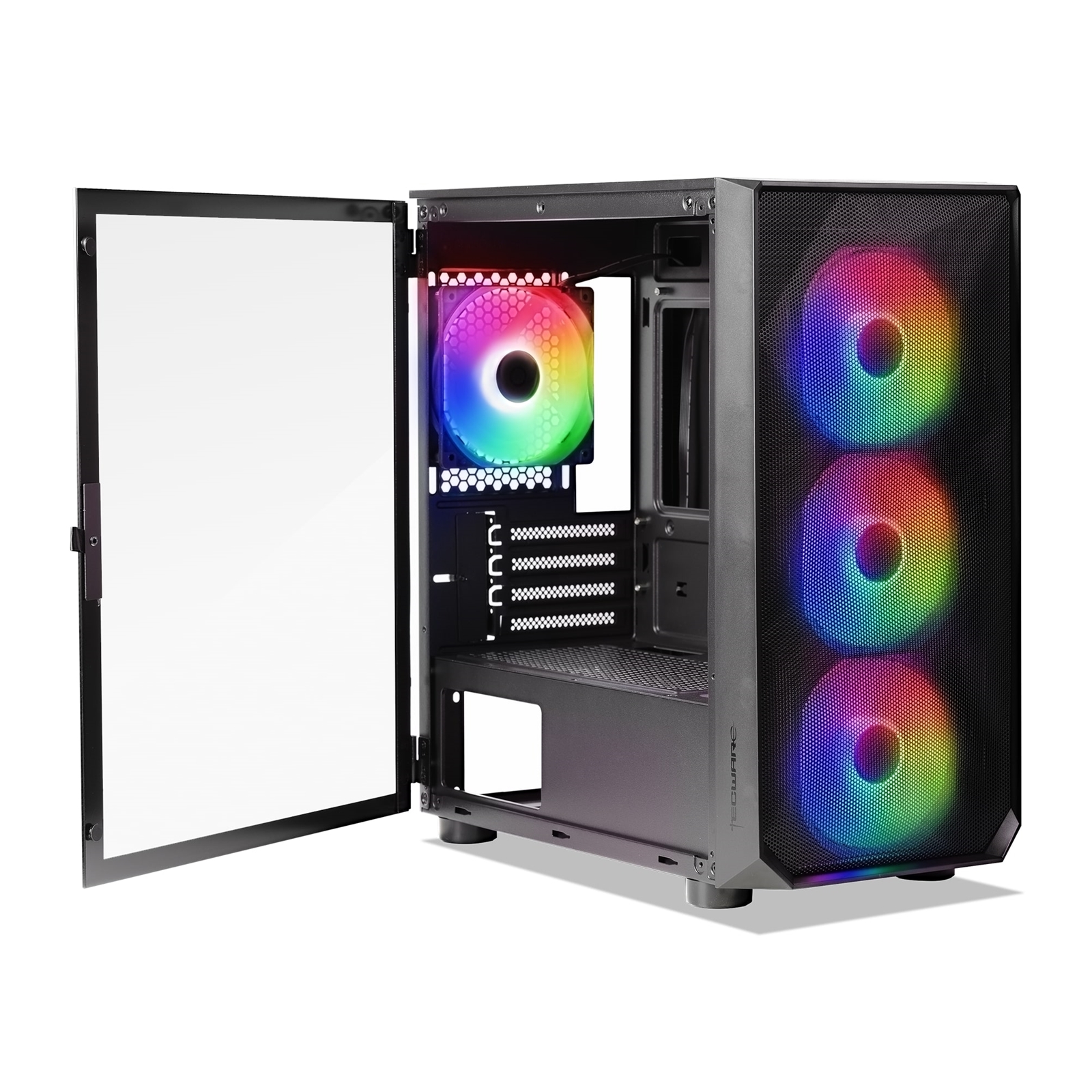

Presenting the Tecware Forge M Omni (TWCA-FORGEM-BKOL) — a sleek and secure micro-ATX chassis ideal for gamers, builders, and professionals alike. It brings together a high-airflow mesh design, tempered glass showcase, and key-lockable side panel for both aesthetics and peace of mind. Pre-installed fans ensure optimal cooling straight out of the box, with additional expansion support for future upgrades.
Physical & Structural
Model: TWCA-FORGEM-BKOL (Forge M Omni, key-lockable)
Form Factor: MicroATX & Mini-ITX compatible
Dimensions: Approximately 379 x 205 x 429 mm (L x W x H)
Weight: Around 4.9 kg
Construction Materials: Polyhedral mesh front for airflow, tempered glass side panel (hinged and key lockable), top magnetic filter, bottom PSU filter, and 22 mm cable management space
Cooling & Fans
Included fans: 4 x 120 mm black fans (3 at the front intake, 1 at the rear exhaust)
Fan capacity: Supports up to 6 fans total (front, top, rear)
Airflow design: Full mesh front and multiple vents ensure high air intake and efficient thermal performance
Motherboard & Internal Clearance
Motherboard support: Micro ATX and Mini ITX
GPU clearance: Up to approximately 315 mm in length
CPU cooler clearance: Up to approximately 160 mm
PSU compatibility: Supports PSUs up to ~180 mm length (with HDD cage)
Drive Bays & Expansion
Drive bay configuration:
1 x 3.5 internal
1 x 3.5/2.5 removable cage
2 x 2.5 (mounted)
Expansion slots: 7 x PCIe slots
Front I/O
Ports:
2 x USB 3.0 SuperSpeed ports
HD Audio (headphone/microphone combo)
Radiator & Cooling Support
Radiator support:
Front: 120 mm / 240 mm
Rear: 120 mm
Top: 120 mm / 240 mm (if fans not installed)
Security & Design Features
Key-lockable tempered glass side panel: Enhances physical security while granting easy access via hinge mechanism
Maintenance features: Magnetic top dust filter and bottom PSU filter for easy cleaning
Cable management: 22 mm routing space for clean internal layout
Model MPN
TWCA-FORGEM-BKOL (Forge M Omni, key-lockable)
Motherboard Support
Micro ATX, Mini ITX
GPU Clearance
~315 mm
CPU Cooler Height
Up to ~160 mm
Drive Bays
1 x 3.5
1 x 3.5/2.5
2 x 2.5
Included Fans
4 x 120 mm (3 front, 1 rear)
Max Fans Supported
Up to 6 fans
Radiator Support
Front: 120/240 mm; Top: 120/240 mm; Rear: 120 mm
I/O Ports
2 x USB 3.0, HD Audio
Security Feature
Hinged tempered glass with key lock
Filters
Magnetic top + bottom PSU filters
Cable Management
22 mm space
Dimensions
~379 x 205 x 429 mm
Warranty:
3 Year Return To Base Warranty
There are currently no data sheets available for this product.
