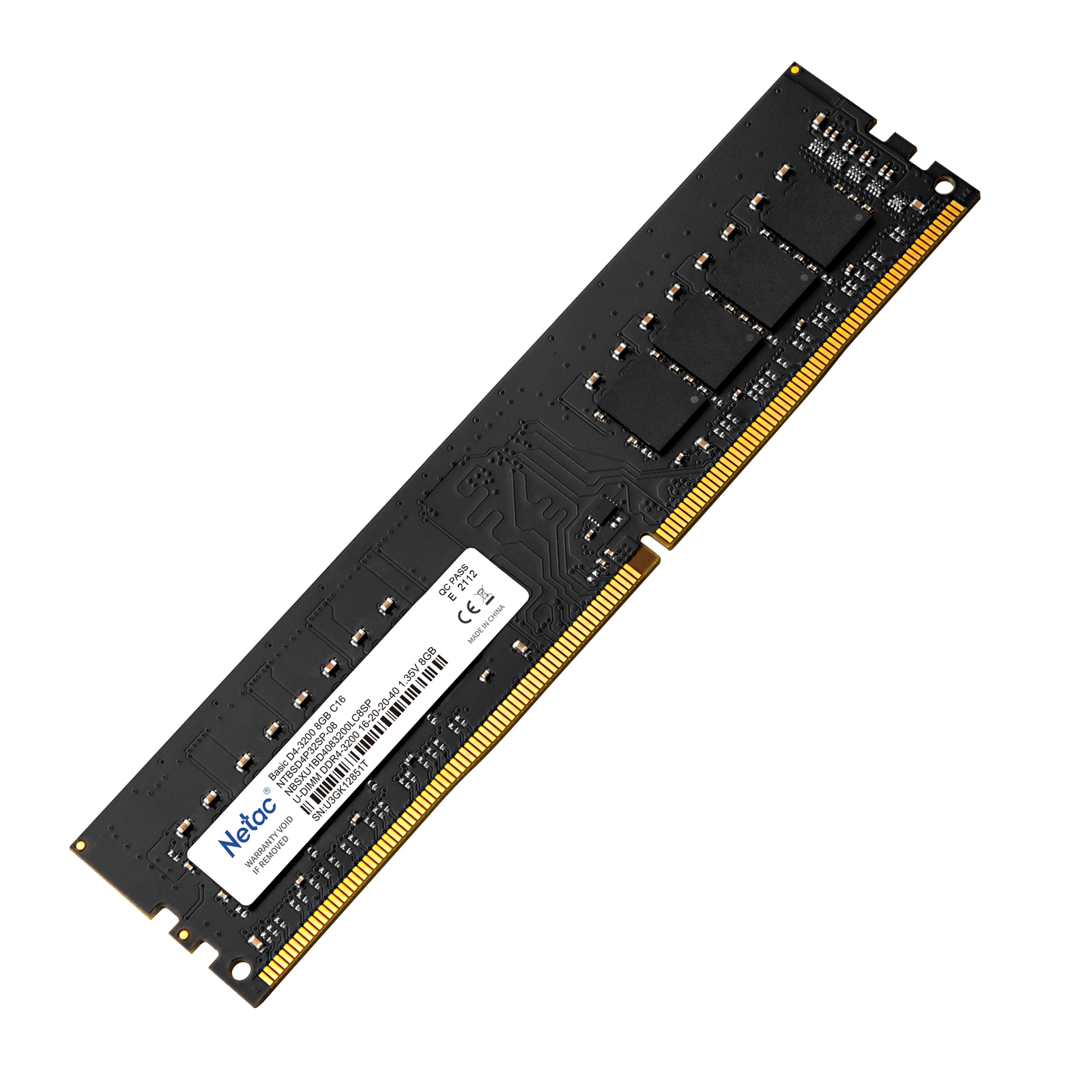

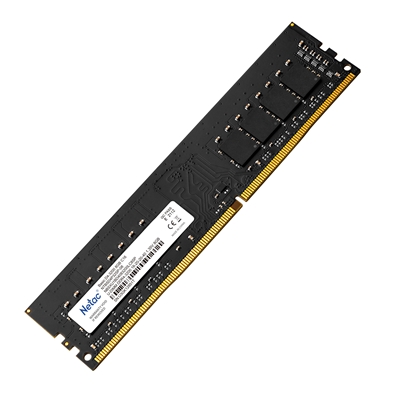

Netac 8GB No Heatsink (1 x 8GB) DDR4 3200MHz DIMM System Memory
NTBSD4P32SP-08 is a 1G x 64-bit (1R8) or 512M x 64-bit (2R8) SDRAM (Synchronous DRAM), memory module based on eight 1G x 8-bit or sixteen 512M x 8 FBGA components per module. The SPD is programmed to latency timing of 16-20-20 at 1.35V. support XMP, Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

Memory Capacity
8GB (1 x 8GB)

Memory Type
DDR4

Module Type
DIMM

Memory Speed
DDR4-3200MHz

Pin Configuration
288-pin

Registered/Unbuffered
Unbuffered

Error Correction
Non-ECC

CL-tRCD-tRP-tRAS
16-20-20-40

Heat Sink
/

Working Voltage
1.35v

Manufacturer's Website:

www.netac.com

Warranty:

NETEC Lifetime Warranty: Return to Base

FEATURES
Internal memory type	DDR4
ECC	No
Lead plating	Gold
CAS latency	16
Memory clock speed	3200 MHz
Backlight	N
Memory voltage	1.35 V
SPD profile	Yes
Memory form factor	288-pin DIMM
Memory channels	Single-channel
Component for	PC/Server
Internal memory	8 GB
Memory layout (modules x size)	1 x 8 GB
Intel Extreme Memory Profile (XMP)	Yes
Programming power voltage (VPP)	2.5 V
Buffered memory type	Unregistered (unbuffered)
OPERATIONAL CONDITIONS
Storage temperature (T-T)	-55 - 100 °C
Operating temperature (T-T)	0 - 85 °C
OTHER FEATURES
Capacity	8 GB
SUSTAINABILITY
Sustainability certificates	RoHS
Doesn't contain	Halogen
TECHNICAL DETAILS
Sustainability certificates	RoHS
Doesn't contain	Halogen
Compliance certificates	RoHS
WEIGHT & DIMENSIONS
Height	31.2 mm
Width	133.3 mm
