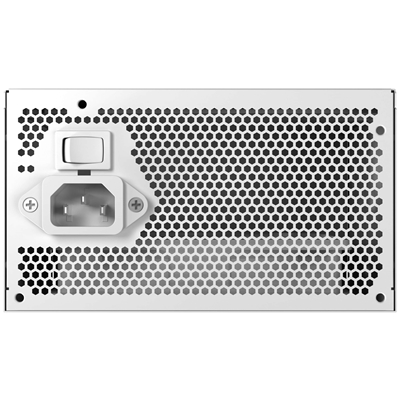

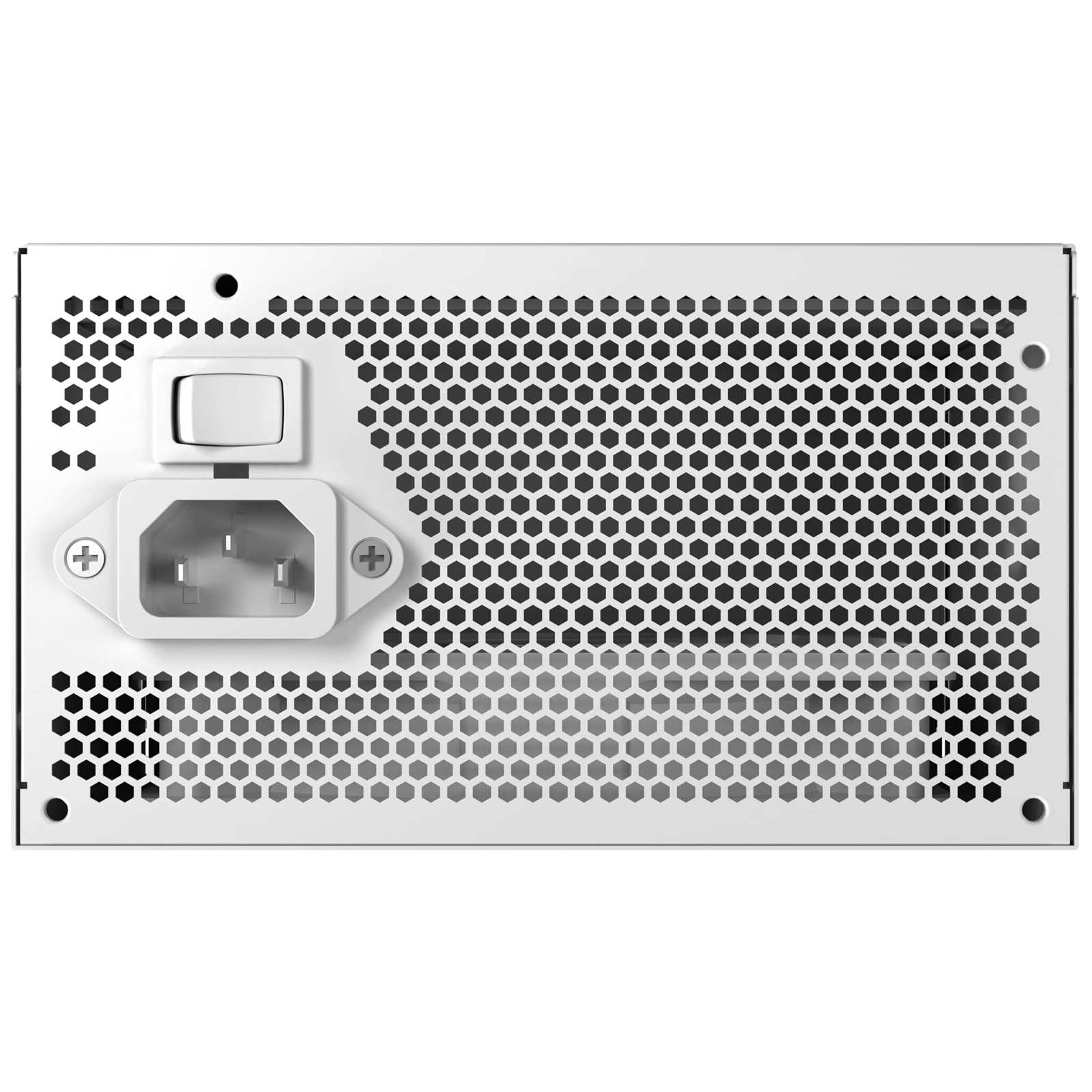

Antec CSK DC 750W, White


Antec's new generation CSK DC to DC power supply is crafted for quality, efficiency, and performance. Featuring DC-to-DC architecture, 80 PLUS® BRONZE certification, and quiet 120mm fans, the brand-new CSK750 DC to DC includes Antec's solid 5-year warranty. The CircuitShield suite of industrial-grade protections ensure that the power delivered to your system is safe and reliable in any environment.

PCIE 5.1 READY
The new CSK750 DC to DC meets high standards for reliability and power efficiency, ensuring the utmost level of quality and performance. The included PCIe 5.1 / 12V-2x6 GPU cable enables seamless compatibility with the latest graphics cards.

80 Plus Bronze Certified
Delivering up to 88% efficiency, CSK750 DC to DC utilizes active PFC and gives you a cooler and quieter system, all powered by Continuous Power

5-Year Warranty
Antec commits a 5-year warranty and offers our quality tech support and customer service.

120mm Silent Fan
The whisper-quiet 120mm fan provides high airflow with the durability and longevity that is a Antec signature.

Thermal Manager
Thermal Manager, an advanced low voltage fan control for optimal heat & noise management, allows your PSU to stay at the optimal temperature

Compact Size
Compared to large power supplies on the market, it is smaller in size and can be used with a wider range of computer cases.


Specifications

Type ATX 12V 2.52
Dimension 140(L)*150(W)*86(H)
Modular Non-Modular
Warranty 5 years
Input Voltage 100V-240V
Input Current 12A Max
Input Frequency Range 50Hz-60Hz
PFC Active PFC
Power Good Signal 100-500ms
Protection OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Output Capacity 750W
Operation Temperature 0~40°C
Regulatory cTUVus/TUV/CB/RCM/CE/FCC/BSMI/KC
/UKCA/ICES/BIS
Fan 120mm Silent Fan
Certifications 80 Plus Bronze
Connector 1 x 24(20+4)pin MB
1 x 16(12+4)pin PCIE 5.1 / 12V-2x6 / 300W
2 x 8(4+4)pin CPU
4 x 8(6+2)pin PCI-E
6 x SATA
3 x Molex
Unit Box Dimensions 255mm(L)*195mm(W)*100mm(H)
Shipping Box Dimensions 545mm(L)*425mm(W)*230mm(H)
Net Weight 1.80KG
Gross Weight 2.00KG
