More Cameras. More Clarity. More Surveillance. Capture it in Purple

- Engineered specifically for surveillance security systems.
- Supports up to 180 TB/yr workload rate*.
- Tuned for write-intensive, low bit-rate, high stream-count applications typical to most surveillance applications.
- Prioritized write-operations for maximized surveillance performance.
- TLER & ATA streaming support.
- Support for more than eight bays**.
- Tarnish-resistant components**.

*Workload Rate is defined as the amount of user data transferred to or from the hard drive. Workload Rate is annualized (TB transferred ? (8760 / recorded power-on hours)). Workload Rate will vary depending on your hardware and software components and configurations.
**For capacities 4TB and higher.

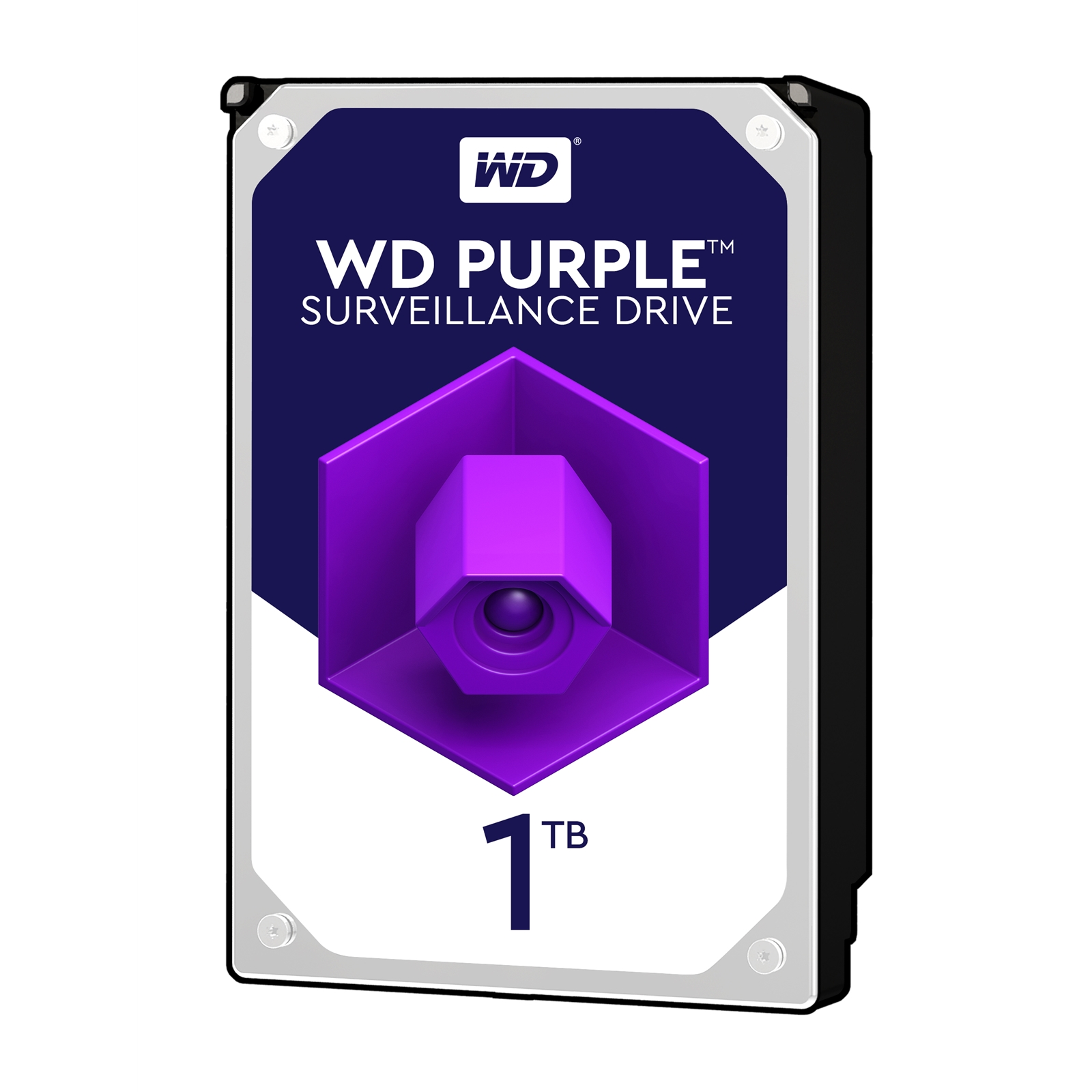

Model
Western Digital Purple
WD10PURZ

Capacity
1TB

Interface
SATA III

Cache
64MB

Rotational Speed
5400RPM

Data Transfer
SATA III: 6.0 Gbit/s

Physical Drive Size
3.5"

Packaging
OEM anti-static bag

Manufacturer's Website:

www.wdc.com

Warranty:

WD / Western Digital 3 Year Warranty

Warranty Length: 3 years

Warranty Type: Return To Base*

Warranty Coverage: Manufacturer fault

Warranty Instructions: For faulty products within 1 year of purchase, please raise a Target Return. *Any warranty claim after year 1, please contact WD directly.

Warranty Contact: WD Returns

ENERGY MANAGEMENT
Operating voltage	5 / 12 V
FEATURES
HDD capacity	1000 GB
Interface	Serial ATA III
Type	HDD
HDD speed	5400 RPM
HDD size	3.5"
Start/stop cycles	300000
Component for	Surveillance system
HDD interface transfer rate	6 Gbit/s
HDD sustained transfer rate	210 MiB/s
Storage drive buffer size	64 MB
OPERATIONAL CONDITIONS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 65 °C
Operating shock	30 G
Non-operating shock	250 G
PACKAGING CONTENT
Storage drive adapter included	N
PACKAGING DATA
Storage drive adapter included	N
SUSTAINABILITY
Sustainability certificates	RoHS
TECHNICAL DETAILS
Sustainability certificates	RoHS
WEIGHT & DIMENSIONS
Weight	650 g
Height	26.1 mm
Width	101.6 mm
Depth	147 mm
