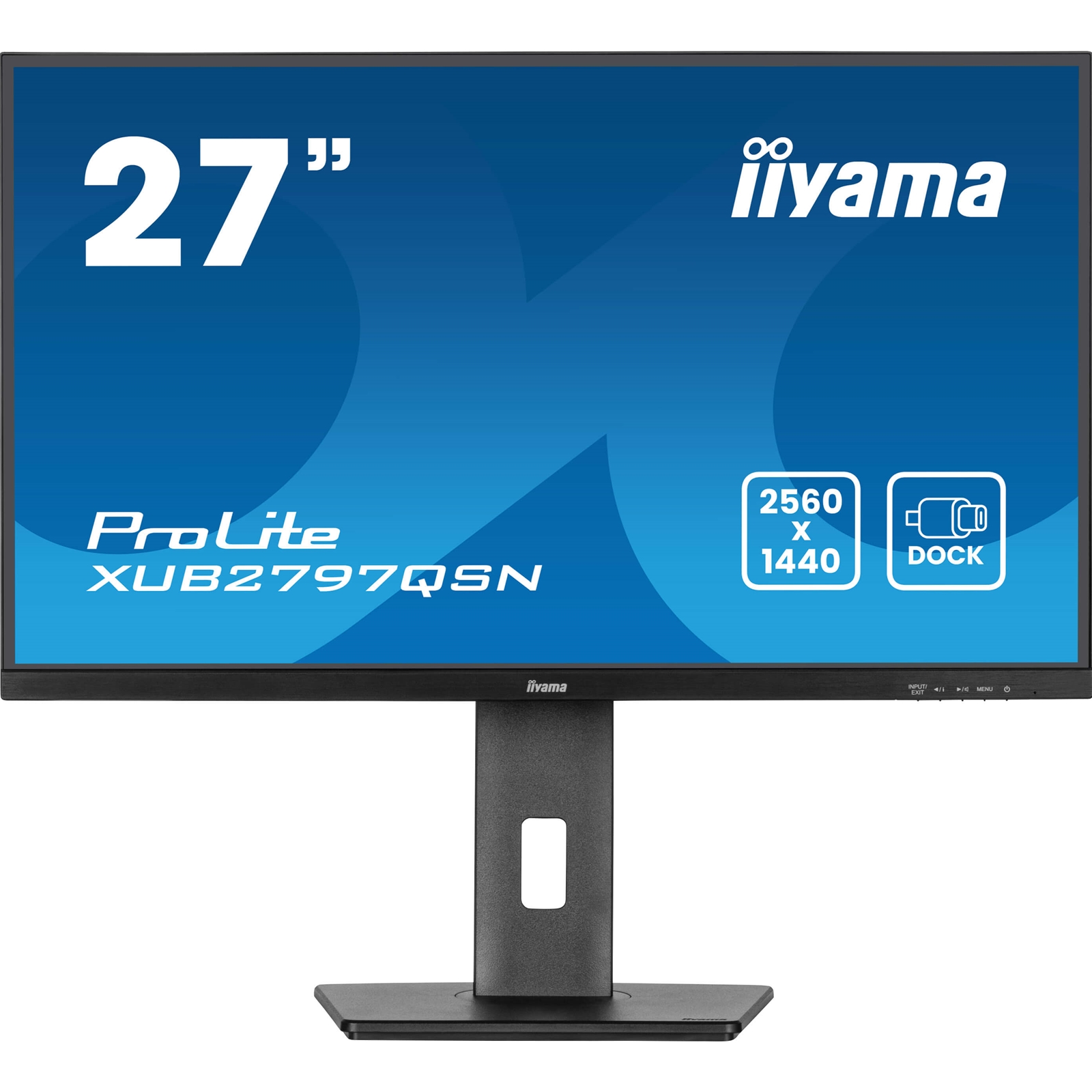

iiyama ProLite XUB2797QSN-B2
Equipped with a USB-C dock connector, the XUB2797QSN allows you to simplify your workspace by using a single cable to both send signal (audio, video and touch) from your notebook to your monitor whilst providing power and charge to the notebook. Additionally, if your monitor is connected to the Internet with a LAN cable, your notebook will automatically be connected to the network as well. Thanks to a DisplayPort output you can easily extend your desktop by creating a double-monitor set-up. The IPS panel assures rich and accurate colours with wide viewing angles. QHD resolution, high contrast and brightness values mean the monitor provides excellent performance for photographic and web design. The ergonomic stand offers a height adjustment of 150mm and with the tilt and swivel mechanisms you can easily turn the monitor into portrait mode for more comfort while working on large data sheets.
USB-C Dock
The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
*Functions vary depending on your laptop USB-C support.
IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
QHD
With true QHD 2560 x 1440p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen, i.e. over 76% more in comparison to a 1920 x 1080 monitor.
Speakers
This LED monitor is equipped with two high quality stereo speakers.
Specifications
DISPLAY CHARACTERISTICS
Design
3-side borderless
Diagonal
27", 68.5cm
Panel
IPS Panel Technology LED, matte finish
Native resolution 2
560 x 1440 @100Hz (3.7 megapixel QHD)
Aspect ratio
16:9
Panel brightness
300 cd/m²
Static contrast
1300:1
Advanced contrast
80M:1
Response time (MPRT)
1ms
Viewing zone
horizontal/vertical: 178 degrees/178 degrees, right/left: 89 degrees/89 degrees, up/down: 89 degrees/89 degrees
Colour support
16.7mln (sRGB: 99%; NTSC: 72%)
Horizontal Sync
30 - 151kHz
Viewable area
W x H 596.7 x 335.7mm, 23.5 x 13.2"
Pixel pitch
0.233mm
Colour
matte, black (matte, black)
INTERFACES / CONNECTORS / CONTROLS
Signal input
HDMI x1 (v.2.0)
DisplayPort x1 (v.1.4)
USB-C x1 (PD 65W)
Signal output
DisplayPort x1 (Daisy Chain MST max. ?2560? x ?1440?)
USB HUB x4 (3x v.3.2 Gen 1 (5Gbps, 4.5W) 1x Type C (5Gbps, 15W))
USB-C DOCK x1 (Power delivery 65W, LAN, DP out, USB v.3.2 (Gen 1, 5Gbit))
HDCP
yes
Headphone connector
yes
RJ45 (LAN)
x1
FEATURES
Blue light reducer
yes
Flicker free
yes
Adaptive Sync support
yes
Extra
i-Style colour
OSD languages
EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL
Control buttons
Power, Menu, Adjustment/Volume, Adjustment/Shortcut Menu, Input/Exit
User controls
picture adjust (brightness, contrast, Eco, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, blue light reducer, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellanous 1 (sharp and soft, video mode adjust, opening logo, RGB range), miscellaneous 2 (USB BC, MST, USB, LED, display information, MAC address), input select, audio settings (volume, mute)
Speakers
2 x 2W
Convenience Kensington-lock prepared, DDC2B
MECHANICAL
Display position adjustments
height, swivel, tilt, pivot (rotation both sides)
Height adjustment
150mm
Rotation (PIVOT function)
90 degrees
Swivel stand
120 degrees; 60 degrees left; 60 degrees right
Tilt angle
23 degrees up; 5 degrees down
VESA mounting
100 x 100mm
Cable management system
yes
ACCESSORIES INCLUDED
Cables
power, HDMI, DP, USB-C
Other
quick start guide, safety guide
POWER MANAGEMENT
Power supply unit
internal
Power supply
AC 100 - 240V, 50/60Hz
Power usage
26W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations
TCO Certified, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369)
E
EPEAT
Silver
EPEAT is a comprehensive environmental rating that helps identify greener computers and other electronic equipment. The Silver certification means the monitor meets all required criteria plus at least 50% of the optional requirements. EPEAT Silver is valid in countries where iiyama registers the product. Please visit www.epeat.net for the registration status in your country.
REACH SVHC
above 0.1%: Lead
Warranty
5 years (for details and eligible countries please check the Warranty section of our website)
DIMENSIONS / WEIGHT
Product dimensions W x H x D 613.5 x 400.5 (550.5) x 209.5mm
Box dimensions W x H x D 679 x 427 x 130mm
Weight (without box) 6.1kg
Weight (with box) 8.7kg
