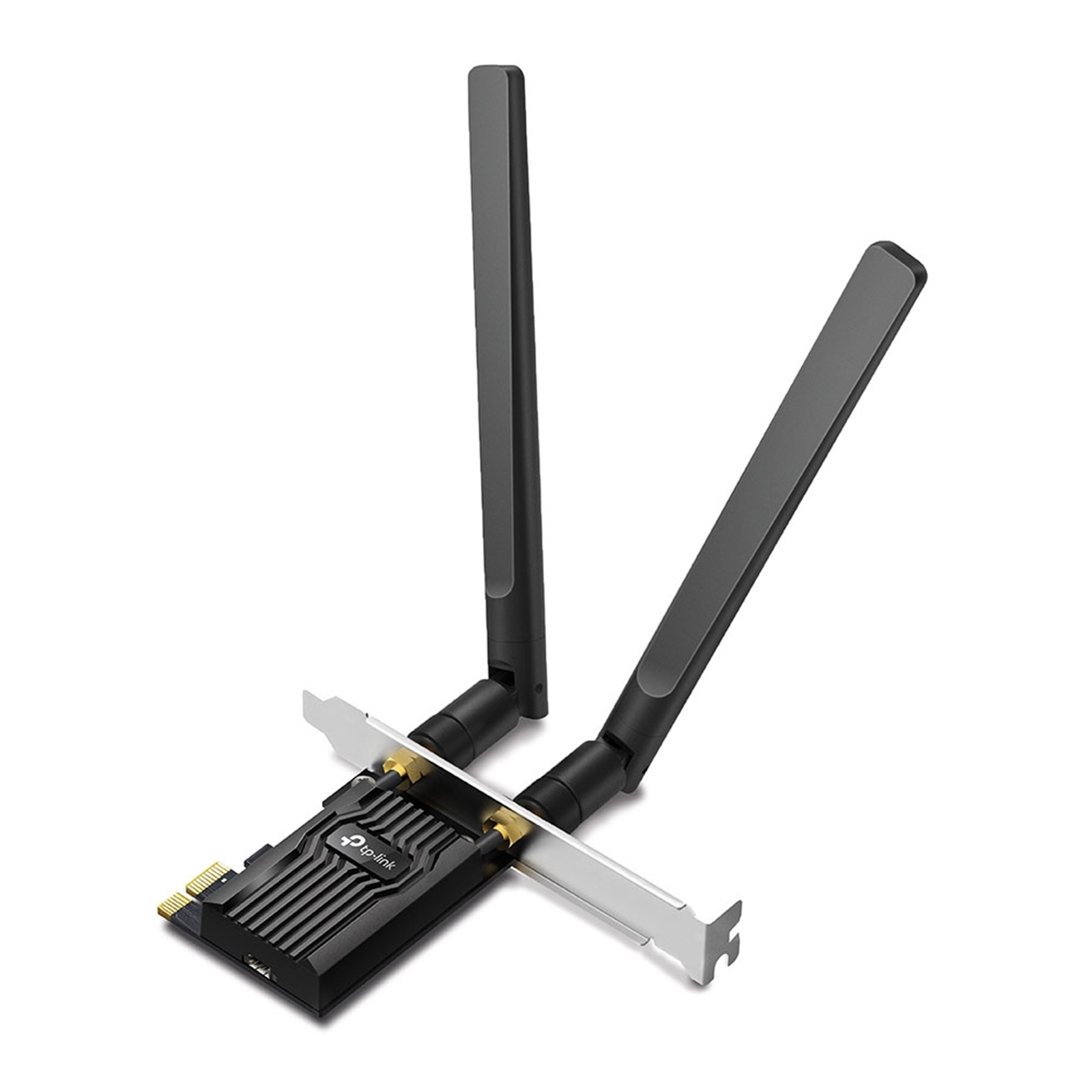

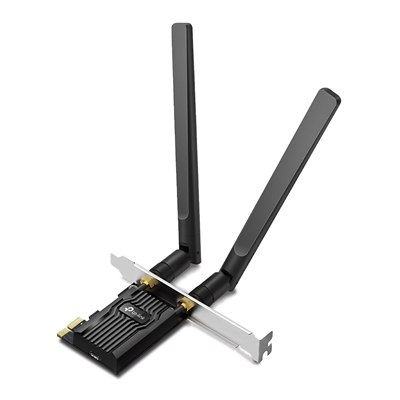

Boost your internet speed and connectivity with the TP-Link Archer TX20E AX1800 Dual Band Wi-Fi 6 Bluetooth 5.2 PCI Express Adapter. Experience lightning-fast wireless performance and seamless connectivity for your desktop computer. This cutting-edge adapter supports the latest Wi-Fi 6 technology, delivering speeds up to 1.8 Gbps and reducing latency for smoother online gaming, streaming, and downloading.
With its dual-band capability, you can enjoy a more stable and reliable connection by utilizing the 2.4 GHz band for everyday tasks and the 5 GHz band for bandwidth-intensive activities. Say goodbye to buffering and lag as you unleash the full potential of your network with this high-performance adapter.
The Archer TX20E also features Bluetooth 5.2 technology, enabling you to connect various devices, such as wireless headphones, keyboards, and mice, with ease. Experience faster and more stable data transfers while enjoying a seamless connection between your computer and Bluetooth-enabled devices.
Installing the Archer TX20E is a breeze with its PCI Express interface, ensuring compatibility with most desktop computers. The included magnetic antenna base allows for flexible placement and optimal signal reception, ensuring maximum coverage and minimizing dead spots.
Upgrade your desktop computer's wireless capabilities and enjoy unparalleled speed, stability, and versatility with the TP-Link Archer TX20E AX1800 Dual Band Wi-Fi 6 Bluetooth 5.2 PCI Express Adapter. Enhance your online experience and stay connected like never before.
Specifications
Dimensions:
4.76 x 3.09 x 0.82 in
(120.8 x 78.5 x 20.9 mm)
Antenna Type:
Two High-Gain Dual Band Antennas
Chipset:
Realtek Wi-Fi 6 Chipset
WIRELESS FEATURES:
Wireless Standards:
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.2
WLAN Signal Rate:
5 GHz
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity:
5 GHz :
11ax HE80: -57.0dBm
11ax HE40: -60.0dBm
11ax HE20: -63.0dBm
11ac VHT80: -59.5dBm
11ac VHT40: -62.5dBm
11ac VHT20: -67.5dBm
11n HT40: -69.5dBm
11n HT20: -72.5dBm
11a 54Mbps: -74.0dBm
11a 6Mbps: -94.5dBm
2.4GHz :
11ax HE40: -60.0dBm
11ax HE20: -63.0dBm
11n HT40: -69.5dBm
11n HT20: -72.5dBm
11g 54Mbps: -74.0dBm
11b 11Mbps: -88.0dBm
WLAN Transmit Power:
5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP)
WLAN Modes:
Infrastructure mode
Wireless Security:
Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology:
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
OTHERS:
Certification:
CE, FCC, RoHS
Package Contents:
Archer TX20E
Two High-Gain Dual Band Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD
System Requirements:
Windows 11/10(64-bit) only
Warranty:
3 Years Return to Base Warranty.
|
DESIGN
|
| Internal |
Yes |
| Plug and Play |
Yes |
| Product colour |
Black |
| Antenna |
Yes |
| Component for |
PC/Server |
| Operating modes |
Infrastructure mode |
| Transmitting power (FCC) |
27 dBm |
| Transmitting power (CE) |
23 dBm |
| Antenna design |
External |
NETWORKING
|
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Security algorithms |
64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Maximum data transfer rate |
1800 Mbit/s |
| Bluetooth version |
5.2 |
| Modulation |
16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Bluetooth |
Yes |
| Wi-Fi |
Yes |
| WLAN data transfer rates supported |
11,54,300,574,867,1200 Mbit/s |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage relative humidity (H-H) |
5 - 90% |
PACKAGING CONTENT
|
| Manual |
Y |
| Quick installation guide |
Yes |
| Mounting brackets included |
Yes |
| Resource CD |
Yes |
| Bluetooth header cable |
Yes |
PACKAGING DATA
|
| Package weight |
220 g |
| Package depth |
152.5 mm |
| Package height |
41.5 mm |
| Package width |
201.5 mm |
PORTS & INTERFACES
|
| Interface |
WLAN / Bluetooth |
| Connectivity technology |
Wireless |
| Host interface |
PCI Express |
SUSTAINABILITY
|
| Sustainability compliance |
Yes |
| Sustainability certificates |
CE, Federal Communications Commission (FCC), RoHS |
SYSTEM REQUIREMENTS
|
| Windows operating systems supported |
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64 |
WEIGHT & DIMENSIONS
|
| Height |
20.9 mm |
| Width |
120.8 mm |
| Depth |
78.5 mm |
