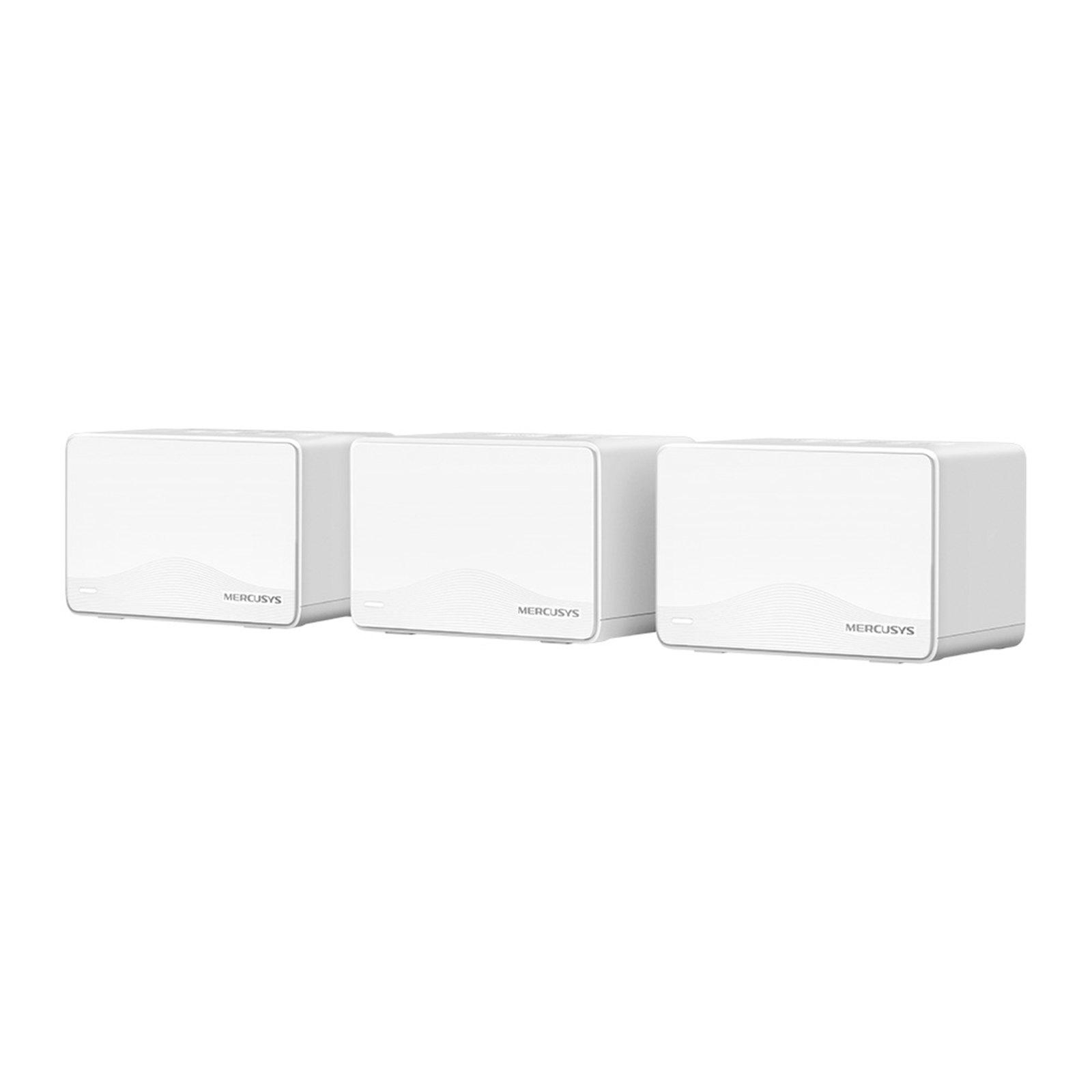

Mercusys Halo H25BE BE3600 Whole Home Mesh Wi-Fi 6 System (3 Pack)

NPMER-HALOH25BE
Key Specifications
Product TypeMesh System
Included Nodes3
Mesh SpeedBE3600
/productImages/80/NPMER-HALOH25BE.JPG
/productImages/80/210543.JPG
/productImages/80/210544.JPG
/productImages/80/210545.JPG
/productImages/80/210546.JPG
/productImages/80/210547.JPG
/productImages/80/210548.JPG
Manufacturer : MERCUSYS
EAN : 6957939002992
Manufacturer Part Code : Halo H25BE(3-pack)
Weight : 1.69 kg
Login For Pricing

Key Specifications
Product TypeMesh System
Included Nodes3
Mesh SpeedBE3600
Manufacturer :
MERCUSYS

EAN :
6957939002992

Manufacturer Part Code :
Halo H25BE(3-pack)

Weight :
1.69 kg
Recommended Products
1328Homeplugs
See details
1363Printers
See details

Mercusys BE3600 Halo H25BE Whole Home Mesh Wi-Fi 7 System

Blazing-Fast 3.6 Gbps Dual-Band Speeds
Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.

Newest Wi-Fi 7
Armed with the 4K-QAM, MLO, Multi-RUs, and other features that Wi-Fi 7 offers, your network will arrive with a jaw-dropping performance.

Seamless Roaming for a Smooth Network Experience
No more sudden signal drops or lagging Wi-Fi when you're walking around the house.

Multi-Link Operation (MLO) Increases throughput, reduces latency, and improves reliability for emerging applications.

Full Gigabit Ports
3x Gigabit ports per Halo unit for lightning-fast wired connections.

Whole Home Multi-Gigabit Coverage
Halo mesh units work as a unified network to fill your home up to 7,000 ft2 / 650 m2 (3-pack) ; 5,000 ft² / 460 m² (2-pack) .

Specifications

Wireless

Wireless Standards
5 GHz: IEEE 802.11b/g/n/ac/ax/be mixed
2.4 GHz: IEEE 802.11b/g/n/ax/be mixed

Signal Rate
2880 Mbps at 5 GHz
688 Mbps at 2.4 GHz

Reception Sensitivity
2.4G: -97dBm
5G: -98.5dBm

Transmission Power
5G band1 band2 < 23dBm
5G band3 < 30dBm
2.4G band < 20dBm

Wireless Security
WPA-PSK/WPA2-PSK/WPA3-SAE

Mesh protocol
802.11k/v/r

Software

Operation Modes
Router, Access Point

Quality of Service
WMM

WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management
Local Management, Remote Management, Multi-Managers

DHCP
Server, Client

Firewall Security
SPI Firewall

Protocols
Supports IPv4 and IPv6

Guest Network
2.4 GHz Guest Network
5 GHz Guest Network

Easy Setup and Use
Network management has never been easier with the MERCUSYS app.
*Please note that the Halo H series and S series cannot work together.

Hardware

Dimensions (W X D X H)
5 x 3.2 x 3.3 in (128 x 81.3 x 83.7 mm))

Interfaces
3x 1 Gbps Ports (WAN/LAN auto-sensing)

Button
Reset button

Others Package Contents
3-pack
3x Halo H25BE Units
1x RJ45 Ethernet Cable
3x Power Adapters
Quick Installation Guide

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
Manufacturer's Website:
www.mercusys.com
Warranty:
3 Year Return To Base Warranty

Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our Returns Policy for more information.
DESIGN
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90%
Antenna type Internal
LED indicators Yes
Product colour White
Number of devices supported 150
Operating temperature (T-T) Yes
Reset button Yes
Product type Mesh system
Maximum coverage 650 m²
FEATURES
DHCP client Yes
DHCP server Yes
Parental control Yes
Number of guest networks (5 GHz) 1
Number of guest networks (2.4 GHz) 1
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90%
PACKAGING CONTENT
AC adapter included Yes
Ethernet cable Yes
Number of products included 2 pc(s)
Number of units included 2 pc(s)
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports 3
DC-in jack Yes
Ethernet WAN Yes
PROTOCOLS
DHCP client Yes
DHCP server Yes
WEIGHT & DIMENSIONS
Height 83.7 mm
Width 128 mm
Depth 81.3 mm
WIRELESS LAN FEATURES
Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Security algorithms WPA-PSK, WPA2-PSK, WPA3-SAE
Networking standards IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Guest access Yes
Static IP Yes
Wi-Fi band Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max) 2880 Mbit/s
WLAN data transfer rate (first band) 2880 Mbit/s
WLAN data transfer rate (second band) 688 Mbit/s
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Point-to-point protocol over Ethernet (PPPoE) Yes
Dynamic IP Yes
Number of guest networks (5 GHz) 1
Number of guest networks (2.4 GHz) 1
