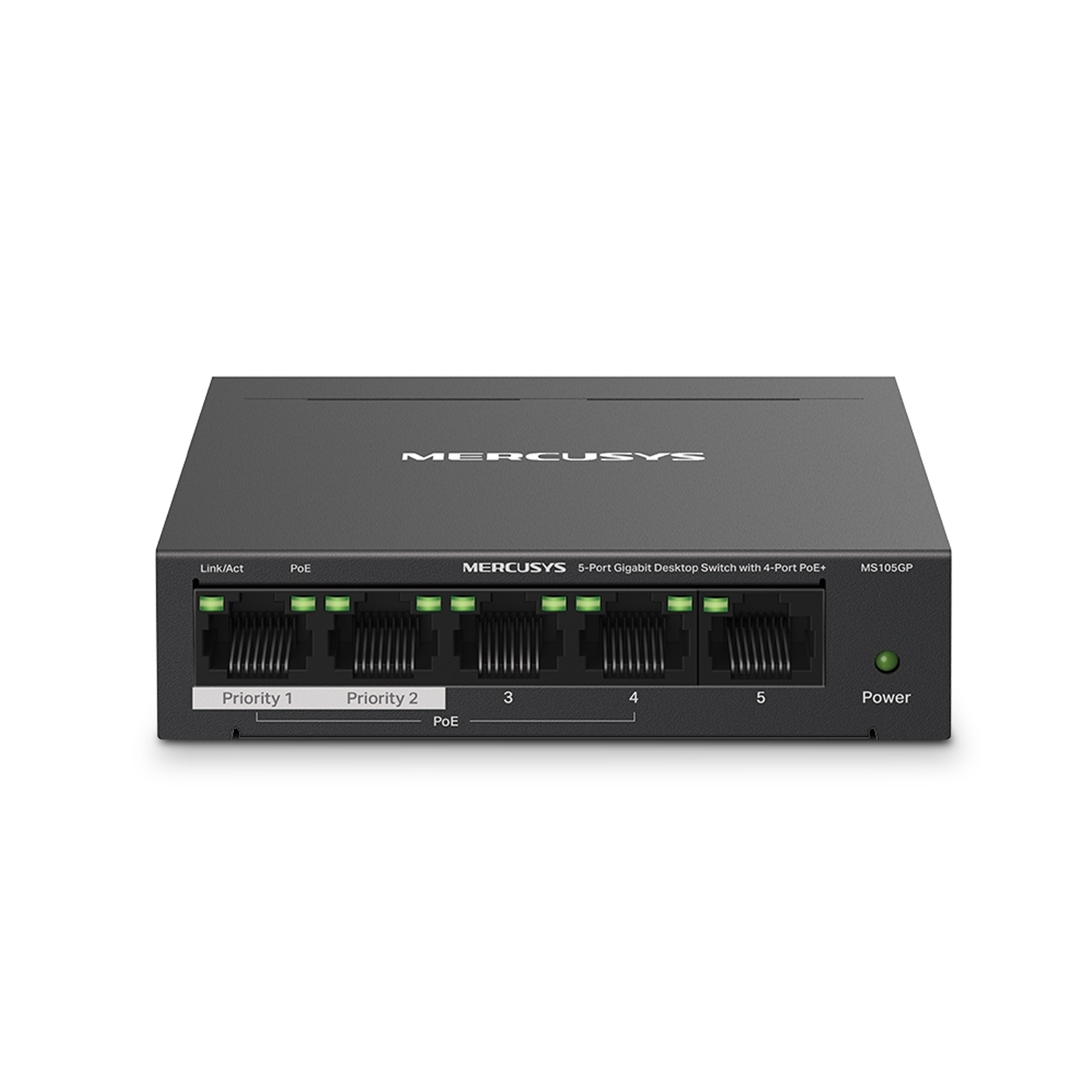

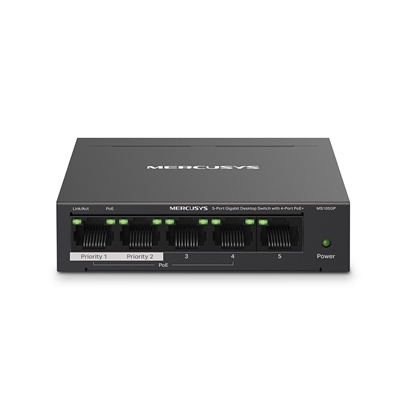

Mercusys MS105GP 5-Port Gigabit Desktop Switch

Full Gigabit Ports
5x 10/100/1000 Mbps RJ45 ports

Two Cables in One
With four PoE ports, transfers data and power on one single cable

High Power PoE
Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports

Long-Range up to 250 m
Increases PoE transmission distance to 250 m by Extend Mode

Isolation Mode
One click to divide traffic for specific ports for stability and security

Compliant with Powered Devices
Works with IEEE 802.3af/at compliant PDs

Durable Metal Casing
Allows for efficient heat dissipation and long network life

Plug and Play
Simple to use and saves time and effort

Specifications

Hardware

Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD

Dimensions
99.8*98*25mm

PoE Ports
RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W

Interfaces
5x 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply
External Power Adapter (Output: 53.5V/1.31A)

Installation
Desktop
Wall Mount

Data Rates
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex

Jumbo Frame
9 KB

LED
Ethernet Ports (1, 2, 3, 4, 5), Power

MAC Address Table
2K

Max Power Consumption
3.13W(220 V / 50 Hz, no PD connected)
75.15W(220 V / 50 Hz, with 65W PD connected)

Max Heat Dissipation
10.64 BTH/h (no PD connected)
255.51 BTH/h(with 65W PD connected)

Software
Transfer Method
Store and Forward

Management
Plug and Play

Advanced Features
802.3x Flow Control
IGMP Snooping V1/V2/V3
Isolation Mode
Extend Mode

Others
Package Contents
5-Port Gigabit Desktop Switch with 4-Port PoE(MS105GP)
Power Adapter
Quick Installation Guide

Environment
Operating Temperature: 0C-40C (32F-104F)
Storage Temperature: -40C-70C (-40F-158F)
Operating Humidity: 10%-90% RH non-condensing
Storage Humidity: 5%-95% RH non-condensing

Manufacturer's Website:

www.mercusys.com

Warranty:

3 Year Return To Base Warranty

Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our Returns Policy for more information.

CERTIFICATION
Certification	CE, RoHS
DATA TRANSMISSION
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Jumbo frames support	Yes
Jumbo frames	9
DESIGN
Certification	CE, RoHS
Rack mounting	No
LED indicators	Yes
Wall mountable	Yes
Product colour	Black
Stackable	No
Housing material	Metal
ENERGY MANAGEMENT
Power consumption (typical)	3.13 W
Power source	DC
AC input frequency	50 Hz
AC input voltage	220 V
Power consumption (max)	75.15 W
Power supply included	Yes
NETWORKING
Full duplex	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Half duplex	Yes
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95%
OPTICAL FIBER
Transmission distance (max)	0.1 km
PACKAGING CONTENT
Cables included	AC
Quick start guide	Yes
PACKAGING DATA
Cables included	AC
Quick start guide	Yes
PORTS & INTERFACES
Installed SFP+ modules quantity	0
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	5
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	65 W
WEIGHT & DIMENSIONS
Height	25 mm
Width	99.8 mm
Depth	98 mm
